Phanteks Eclipse P600s User Manual

31
SATA
REQUIRES:
2x
A
A
B
B
MOVE:
1x
1x
The GPU Mount has two mounting
positions. Position A allows for better
air cooling and 3-slot GPU cards.

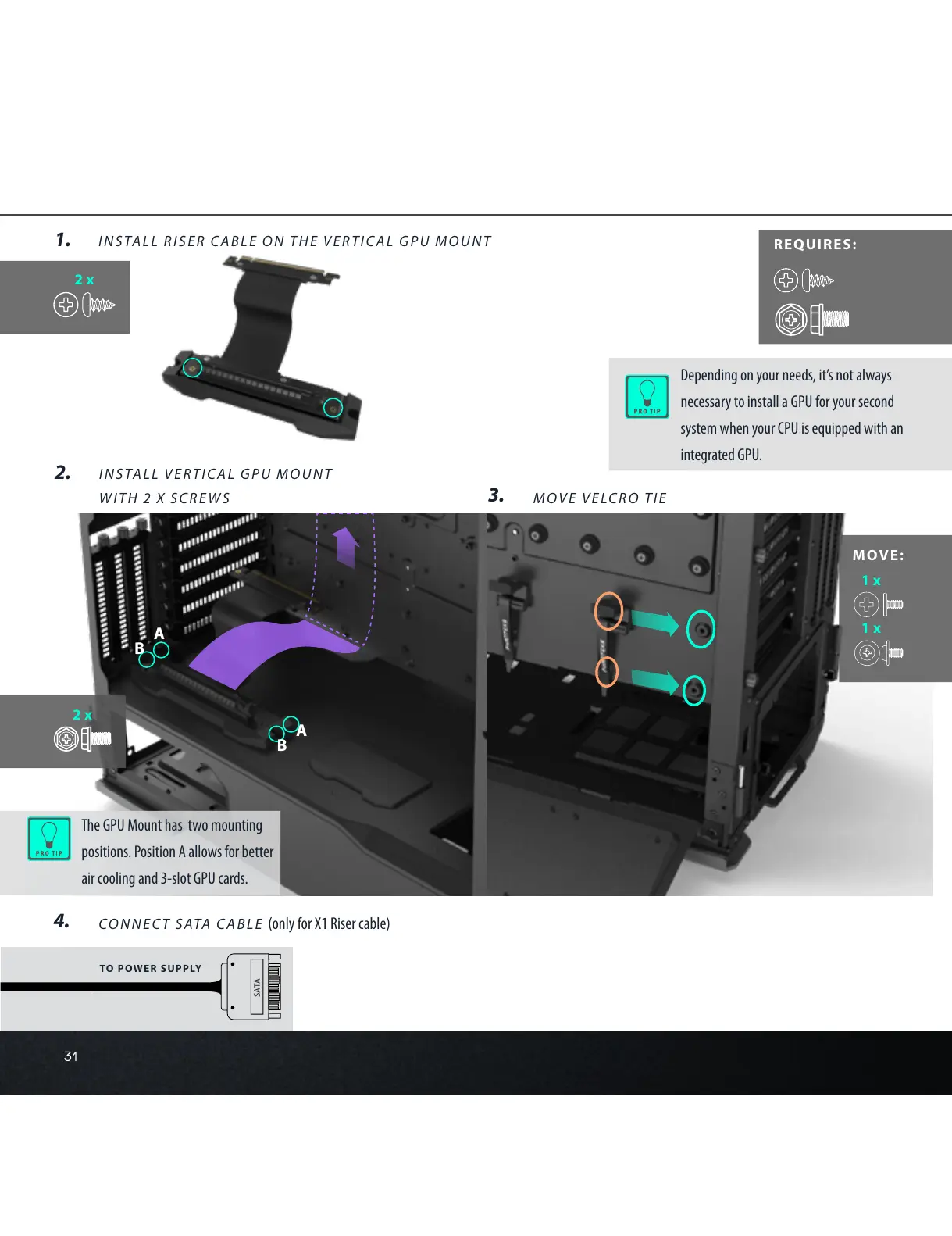

1.
INSTALL RISER CABLE ON THE VERTICAL GPU MOUNT
2.
4.
INSTALL VERTICAL GPU MOUNT
WITH 2 X SCREWS
CONNECT SATA CABLE
(only for X1 Riser cable)
3.
MOVE VELCRO TIE
Depending on your needs, it’s not always
necessary to install a GPU for your second
system when your CPU is equipped with an
integrated GPU.
2x
TO POWER SUPPLY
All manuals and user guides at all-guides.com

Phanteks Eclipse P600s Specifications

General

Form Factor	Mid Tower
Dimensions	240 mm x 520 mm x 510 mm (W x H x D)
Material	Steel, Tempered Glass, Plastic
Radiator Support	Front: Up to 360mm, Top: Up to 360mm, Rear: Up to 140mm
Maximum GPU Length	435 mm
Maximum CPU Cooler Height	190 mm
Dust Filters	Front, Top, Bottom
Motherboard Support	ATX, Micro-ATX, Mini-ITX
Expansion Slots	7
Front I/O Ports	1x USB 3.1 Gen 2 Type C, 2x USB 3.0, Audio In/Out, Power Button, Reset Button
Cooling Support	Front: 3 x 120mm or 2 x 140mm, Top: 3 x 120mm or 2 x 140mm, Rear: 1 x 120mm or 140mm
Pre-installed Fans	Front: 2x 140mm, Rear: 1x 140mm
Weight	13.5 kg
