2.2.2 DC Power Supply Cable Fabrication
DC power supply cable is the cable which connect the AxN Size5 Drive with the DC power supply.
This manual only mention the cable fabrication of AxN drive side. The power supply side should be
fabricated based on the requirement of the DC power supply

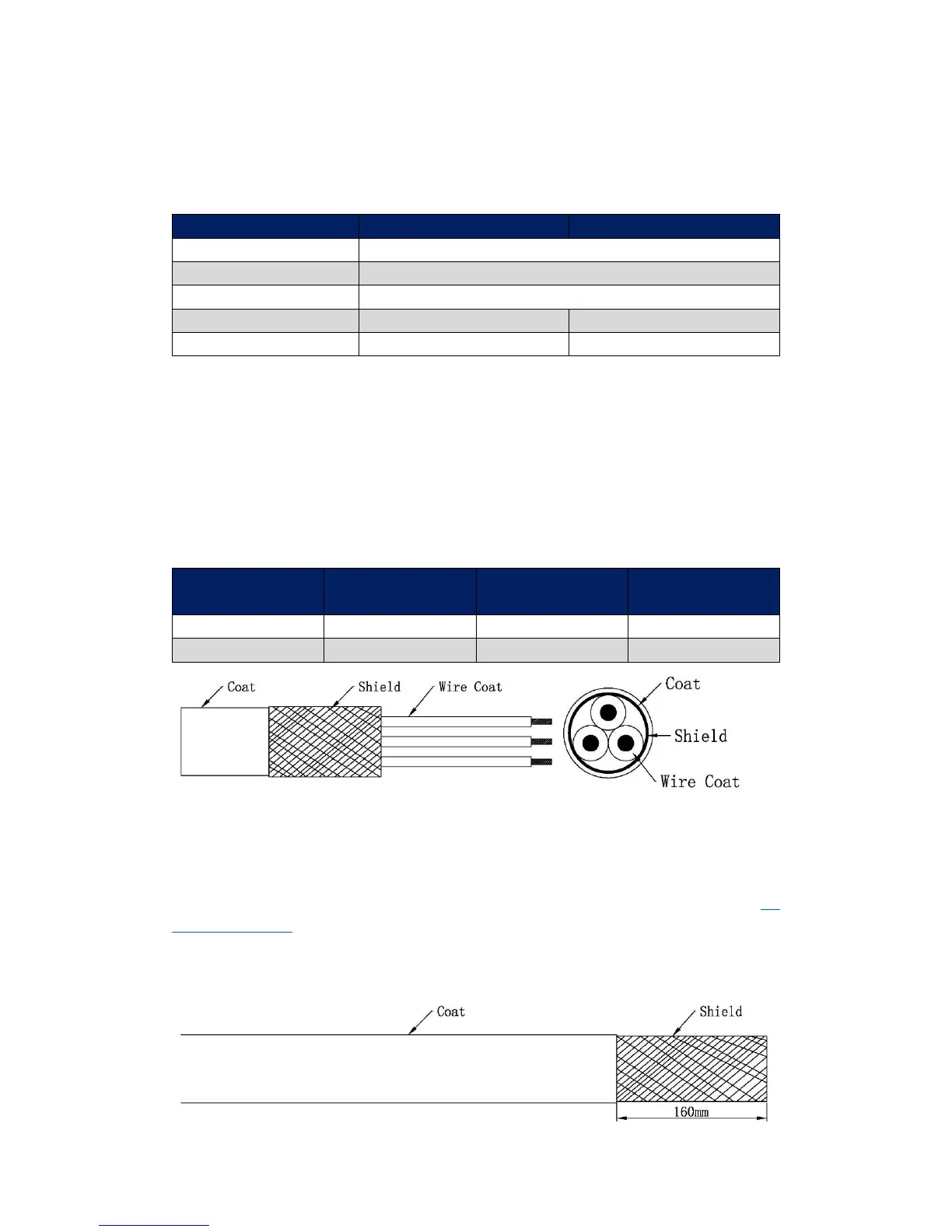

Step 1: Cable Selection
AxN Size5 drive must use a 3 wire cable with shield as its DC power supply cable. Refer to the
table below to select the appropriate cable:
Step 2: Cable Length Measurement
The AC power supply cable is used to connect the output of the DC power supply with the Power
Input Port (P1) of AxN Size5 Drive. To minimize the interference, the DC power supply must be
installed in close proximity to AxN Size5 Drive as much as possible. But, the distance between two
devices should also comply with the Installation Space Regulation of AxN Size5 Drive (Refer to 1.5
Installation Spacing).
Step 3: Strip the Cable Coat
Strip the outside coat of the DC power supply cable for 160mm and reveal the inside shield.
