3.1.2 Auxiliary Power Supply Cable Fabrication
This manual only mention the fabrication of auxiliary power supply port on AxN drive side.
Step 1: Cable Selection
Select a 2 mm
2
(14 AWG) two wires cable as drive’s auxiliary power supply cable.
Step 2: Cable Length Measurement
Measure the distance between drive and power supply then determine the suitable cable length.
NOTE: the distance between two devices should comply with the Installation Space Regulation of
AxN Size5 Drive (Refer to 1.5 Installation Spacing).

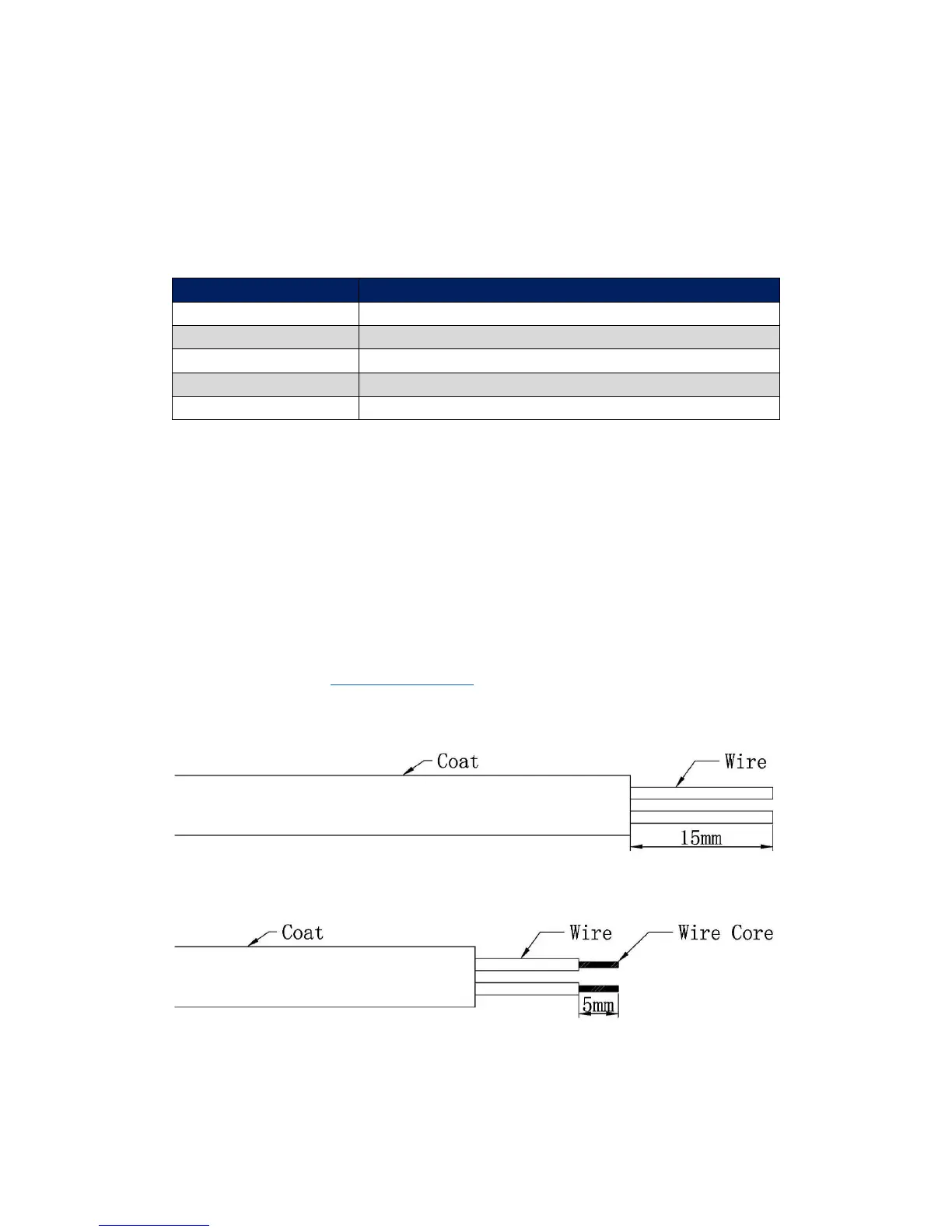

Step 3: Strip the Cable Coat
Strip the outside coat of the auxiliary power supply cable for 15mm and reveal the wires.
Step 4: Make DC+ Wire and DC- Wire
Mark one wire as DC+ and another as DC-, then strip wires’ coat for 5mm.
Step 5: Check and Label
Check every wire’s conductivity and then label them.
