3.2 System Relay (R1)
Port Location

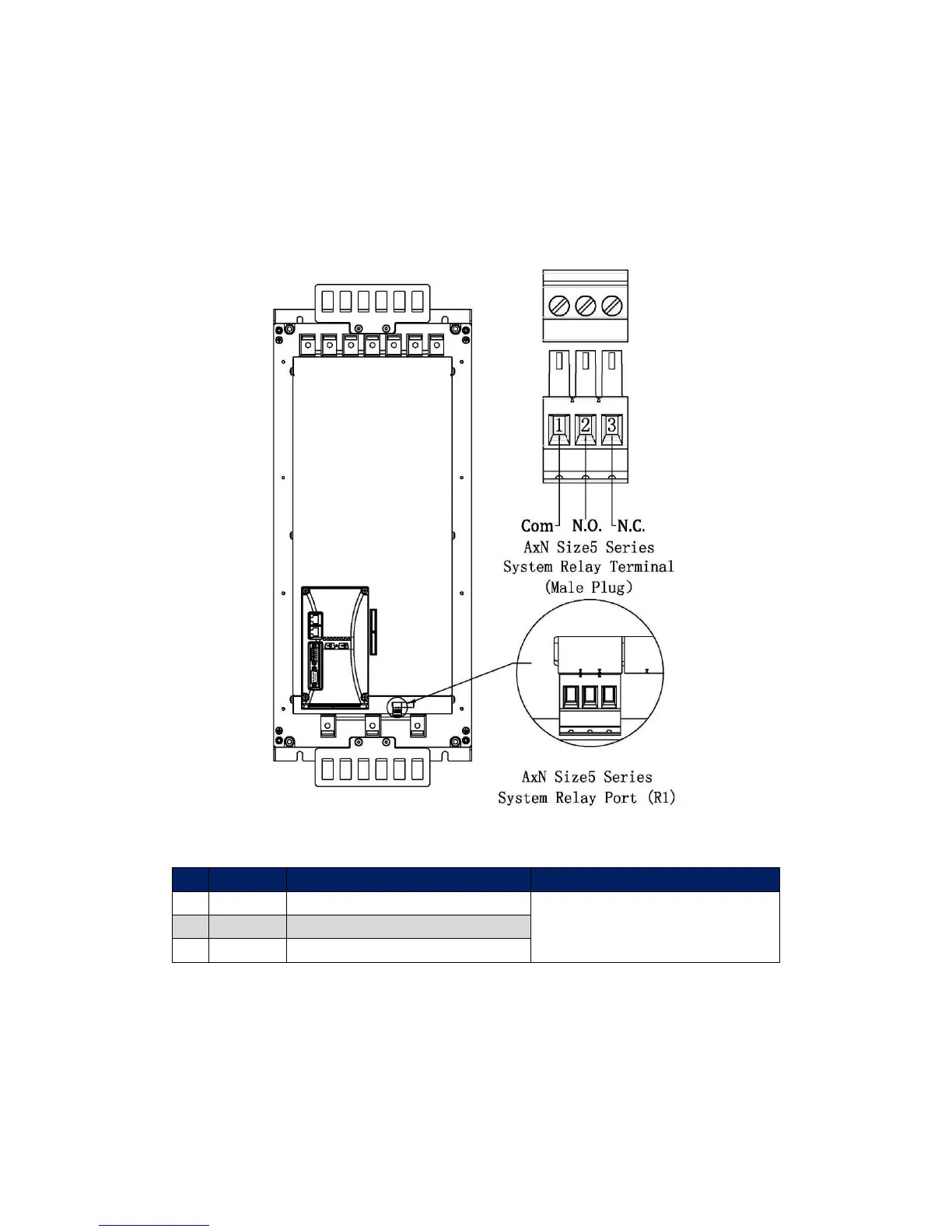

AxN Size5 Drive’s System Relay Port (Female Plug, 3Pin) is on the right bottom of the drive. And a
corresponding System Relay Terminal (Male Plug, 3Pin) is provided in the accessories. Refer to the
following figures for exact location.
Terminal Configuration
Pin
Name
Function
Description
1
Com
Common relay contact
To be used as drive system OK signal
2
N.O.
Relay normally open contact
3
N.C.
Relay normally closed contact
Diagram
AxN Series Drive use a relay to indicate the status. When Drive is power off or system is not ready,
the circuit is connected between N.C. (Normally Closed) and Com. In the meantime, the circuit is
disconnect between N.O. (Normally Open) and Com, illustrated as below.
