4.5 EtherCAT IN/OUT——EtherCAT Port
AxN Series Drive supports EtherCAT fieldbus protocol. And can be connected to a EtherCAT network
through two connectors: EtherCAT IN and EtherCAT OUT.
Port Location

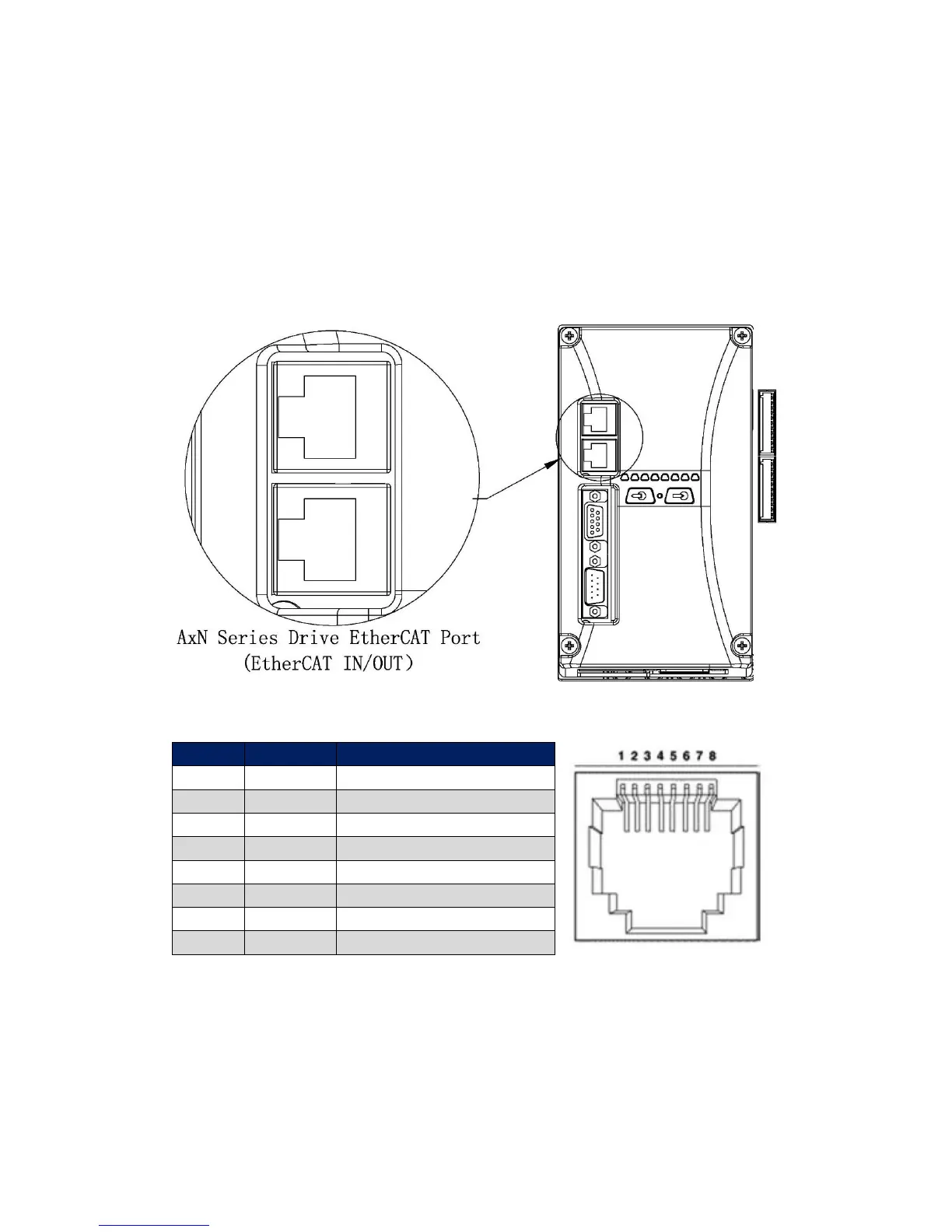

AxN Series Drive’s EtherCAT Port is on the upside of drive‘s communication port panel, formed by
two RJ45 100Base-TX female plug. Refer to the following figure for exact location.
Pin Assignment
Pin
Name
Function
1
TX +
Transmit Data +
2
TX -
Transmit Data -
3
RX +
Receive Data +
4
---
---
5
---
---
6
RX -
Receive Data -
7
---
---
8
---
---
