4.7 U3/U4 —— Insulated User Connectors
Port Location
AxN Series Drive’s Insulated User Connectors (Male Plug, 2 × 12 pin) are on the right of the

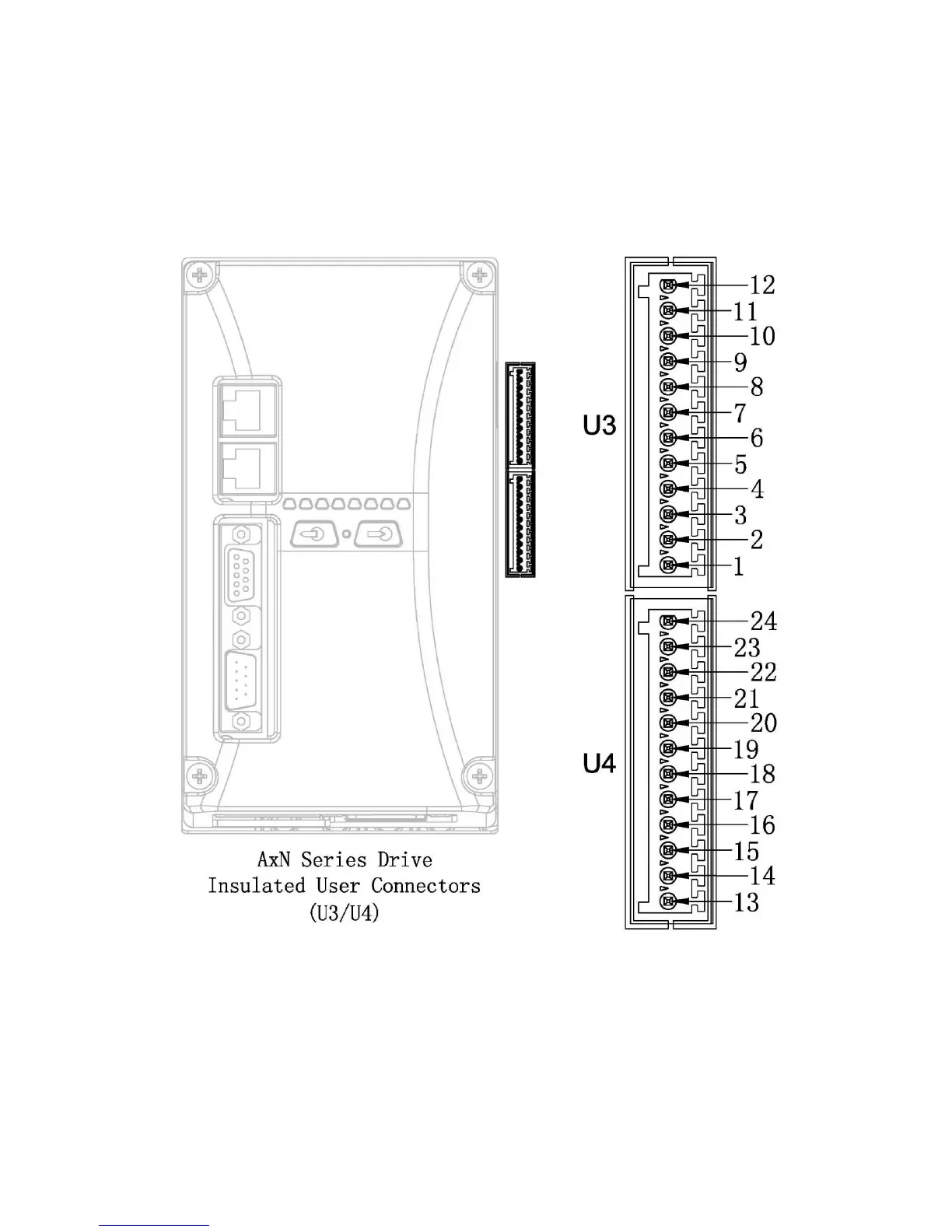

Communication Port Panel. Refer to the following figure for exact location.
