Phase AxN series - Communication Port

36
4 Communication Port

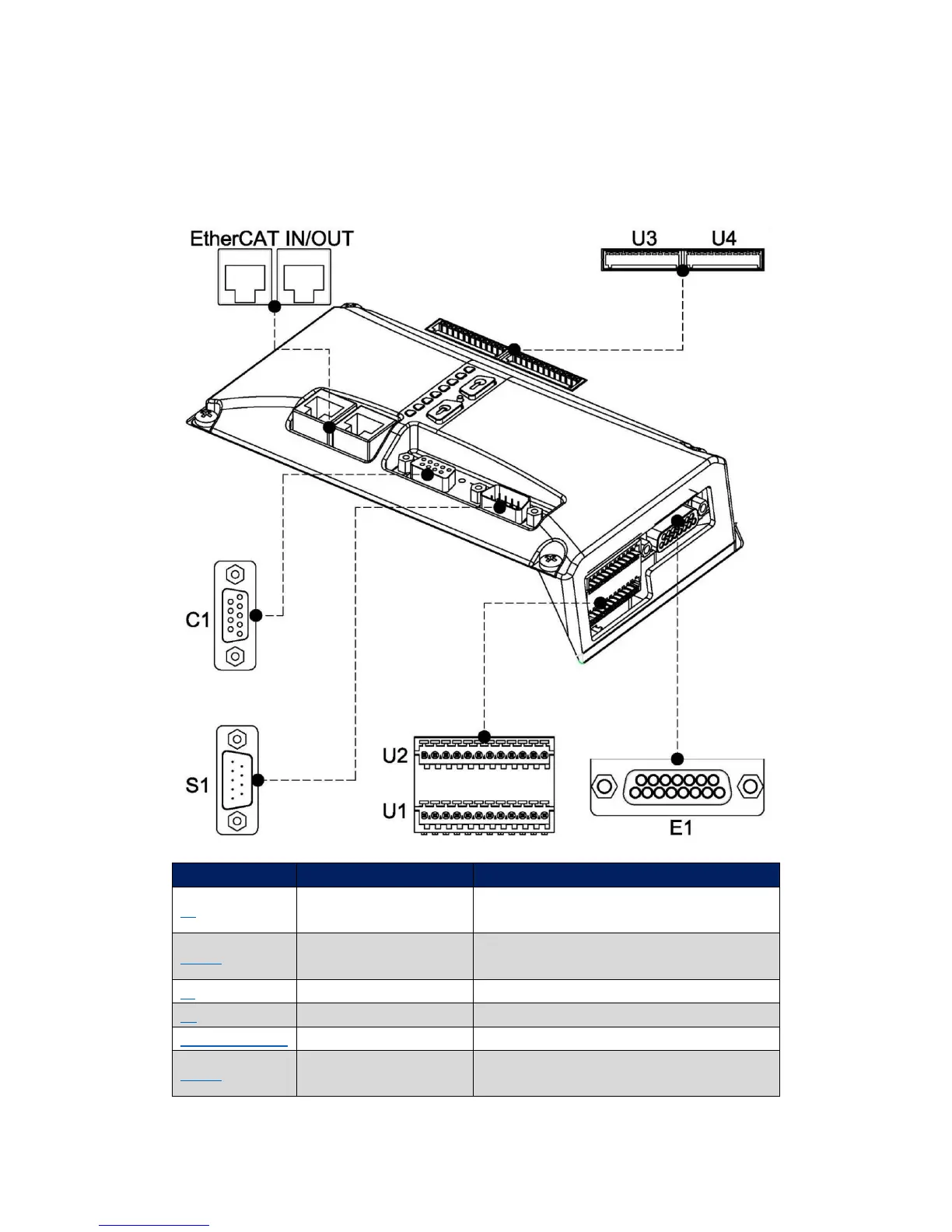

4.1 Overview of Communication Port Panel
Name
Function
Description
E1
Encoder Connector
SinCos, Endat, Digital Incremental with Hall,
Resolver and Hiperface
U1/U2
User Connectors
4 Analog Inputs, 2 Analog Outputs;
8 Digital Inputs, 4 Digital Outputs
S1
Serial Bus Connector
RS232, RS422 and RS485 / Secondary CAN
C1
CAN Connector
Main CAN / Auxiliary Encoder
EtherCAT IN/OUT
EtherCAT Connector
RJ45 100Base-TX
U3/U4
Insolated User
Connectors (Optional)
Insolated: 3 Analog Inputs, 2 Analog Outputs;
8 Digital Inputs, 2 Digital Outputs. Optional
