16

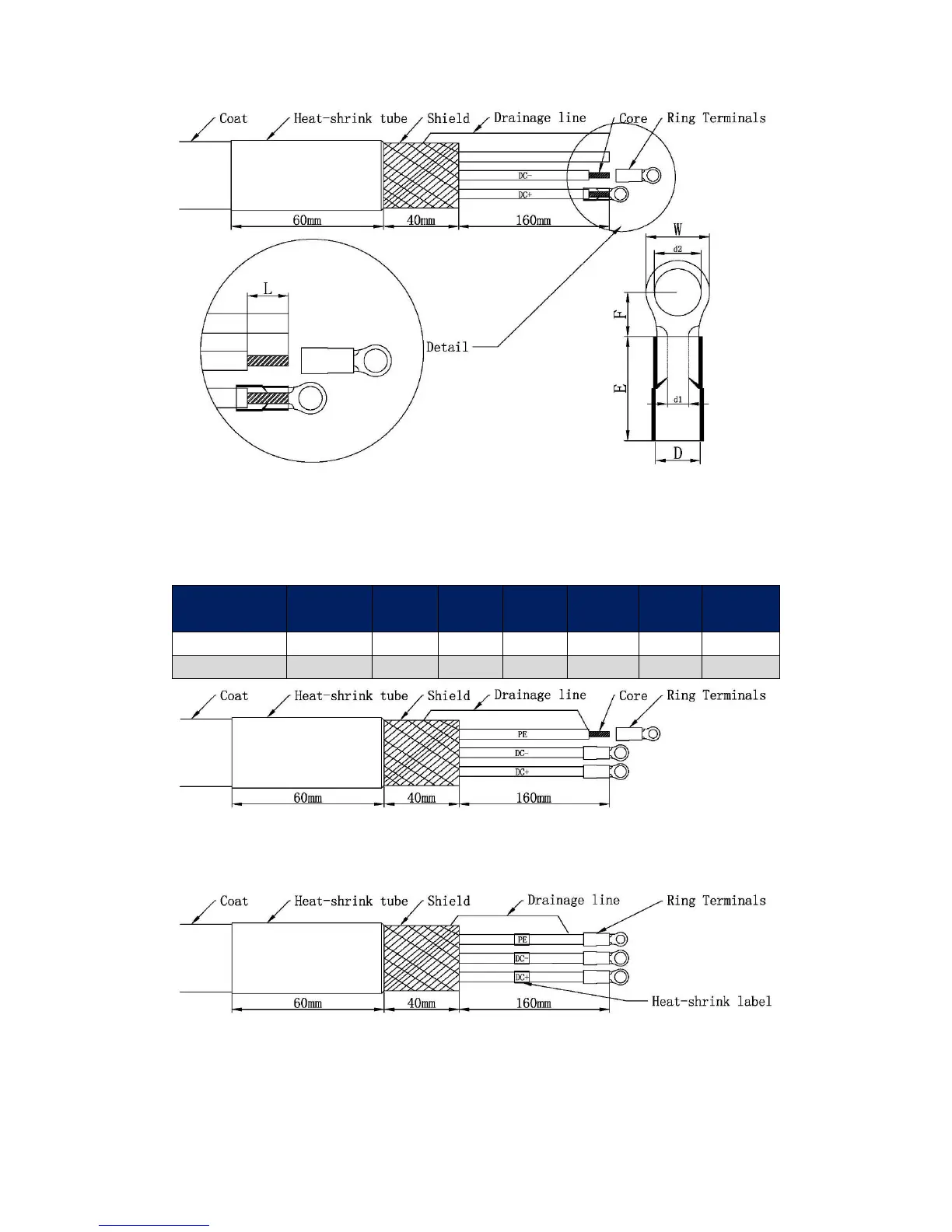

Step 7: Connect the PE wire with Shield
Use the same method to make the remaining wire as the PE wire. Then crimp the PE wire into the
Ring Terminal along with the drainage line. Refer to the following table to select the appropriate
terminal:
AxN Size5
Ring
Terminals
d2(mm)
W(mm)
F(mm)
E(mm)
D(mm)
d1(mm)
AxN 90.150.4
RNYBS22-6
6.4
12.2
15.1
24
13
7.7
AxN 110.200.4
RNYBS22-6
6.4
12.2
15.1
24
13
7.7
Step 8: Check and Mark
Check every wire and the connection between shield and PE wire, then label each wire.
