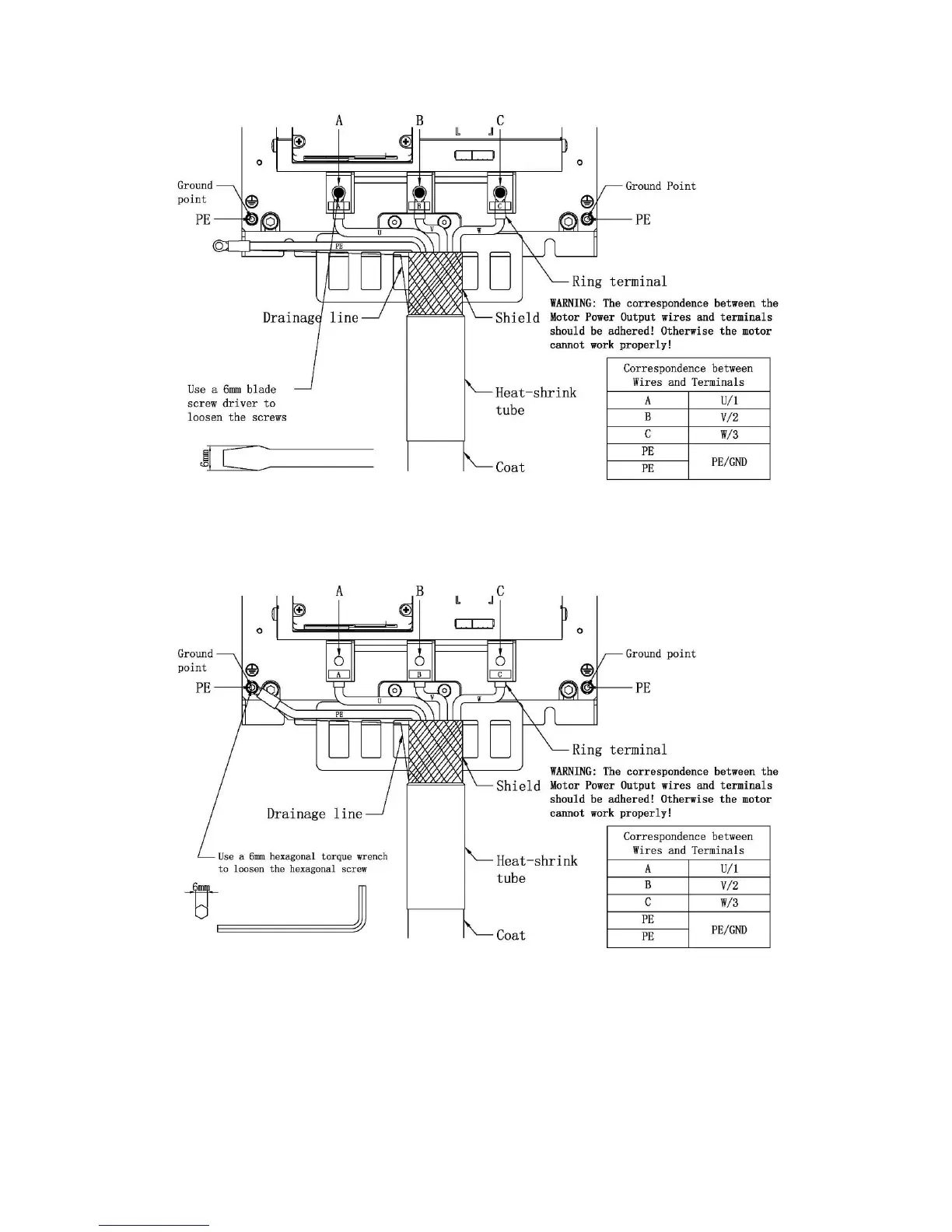

Step 3: Install Grounding Wire
Use a 6mm hexagonal torque wrench to loosen the hexagonal screw on either PE Terminal which
is on the drive’s body. Fix the grounding wire on the PE terminal.
Step 4: Cable Fixing
Use a hose clamp to fix the cable on the cable support. Make sure that the cable shield has a large-
area contact against the cable support, so that they can together be grounded through drive
housing.
