Assembling the XF
IQ4 Camera System

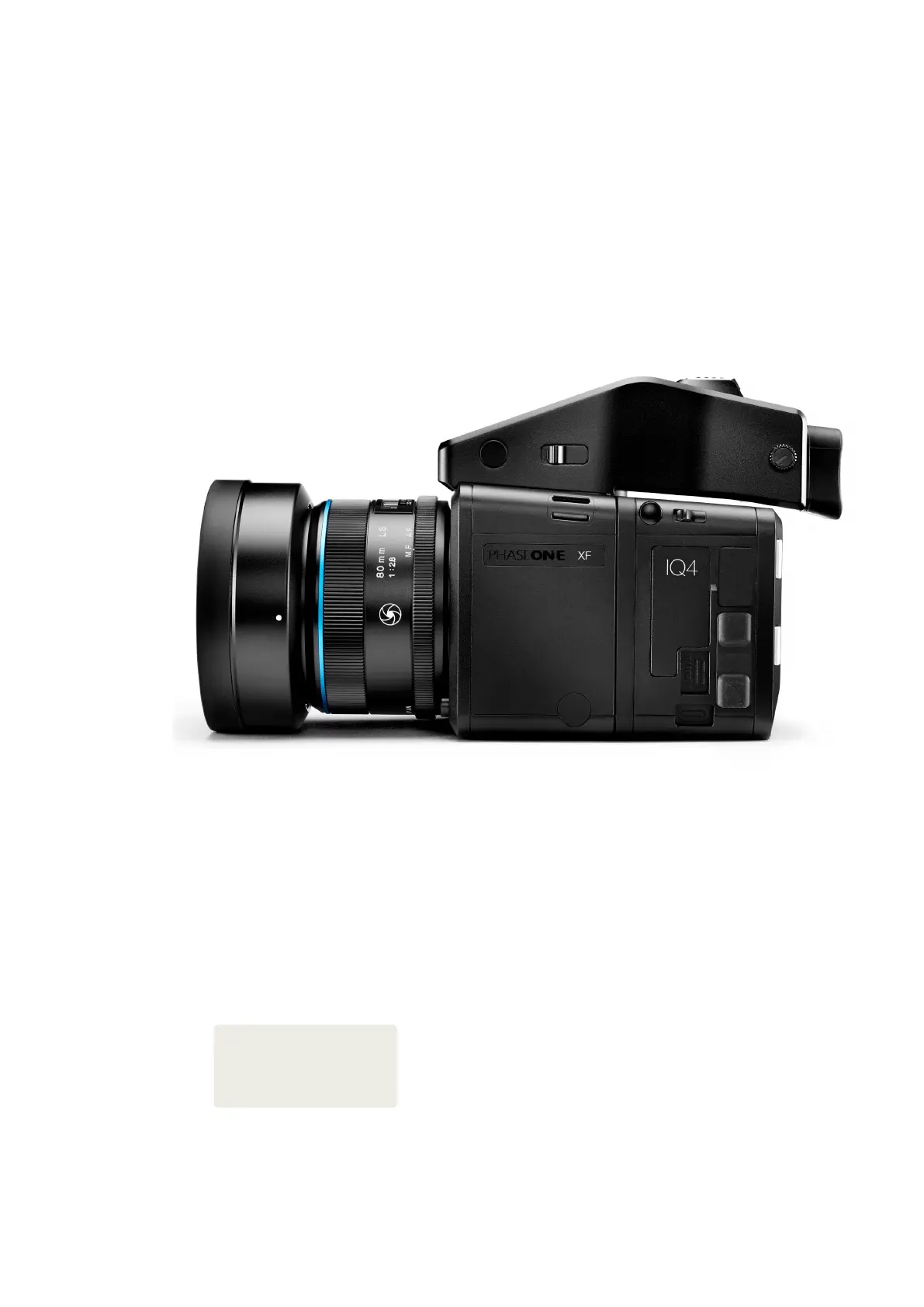

Digital Back and Camera Body Modularity
Depending on how you purchased the system, the XF Camera System may
be supplied ready for use with the IQ4 Digital Back already attached, and
consequently, there is no need to remove it prior to capture. If, however, you
would like to do so, for example, to use it with a technical camera, please
follow the instructions below.
Removing the IQ4 from the XF Camera Body
1. Turn the Camera System o and remove any interface cables from the
Digital Back.
2. Push the IQ4 lock slider toward the XF Camera Body while
simultaneously pressing the IQ4 release button. Note that the lock slider
acts as a safety catch.
3. Tilt the IQ4 slightly backward from the top and gently lift the IQ4 o the
XF Camera’s guide rail.
Attaching the IQ4 to the XF Camera Body
1. Gently place the mounting plate of the IQ4 onto the bottom guide rail
of the XF Camera Body.
2. Push the back lock slider and press the release button simultaneously
to retract the back’s upper locking mechanism, and then push the IQ4
firmly onto the camera’s twin catches, using the bottom guide rail as a
pivot.
NOTE:
After removing the IQ4 from the XF
Camera Body, remember to protect
the sensor by reattaching cover, and to
attach the back port cover on the XF to
protect the camera from dust.
