ROUTINE MAINTENANCE
Replacement of fluorescent lamp
Follow the procedure below when replacing a fluorescent lamp. The fluorescent lamp is located
horizontally in the upper front of the chamber. [page 10]
Also replace the glow starter whenever replacing the fluorescent lamp. [page 30]
1. Turn off the power switch and then disconnect the power
supply plug.
Before turning off the power switch, turn off the light
switch if the light switch is on.
2. Move the storage items on the top drawer.
3. Hold adjacent to the socket and pull the fluorescent
lamp downwards with the lamp cover to remove the
fluorescent lamp together with the wiring. [Fig. 1]
4. After removing the water-proof cover, remove the socket
with the wiring on the both sides of the lamp cover. [Fig. 2]
5. Take out the fluorescent lamp from the lamp cover and
insert a new fluorescent lamp in it.
6. Replace the socket with the wiring and the water-proof
cover on the both sides of the lamp cover.
7. Fix the lamp cover having a fluorescent lamp to the
intended location.
8. Replace the storage items to the top drawer.
9. Connect the power supply plug to the outlet and turn on
the power switch.
10. Turn on the light switch to check the fluorescent lamp
is on.

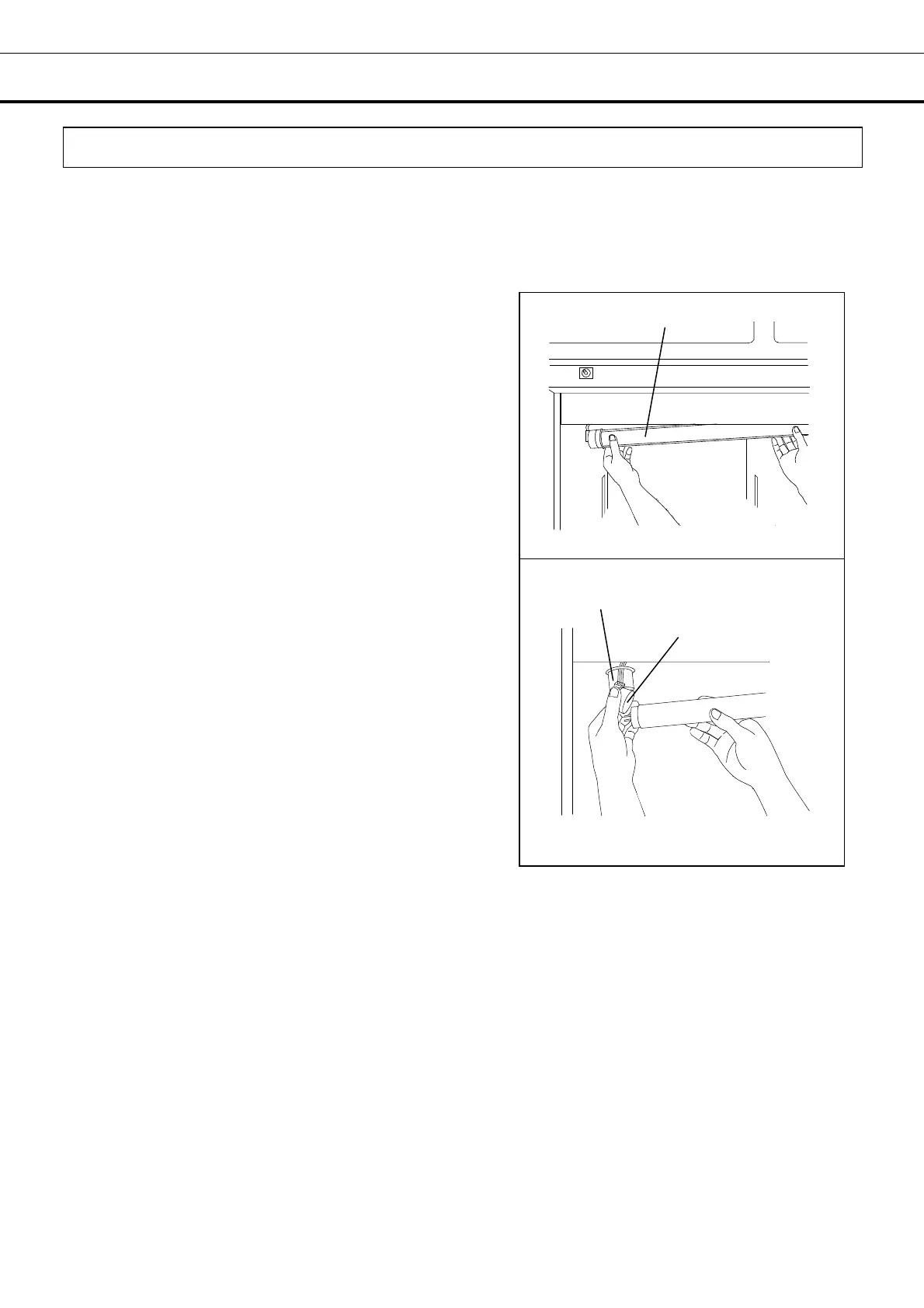

Fig. 2
