Mechanical Instructions
EN 13LCD AUO 2K7 4.

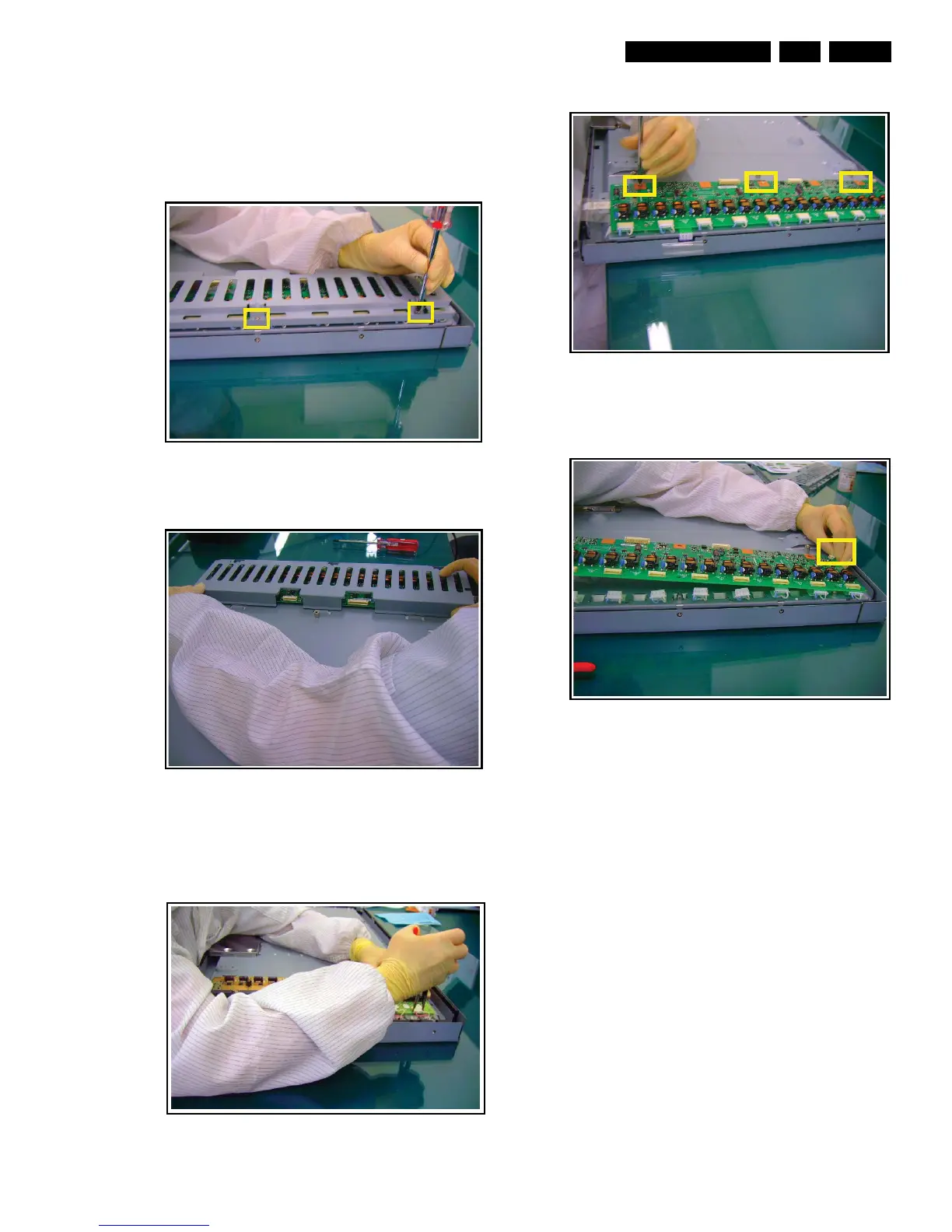

4.5.2 Inverter Board
Disassembly
1. Place the panel face down on the foam bars, and locate the
Inverter board.
2. Remove the cover screws, and remove the cover.
Figure 4-37 Remove Inverter cover screws
Figure 4-38 Remove Inverter cover
3. Unplug the lamp connectors on the inverter. Start at the
top, and be careful not to pull and drag the wires. The use
of a pair of pliers can be helpful.
Figure 4-39 Remove Inverter connectors
4. Remove the Inverter board as shown in figure below.
Figure 4-40 Remove Inverter board
5. Unplug connector CN2 on the Inverter board.
Figure 4-41 Remove connector CN2
Reassembly
To reassemble, perform all processes in reverse order.
H_16900_031.eps
250707
H_16900_032.eps
250707
H_16900_010.eps
110707
H_16900_033.eps
250707
H_16900_034.eps
250707
