Philips 19PFL5522D - Technical Specifications, Connections, and Chassis Overview

Technical Specifications, Connections, and Chassis Overview
EN 2 LCD LPL 2K71.
1. Technical Specifications, Connections, and Chassis Overview
Index of this chapter:
1.1 Introduction
1.2 General
1.3 Specifications
Note:
• Specifications are indicative (subject to change).
1.1 Introduction
In this Service Manual you will find all necessary information to
perform the Board Level Repair (= board swap) scenario on
LCD panels. These LCD repair manuals are created per brand,
and they will contain all necessary information for the different
panels used in Philips flat LCD TVs.
1.2 General

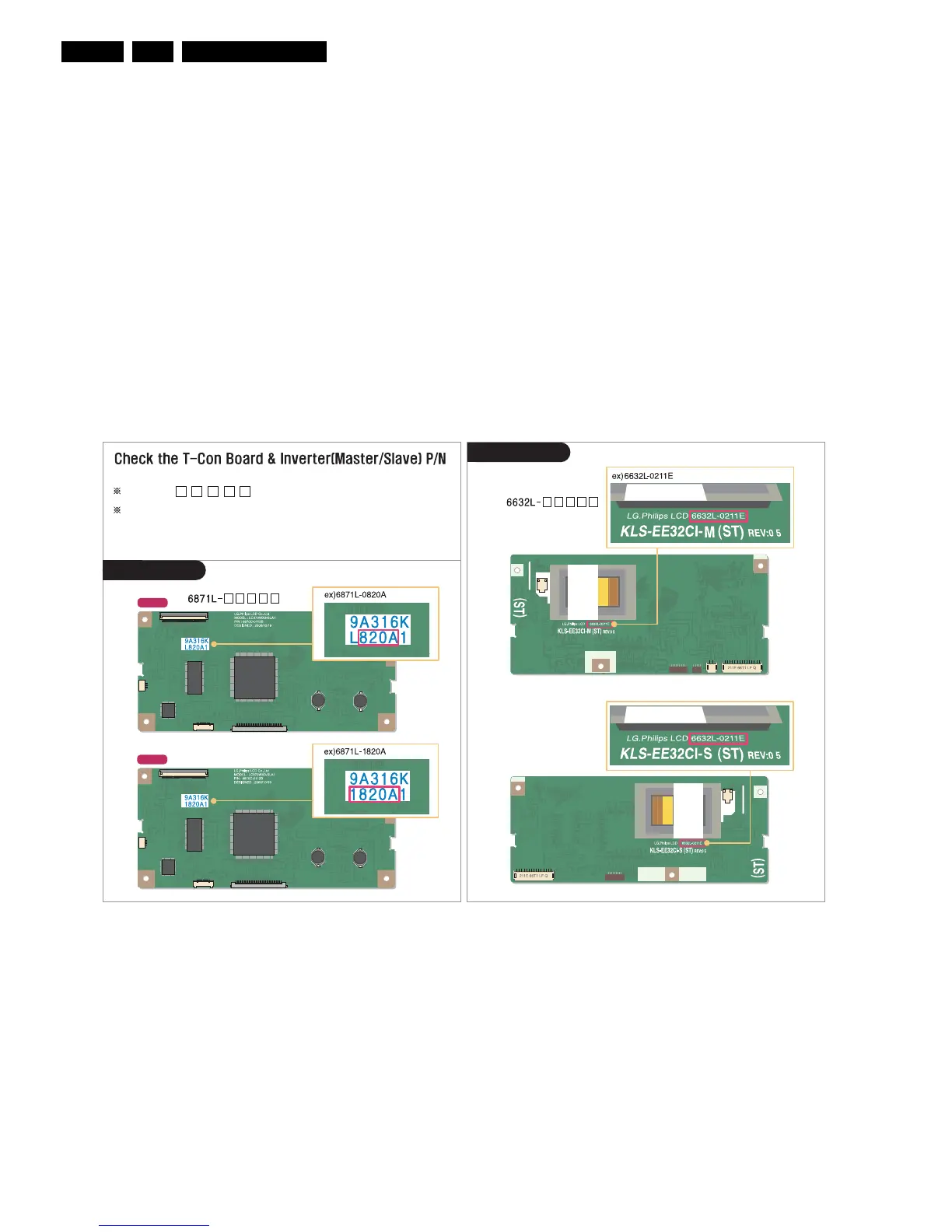

Figure 1-1 LPL board labelling
1.3 Specifications
Below find attached the data sheets of the different LCD
panels. Click on the “model number” to open.
• Model LC260WX2
• Model LC320W01
• Model LC320WX2
• Model LC420WU2
• Model LC420WX2
• Model LC420WX3
• Model LC420WX5
• Model LC470WU1
• Model LC470WU4
H_16890_024.eps
230507
Number of order progress.
The Marking position could be different each model of T-Con or inverter P/N.
This picture is different from origin model.
Please Use it only as a reference.
Case 1
Case 2
(Master)
(Slave)
T-CON Board
Inverter
