Mechanical Instructions
EN 6 LCD LPL 2K74.
4.2 Model LC260WX2
4.2.1 Control Board (T-CON Board)

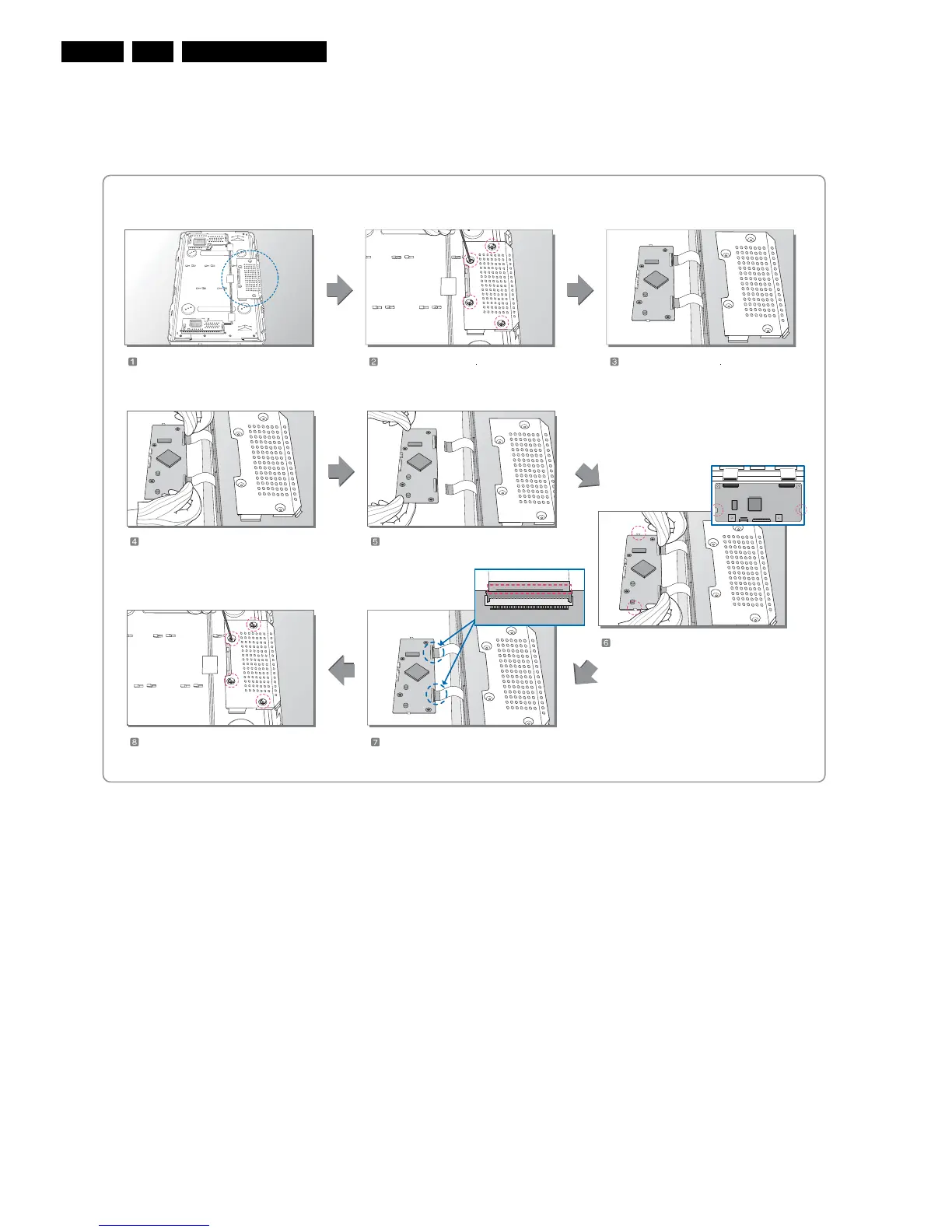

Figure 4-3 Replacement instructions T-CON board
MODEL: LC260WX2-SLB2
Separate the FFC(60pin). Separate the T-CON Board.
Attach the Cover Shield and
Assemble the Screw(4EA).
Check the FFC(60pin).
Replace of T-CON Board and
Assemble the FFC(60pin).
* Guide Pin station keeping check.
H_16890_028.eps
230507
Prepare the LCM. Separate the Screw(4EA) Separate the Cover Shield
