Mechanical Instructions
EN 26 LCD LPL 2K74.
4.9.2 Inverter (Master) Board

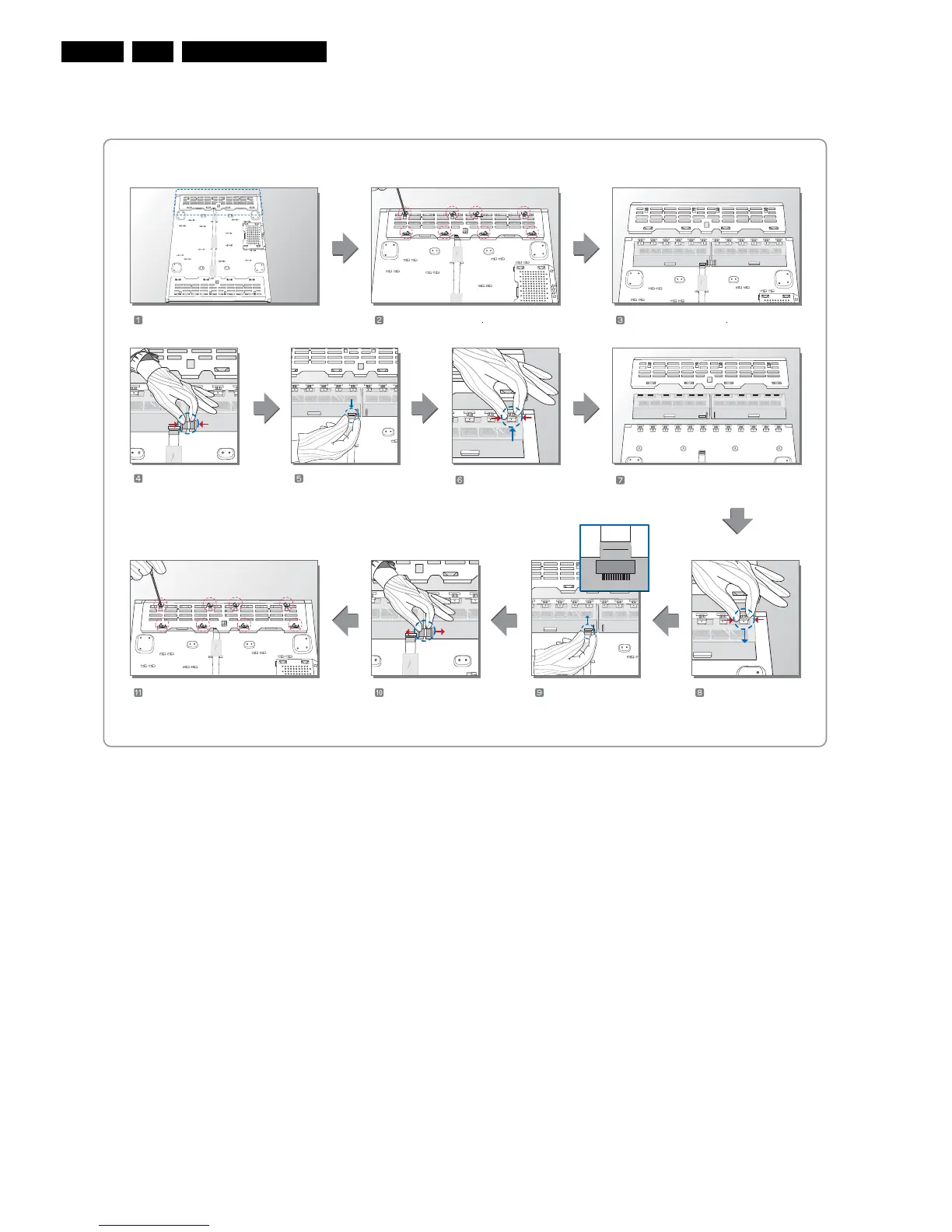

Figure 4-23 Replacement instructions Inverter (master) board
Separate the (11pin) FFC.
Separate the (15pin) FFC.
Unlock of Connector and
sperate the Wire Connector(2pin).
Separate the Inverter.
Attach the Cover Shield and
Assemble the Screw(8EA).
Assemble the FFC(11pin). Replace of Inverter.
Assemble the Wire
Connector(2pin).
Assemble the FFC(15pin).
MODEL: LC470WU1-SL02
H_16890_009.eps
230507
Prepare the LCM.
Separate the Screw(8EA) Separate the Cover Shield
