Mechanical Instructions
EN 28 LCD LPL 2K74.
4.10 Model LC470WU4
4.10.1 Control Board (T-CON Board)

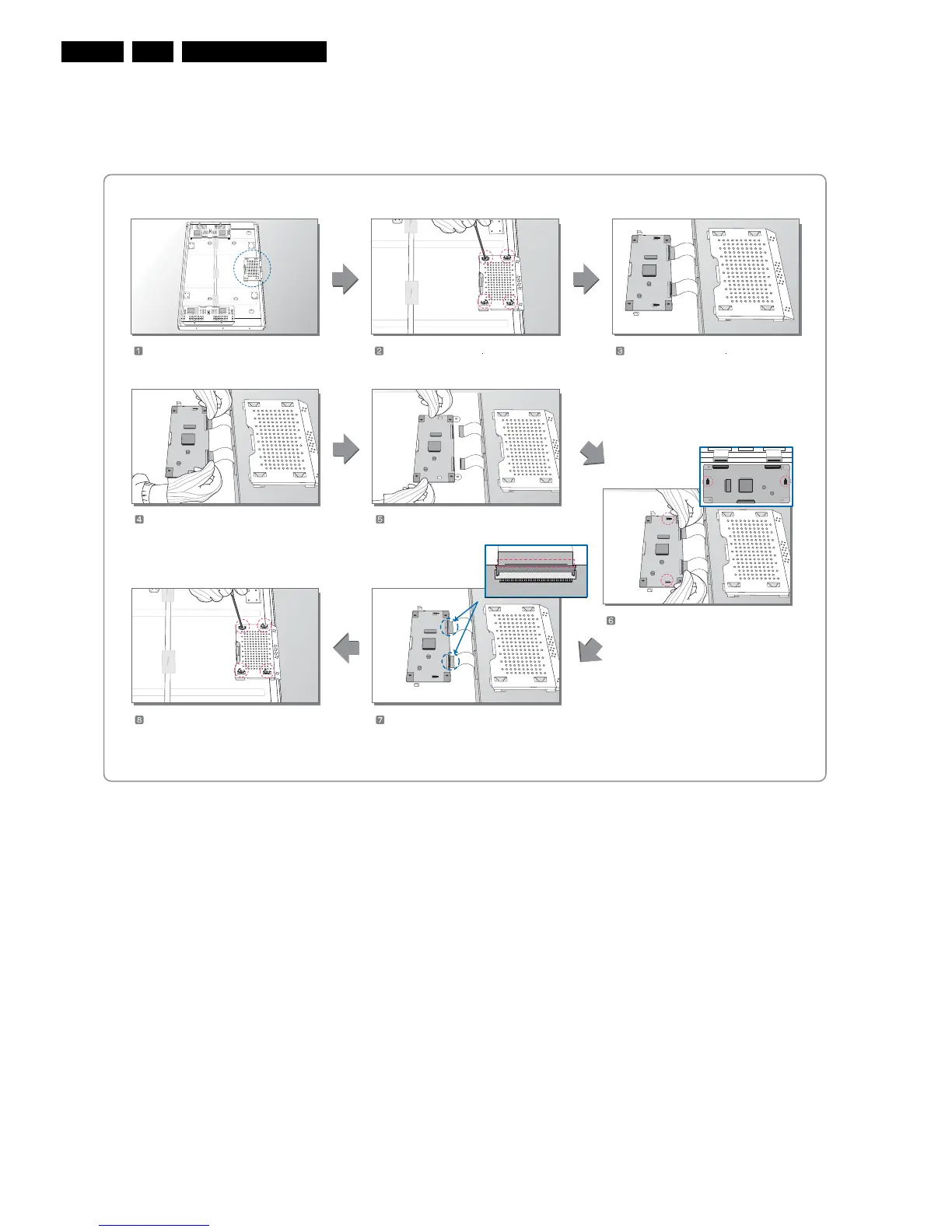

Figure 4-25 Replacement instructions T-CON board
MODEL: LC470WU4-SLA2
Separate the FFC(80pin).
Separate the T-CON Board.
Attach the Cover Shield and
Assemble the Screw(4EA).
Check the FFC(80pin).
Replace of T-CON Board and
Assemble the FFC(80pin).
* Guide Pin station keeping check.
Prepare the LCM. Separate the Screw(4EA)
Separate the Cover Shield
H_16890_011.eps
230507
To Next Page
