Mechanical Instructions
EN 30 LCD LPL 2K74.
4.10.3 Inverter (Slave) Board

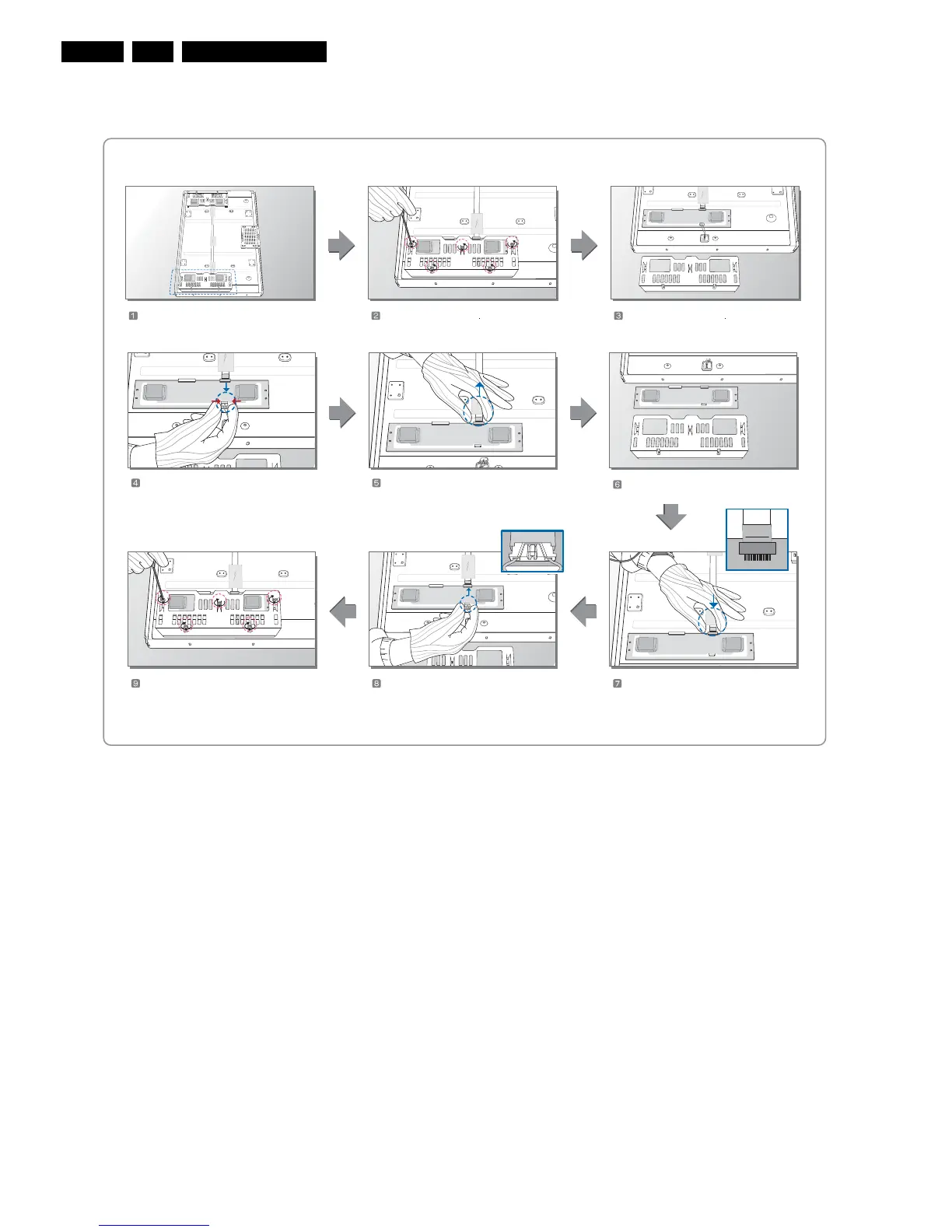

Figure 4-27 Replacement instructions Inverter (slave) board
MODEL: LC470WU4-SLA2
Unlock of Connector and
sperate the Wire Connector(2pin).
Separate the FFC(15pin) .
Separate the Inverter.
Attach the Cover Shield and
Assemble the Screw(5EA).
Assemble the Wire Connector(2pin).
Replace of Inverter and
Assemble the FFC(15pin).
H_16890_013.eps
230507
Prepare the LCM.
Separate the Screw(5EA)
Separate the Cover Shield
