Technical Specifications, Connections, and Chassis Overview
EN 2 EJ2.0U LA1.
1. Technical Specifications, Connections, and Chassis Overview
Index of this chapter:
1.1 Technical Specifications
1.2 Connection Overview
1.3 Chassis Overview
Notes:
• Some models in this chassis range have a different
mechanical construction. The information given here is
therefore model specific.
• Figures below can deviate slightly from the actual situation,
due to the different set executions.
• Specifications are indicative (subject to change).
1.1 Technical Specifications
1.1.1 Vision
Display type : LCD
Screen size : 37” (94 cm), 16:9
Resolution (HxV pixels) : 1366(*3)x768p
Min. light output (cd/m
2
) : 500
Max. response time (ms) : 6
Viewing angle (HxV degrees) : 176x176
Tuning system : PLL
TV Color systems : ATSC, NTSC
Video playback : NTSC
Cable : Unscrambled digital
cable - QAM
Tuner bands : VHF, UHF, S, Hyper
Supported video formats : 640x480i-1fH
: 640x480p-2fH
: 1280x720p-3fH
: 1920x1080i-2fH
Supported computer formats : 640x480 @ 60Hz
: 800x600 @ 60Hz
: 1024x768 @ 60Hz
1.1.2 Sound
Sound systems : AV Stereo
:BTSC
: Dolby Digital (AC3)
Maximum power (W
RMS
):2 x 8
1.1.3 Multimedia
Supported file formats : JPEG
:MP3
: Slideshow (.alb)
USB input : USB1.1
1.1.4 Miscellaneous
Power supply:
- Mains voltage (V
AC
) : 110 - 120
- Mains frequency (Hz) : 60
Ambient conditions:
- Temperature range (°C) : +5 to +40
- Maximum humidity : 90% R.H.
Power consumption (values are indicative)
- Normal operation (W) : ≈ 175
- Stand-by (W) : 0.45
Dimensions (WxHxD in inch) : 38.9x27.8x4.5
Weight, stand included (kg/lbs) : 26/57
1.2 Connection Overview
Note: The following connector color abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy=
Grey, Rd= Red, Wh= White, and Ye= Yellow.

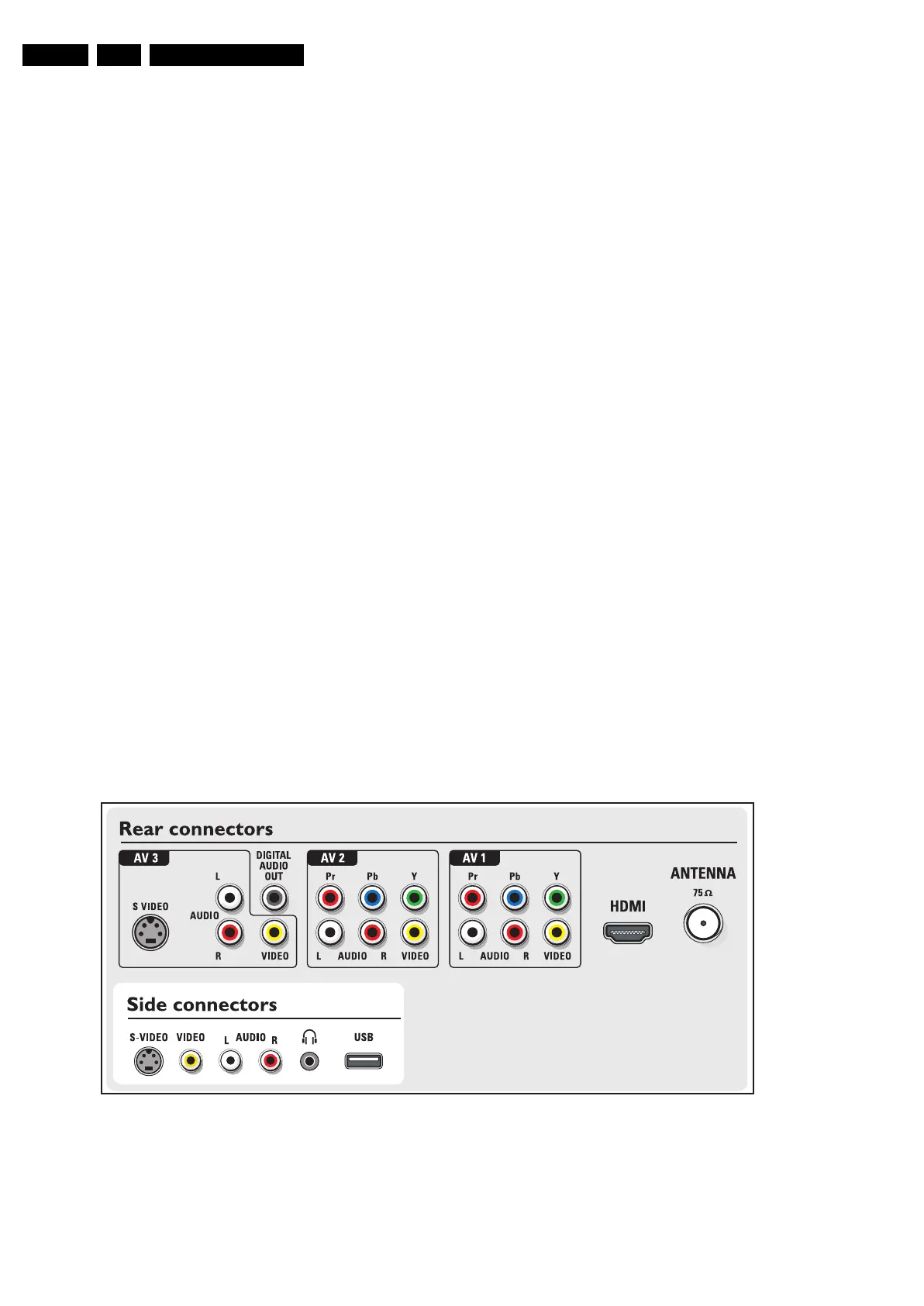

Figure 1-1 I/O connection overview
G_15940_041.eps
240506
