Philips 37PFL7603D/10 - Wiring Diagram 42 (ME8)

44Q528.2E LB 6.
Block Diagrams, Test Point Overview, and Waveforms
Wiring Diagram 42" (ME8)
*AMBI-LIGHT UNIT
(IN BACK COVER)
(1175)
KEYBOARD CONTROL (0025)
1M01
3P
RIGHT SPEAKER
LEFT SPEAKER
H_17650_074.eps
110608
8P11
LCD DISPLAY (1004)
8M95
1
8521
8M99
8D12
8D10
1M99 (B02B)
8. GND
7. BACKLIGHT-BOOST
6. MACKLIGHT-OUT
5. LAMP-ON-OUT
4. GND
3. GND
2. +12VD
1. +12VD
1M95 (B02B)
11. -AUDIO-POWER
10. GNDSND
9. +AUDIO-POWER
8. +12V
7. +12V
6. +12V
5. GND
4. GND
3. GND
2. STANDBY
1. +3V3-STANDBY
CN6
1. 3.3VSB
2. PSON
3. SGND1
4. SGND1
5. SGND1
6. 12V
7. 12V
8. 12V
9. 12VA
10. SGND2
11. -12VA
CN7
1. 12V
2. 12V
3. SGND1
4. SGND1
5. BL_ON_OFF
6. DIM
7. BOOST
8. ANALOG_PWM
CN4
1. 24VA
2. SGND3
3. 24VA
4. SGND3
5. 24VA
6. SGND3
1D10 (B10A)
9. KEYBOARD
8. +5V
7. KEYBOARD
6. LED1
5. +3V3-STANDBY
4. LED2
3. RC
2. GNDSND
1. LIGHT-SENSOR
1D12 (B10A)
4. RIGHT-
3. GNDSND
2. GNDSND
1. LEFT+
1P10 1. LIGHT-SENSOR
2. GNDSND 3. RC 4. LED2 5. +3V3-STANDBY
6. LED1 7. KEYBOARD 8. +5V 9. KEYBOARD
1P11 1. GND 2. KEYBOARD 3. +3V3STBY
4. TACT_SWITCH_INT
CN1 2. L 1. N
1GC0 (B06B)
7. GND
6. +3V3
5. +3V3
4. GND
3. SDA-AMBI-3V3
2. GND
1. SCL-AMBI-3V3
*AMBI-LIGHT UNIT
(IN BACK COVER)
(1175)
1N10
1. GND
2. KEYBOARD
3. +3V3STBY
4. INTERRUPT
8002
J4
8. I2C SEL2
7. 3.3V
6. GND
5. S-SDA
4. S-SCL
3. GND
2. +24V
1. +24V
J2
7. GND
6. 3.3V
5. I2C SEL2
4. I2C SEL1
3. S-SDA
2. GND
1. S-SCL
J1
4. GND
3. +24V
2. GND
1. +24V
J4
1. +24V
2. +24V
3. GND
4. S-SCL
5. S-SDA
6. GND
7. 3.3V
8. I2C SEL2
J2
1. S-SCL
2. GND
3. S-SDA
4. I2C SEL1
5. I2C SEL2
6. 3.3V
7. GND
J1
1. +24V
2. GND
3. +24V
4. GND

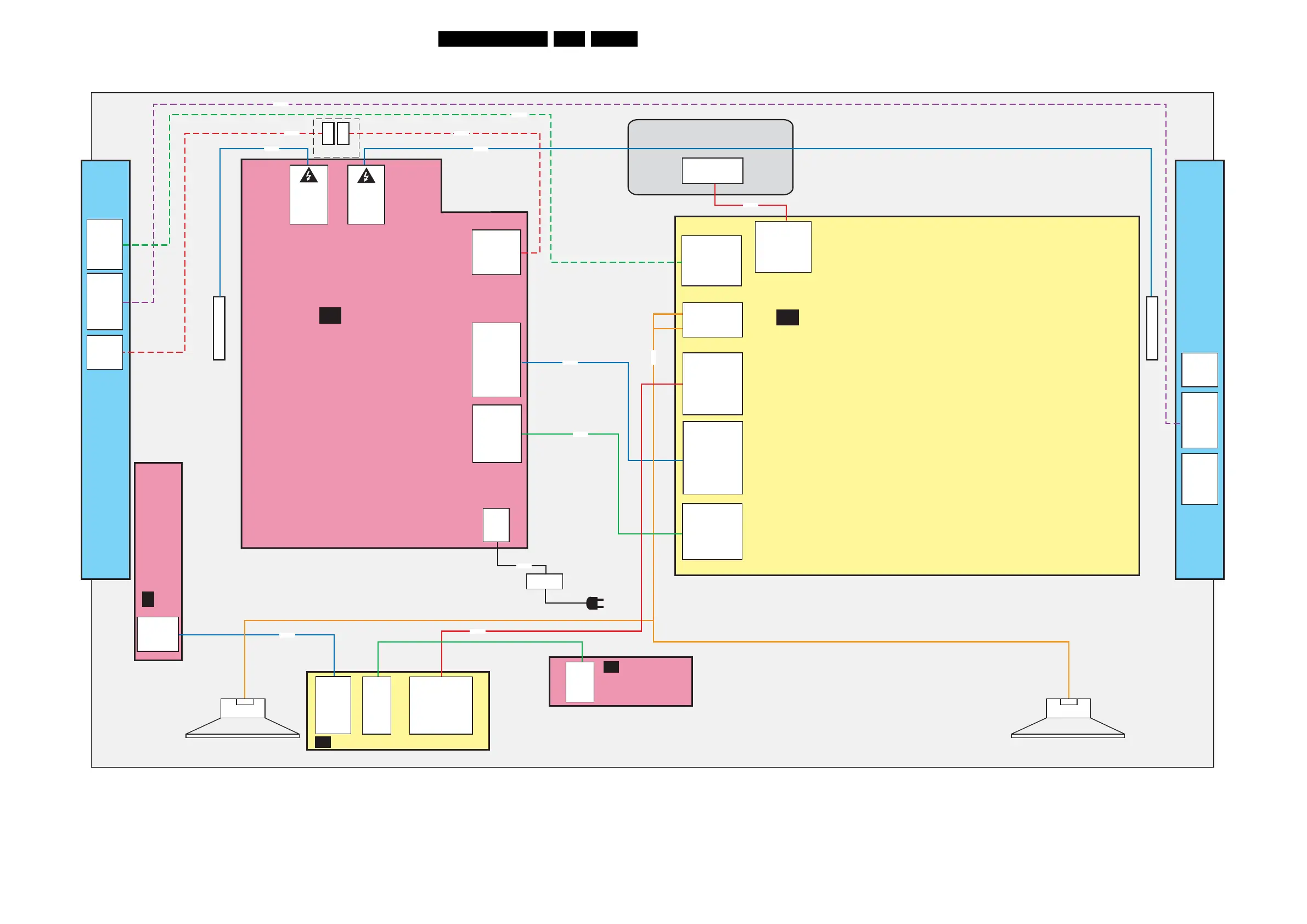

WIRING DIAGRAM 37"- 42" (STYLING ME8)
1G50
(B06A)
41. VDISP
40. VDISP
39. VDISP
38. VDISP
... 2. SCL-I2C4-DISP
1. SDA-I2C4-DISP
LVDS INPUT (1080p)
51P
8GC0
8GC3
8G51
8GC18GC2
IR LED PANEL
(1112)
(5212) IN BACK COVER
(5215) TWEETER
(5211) IN BACK COVER
(5215) TWEETER
J
E
SSB
(1150)
B
+ -
+ -
1P09 1. +3V3STBY
2. +5V_SW 3. LED1
1001 1. +3V3_STBY
2. +5V_SW 3. LED1
*LIGHT GUIDE MODULE
(Optional)
(1110)
* AMBI-LIGHT UNITS AND LIGHT GUIDE MODULE ARE OPTIONAL
LG
INLET
A
MAIN POWER SUPPLY
(1005)
4P 4P
TO BACKLIGHT
8402
8401
TO BACKLIGHT
CN2 1. HV1 2. N.C. 3. HV1
DANGEROUS
HIGH VOLTAGE
CN3 1. HV2 2. N.C. 3. HV2
DANGEROUS
HIGH VOLTAGE
BEHIND DOOR
IN BACK COVER
