Technical Specifications, Connections, and Chassis Overview
EN 5Q528.2E LB 1.
1.3 Chassis Overview

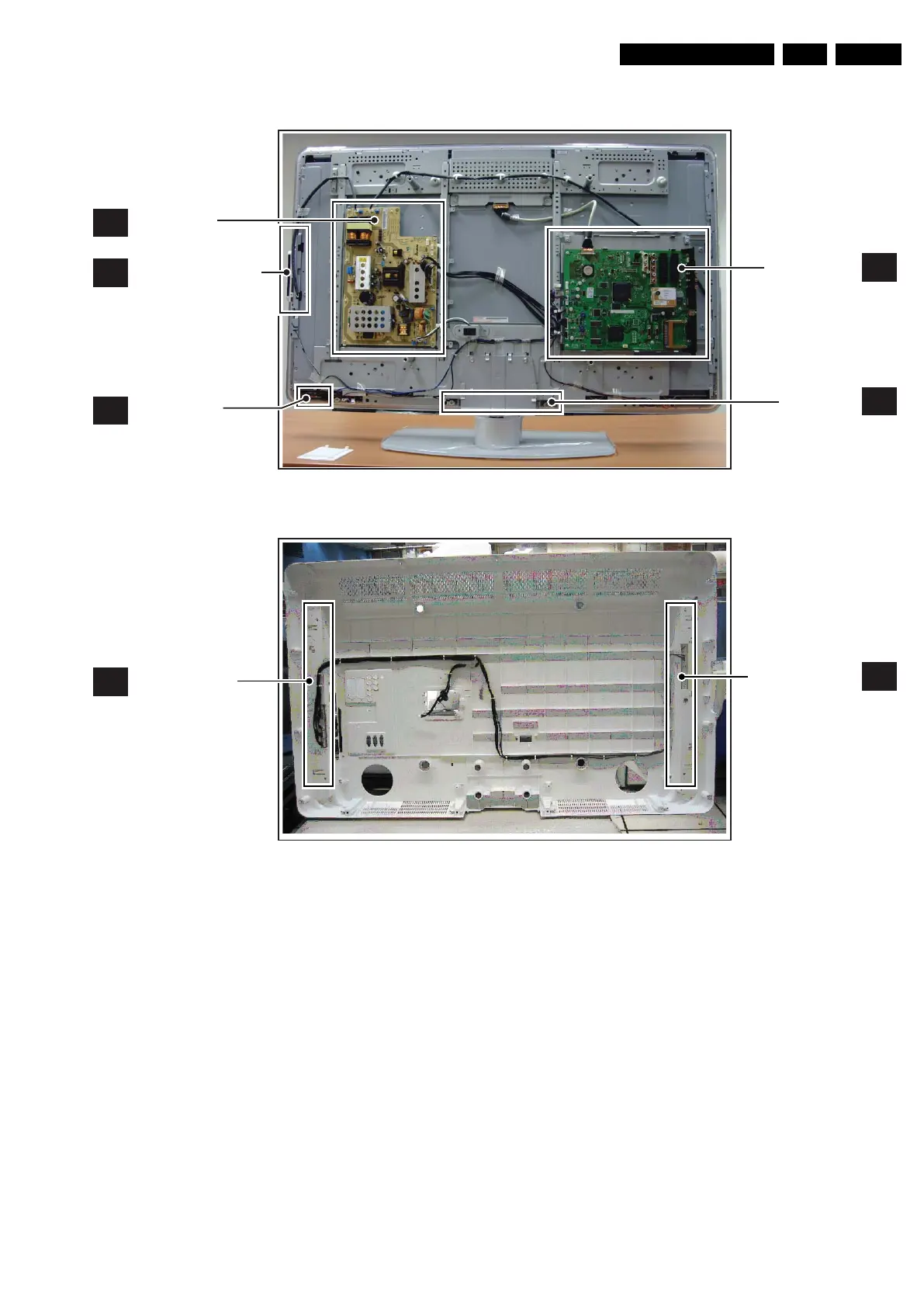

Figure 1-6 PWB/CBA locations sets with AmbiLight
Figure 1-7 PWB/CBA locations sets with AmbiLight - backcover
H_17650_083.eps
160108
H_17650_086.eps
230508
B
MAIN
SUPPLY PANEL
SMALL SIGNAL
BOARD
J
IR & LED PANEL
E
A
KEYBOARD CONTROL
PAN EL
LG
LIGHT GUIDE
PAN EL
I_17961_001.eps
060608
AL
AMBILIGHT PANEL
AL
AMBILIGHT PANEL
