Digital Surround receiver
Connect a Digital MultiChannel Surround receiver to the DIGITAL AUDIO OUT
connector at the bottom of the TV.

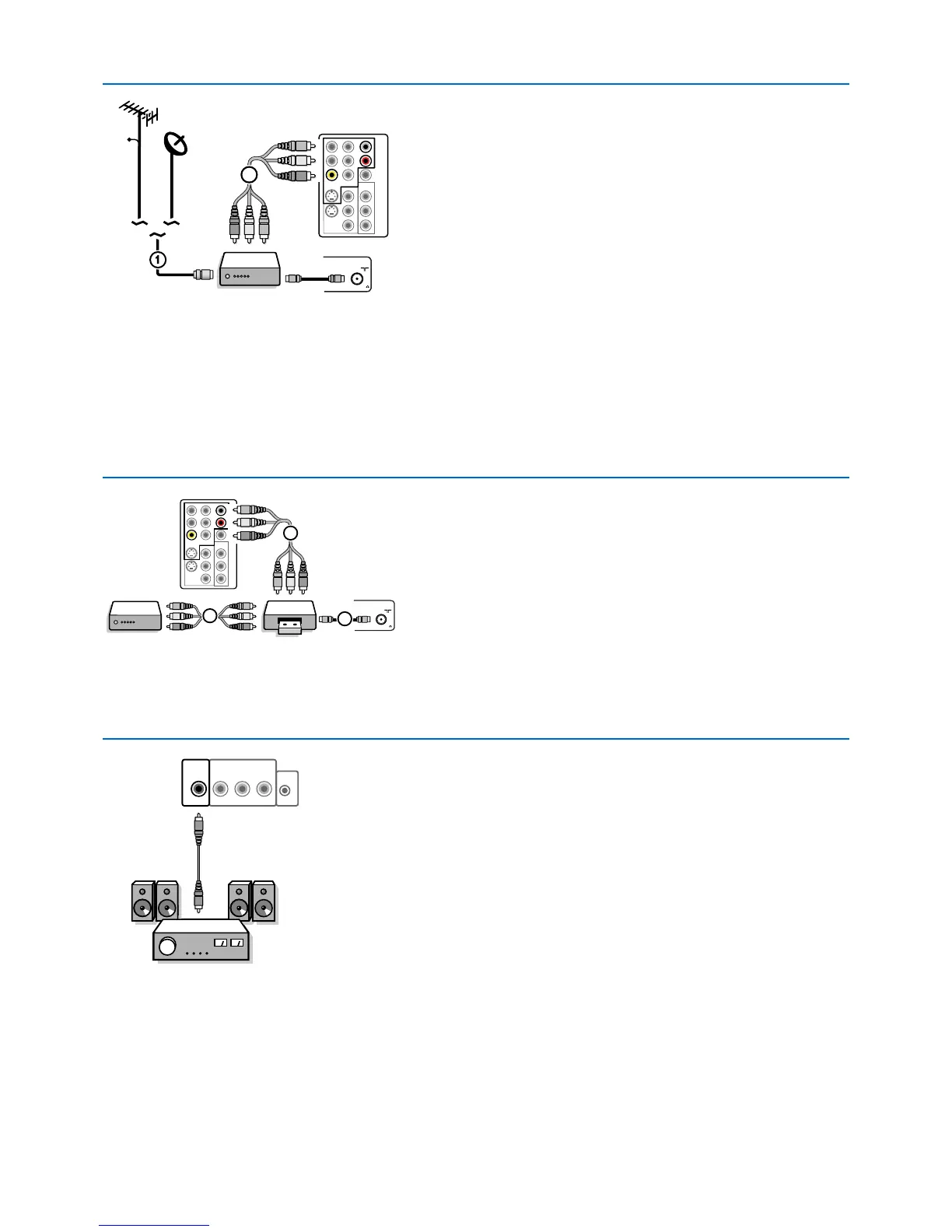

Recorder and Satellite Receiver / cable box with AV outputs
& Connect the RF Antenna or Cable TV cable as described above.
é Connect the AV cables 1 to the satellite receiver’s or cable box’s AV
OUT jacks and to the recorder’s AV IN jacks.
“ Connect the recorder’s AV OUT jacks 2 to the TV’s AV1 jacks as
described above.
‘ Connect another RF cable 3 from the output out of your recorder to
the TV’s input
CABLE/ANTENNA x jack.
S
atellite Receiver / cable box with AV outputs
& C
onnect the satellite antenna cable or the Cable TV cable
1 t
o the
satellite receiver’s or cable box’s
IN jack.
é Connect the Video, Audio left and right AV cables 2 to the VIDEO, L and
R audio input jacks of AV1.
If your satellite receiver or cable box has an S-Video jack:
For improved picture quality, connect an S-Video cable to the S-VIDEO
input instead of connecting the satellite receiver or cable box to the
VIDEO jack.
Connect the audio cables to the device’s
AUDIO L and R jacks and to the
L and R audio AV1 jacks on the TV.
