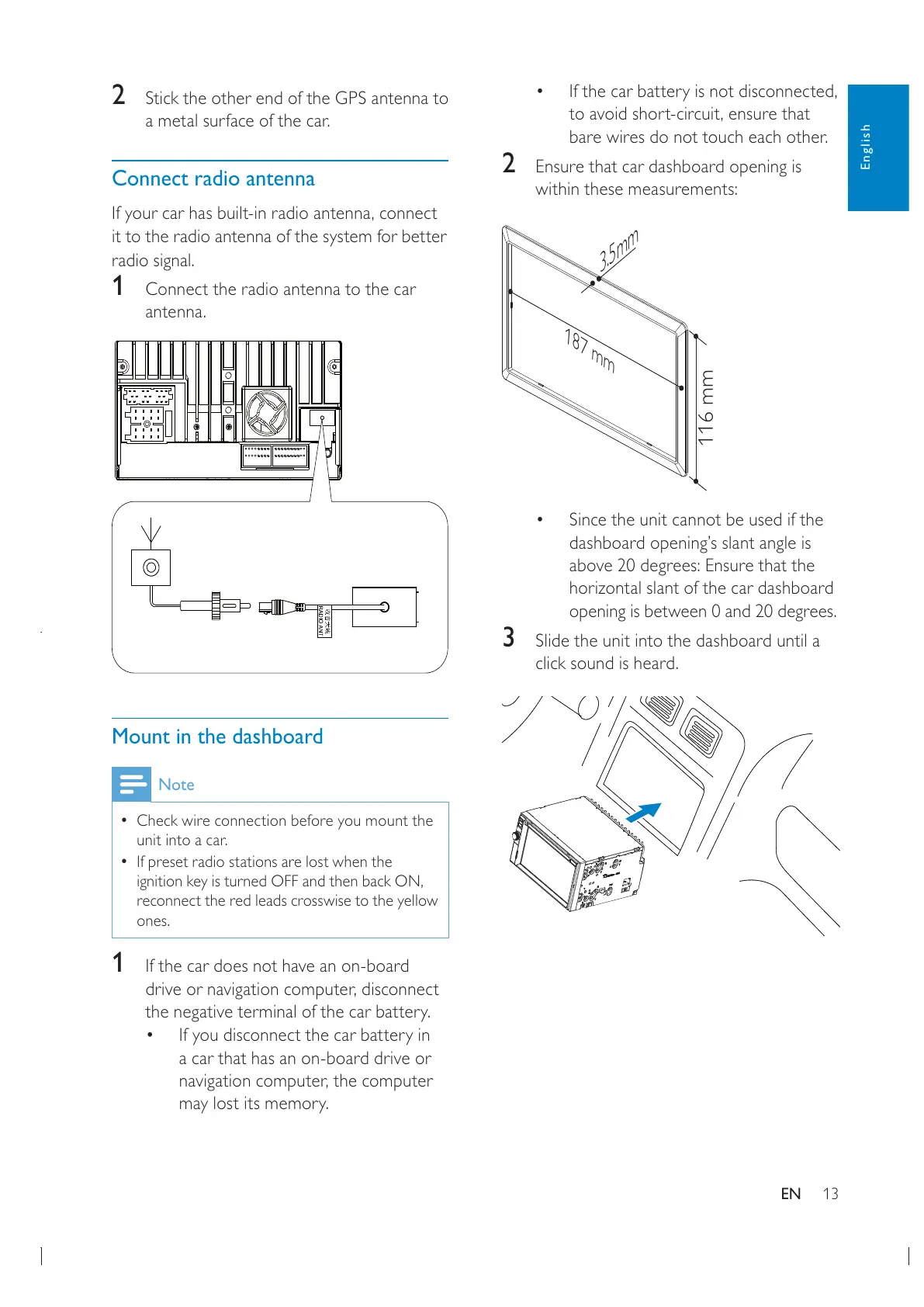

13
bare wires do not touch each other.
2 Ensure that car dashboard opening is
within these measurements:
Since the unit cannot be used if the
dashboard opening’s slant angle is
above 20 degrees: Ensure that the
horizontal slant of the car dashboard
opening is between 0 and 20 degrees.
3 Slide the unit into the dashboard until a
click sound is heard.
3.5mm
116 mm
187 mm
2 Stick the other end of the GPS antenna to
a metal surface of the car.
Connect radio antenna
it to the radio antenna of the system for better
radio signal.
1 Connect the radio antenna to the car
antenna.
Mount in the dashboard
Note
Check wire connection before you mount the
unit into a car.
If preset radio stations are lost when the
reconnect the red leads crosswise to the yellow
ones.
1 If the car does not have an on-board
the negative terminal of the car battery.
If you disconnect the car battery in
a car that has an on-board drive or
may lost its memory.
English
EN
