Technical Specifications, Connections, and Chassis Overview
EN 2 L04E AB1.
1. Technical Specifications, Connections, and Chassis Overview
Notes:
• Described specifications are valid for the whole product
range.
• Figures below can deviate slightly from the actual situation,
due to different set executions.
1.1 Technical Specifications
1.1.1 Vision
Display type : DV-CRT-RF
: DV-CRT-FSQ
: DV-CRT-SF
Screen size : 28” (70 cm), 4:3
: 32” (82 cm), 16:9
Tuning system : PLL
TV Colour systems : PAL B/G, B/H, D/K, I
: SECAM
: SECAM B/G, D/K, L/L'
Video playback : NTSC
Channel selections : 100 presets
: UVSH
Aerial input : 75 ohm, Coax
: IEC-type
1.1.2 Sound
Sound systems : NICAM Stereo
Maximum power : 2x10/ 2x5 W_rms
(int.)
1.1.3 Miscellaneous
Power supply:
- Mains voltage : 220 - 240 V_ac
- Mains frequency : 50/60 Hz
Ambient conditions:
- Temperature range : +5 to +40 deg. C
- Maximum humidity : 90 % R.H.
Power consumption
- Normal operation : from 60 W (21”)
: to 91 W (32”)
- Standby : < 1 W
1.2 Connections
Note: The following connector colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy=
Grey, Rd= Red, Wh= White, Ye= Yellow.
1.2.1 Side Connections

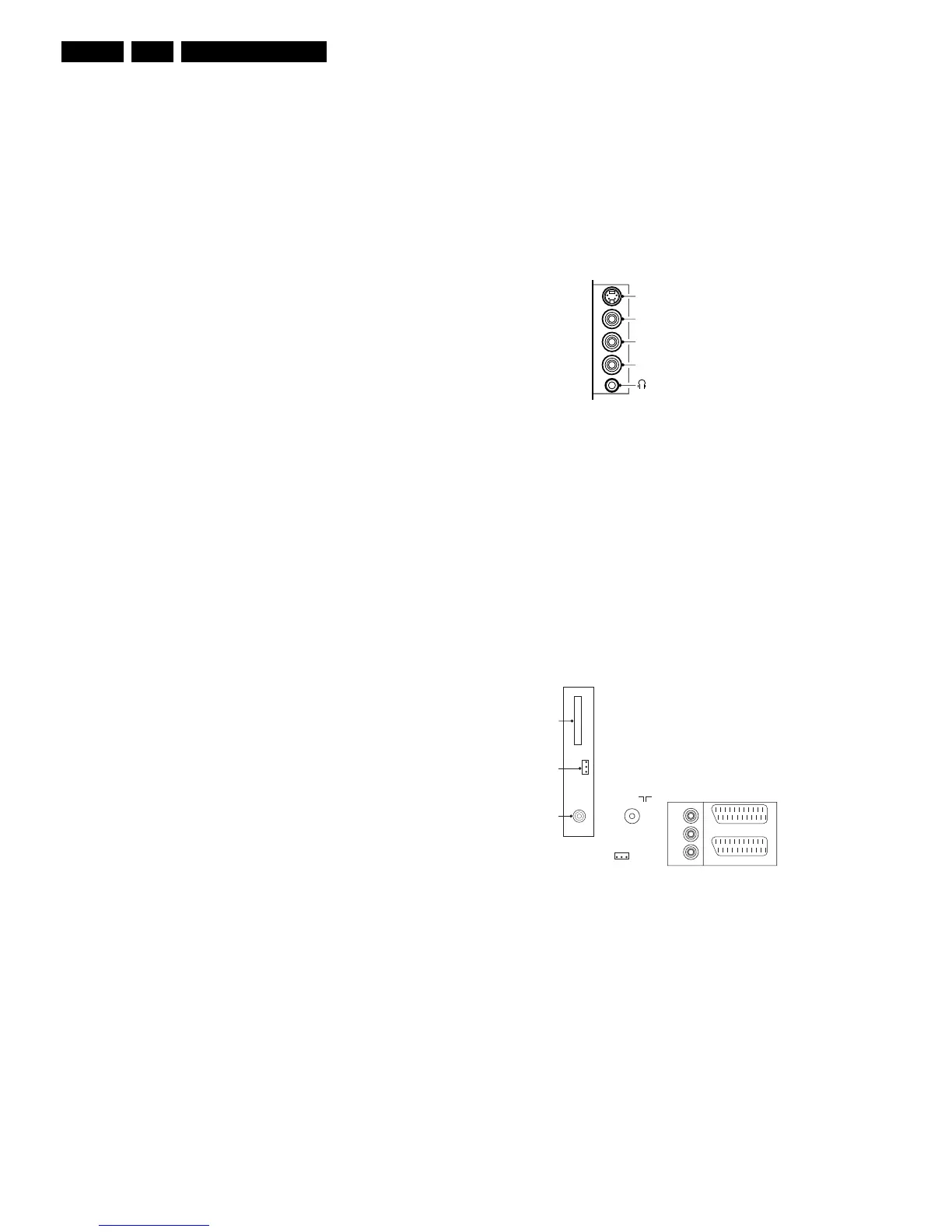

Figure 1-1 Side I/O
SVHS: Y/C - In (Hosiden) (optional)
1 - Ground Gnd H
2 - Ground Gnd H
3 - Y 1 V_pp / 75 ohm j
4 - C 0.3 V_pp / 75 ohm j
Audio / Video In
Ye - Video (CVBS) 1 V_pp / 75 ohm jq
Wh - Audio - L 0.5 V_rms / 10 kohm jq
Rd - Audio - R 0.5 V_rms / 10 kohm jq
Bk - Headphone 8 - 600 Ohm / 4 mW ot
1.2.2 Rear Connections
Figure 1-2 Rear connections
Aerial In
1 - F-type Coax, 75 ohm D
Audio Out
1 - Subwoofer Var. level (optional) kq
Wh - Audio - L 0.5 V_rms / 1 kohm kq
Rd - Audio - R 0.5 V_rms / 1 kohm kq
E_14480_111.eps
060504
S-Video (optional)
Video
L
Audio
R
SIDE I/O
L
S
R
AUDIO
OUT
75 Ohm
SERVICE
CONNECTOR
E_14970_033.eps
070904
SERVICE
CONNECTOR
EXTERNAL 2
EXTERNAL 1
SMART
CARD
DIGITAL OUT
