Philips L04E - Top Control Panel (FL-13)

54L04E AB 7.

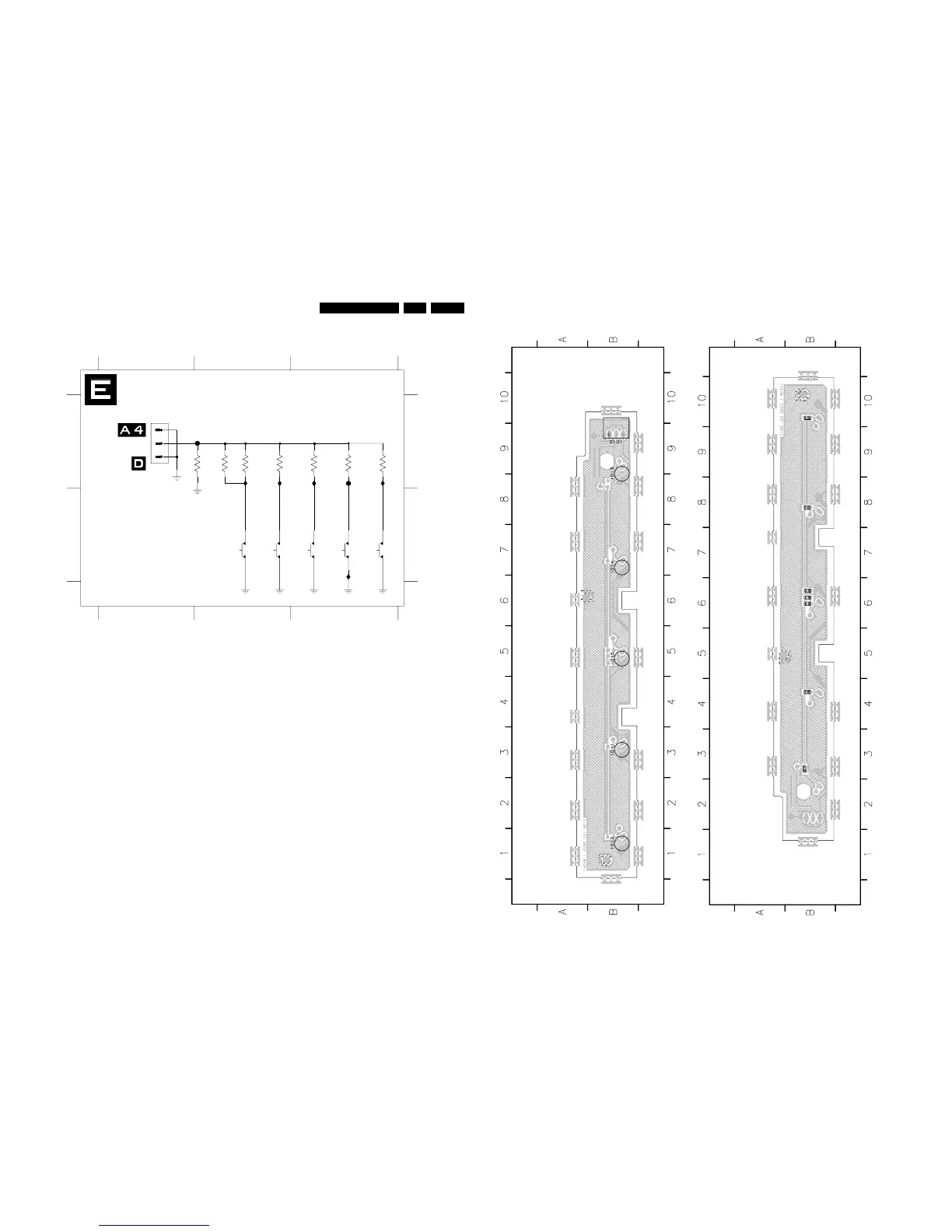

Circuit Diagrams and PWB Layouts
Top Control Panel (FL-13)
volume-
channel-
channel+
RES
12 3
12 3
A
B
A
B
1010 A1
1011 B3
1012 B3
1013 B2
1014 B3
1015 B2
3010 A1
3011 A2
3012 A3
3013 A3
3015 A3
3017 A2
3018 A2
F011 A2
F012 A3
I011 A3
I012 A2
I013 A3
TOP CONTROL (FL-13)
volume+
menu
I017 B3
I018 A3
OR
OF
FROM 1281
FROM 1682
OF
390R
3012
150R
3011
1
2
3
I017
1010
SKQNAB
1012
SKQNAB
1014
1K8
3013
F011
F012
1011
SKQNAB
1015
SKQNAB
3010
I018
820R
3015 3017
1K8
1013
SKQNAB
I013
820R
3018
I012
I011
KEY_PROTN
3139 123 5825.1
E_14480_135.eps
180504
Layout Top Control Panel (FL-13)
1010 B9 1011 B3 1012 B1 1013 B8 1014 B7 1015 B5
3139 123 5825.1
3010 B6 3011 B3 3012 B4 3013 B8 3015 B10 3017 B6 3018 B6
3139 123 5825.1
E_14480_137.eps
180504
Top
Bottom
