Technical Specifications, Connections, and Chassis Overview
EN 2 LC4.1E AB1.
1. Technical Specifications, Connections, and Chassis Overview
Index of this chapter:
1.1 Technical Specifications
1.2 Connection Overview
1.3 Chassis Overview
Notes:
• Figures can deviate due to the different set executions.
• Specifications are indicative (subject to change).
1.1 Technical Specifications
1.1.1 Vision
Display type : LCD, IPS / LCD, TN
Screen size : 15” (38 cm), 4:3
: 17” (43 cm), 16:9
: 20” (51 cm), 4:3
: 20” (51 cm), 16:9
: 23” (58 cm), 16:9
Resolution (HxV pixels) : 640x480
: 1024x768
: 1280x768
: 1366x768
Contrast ratio : 350/500/600:1
Light output (cd/m
2
) : 450
Response time (ms) : 16/25
Viewing angle (HxV degrees) : 130x100
: 140x120
: 176x176
Tuning system : PLL
TV Colour systems : PAL B/G, D/K, I
: SECAM B/G, D/K, L/L’
: NTSC M/N 3.58
Video playback : NTSC M/N 3.58, 4.43
: PAL B/G
: SECAM L/L’
Supported computer formats : VGA (640x480)
: VGA (720x400)
: VGA (640x350)
: MAC (640x480)
: MAC (832x624)
: SVGA (800x600)
: XVGA (1024x768)
: WXGA (1280x768)
Supported video formats : 640x480i - 1fH
: 720x576i - 1fH
: 1920x1080i - 2fH
: 1280x720p - 3fH
Presets/channels : 100 presets
Tuner bands : VHF
: UHF
: S-band
: Hyper-band
: FM-radio (depending
on model)
1.1.2 Sound
Sound systems : FM-mono
: AM-mono
: FM-stereo B/G
: NICAM B/G, D/K, I, L
: AV Stereo
Maximum power (W
RMS
) : 2 x 2 / 2 x 5
1.1.3 Miscellaneous
Power supply:
- Mains voltage (V
AC
) : 90 - 240
- Mains frequency (Hz) : 50 / 60
Ambient conditions:
- Temperature range (°C) : +5 to +45
- Maximum humidity : 90% R.H.
Power consumption (values are indicative)
- Normal operation (W) : ≈ 42/53/55/80/92
- Stand-by (W) : < 1/1.5/3
Dimensions (WxHxD cm) : 46.7x30.7x6.9
: 47.2x30.8x7.65
: 51.7x30.2x8
: 58.3x38.6x8.7
: 61.8x32.5x9
: 71.6x37.5x9.8
Weight (kg) : 5.8/6/8.8/10.2
1.2 Connection Overview
Note: The following connector colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy=
Grey, Rd= Red, Wh= White, and Ye= Yellow.
1.2.1 Front / Side Connections

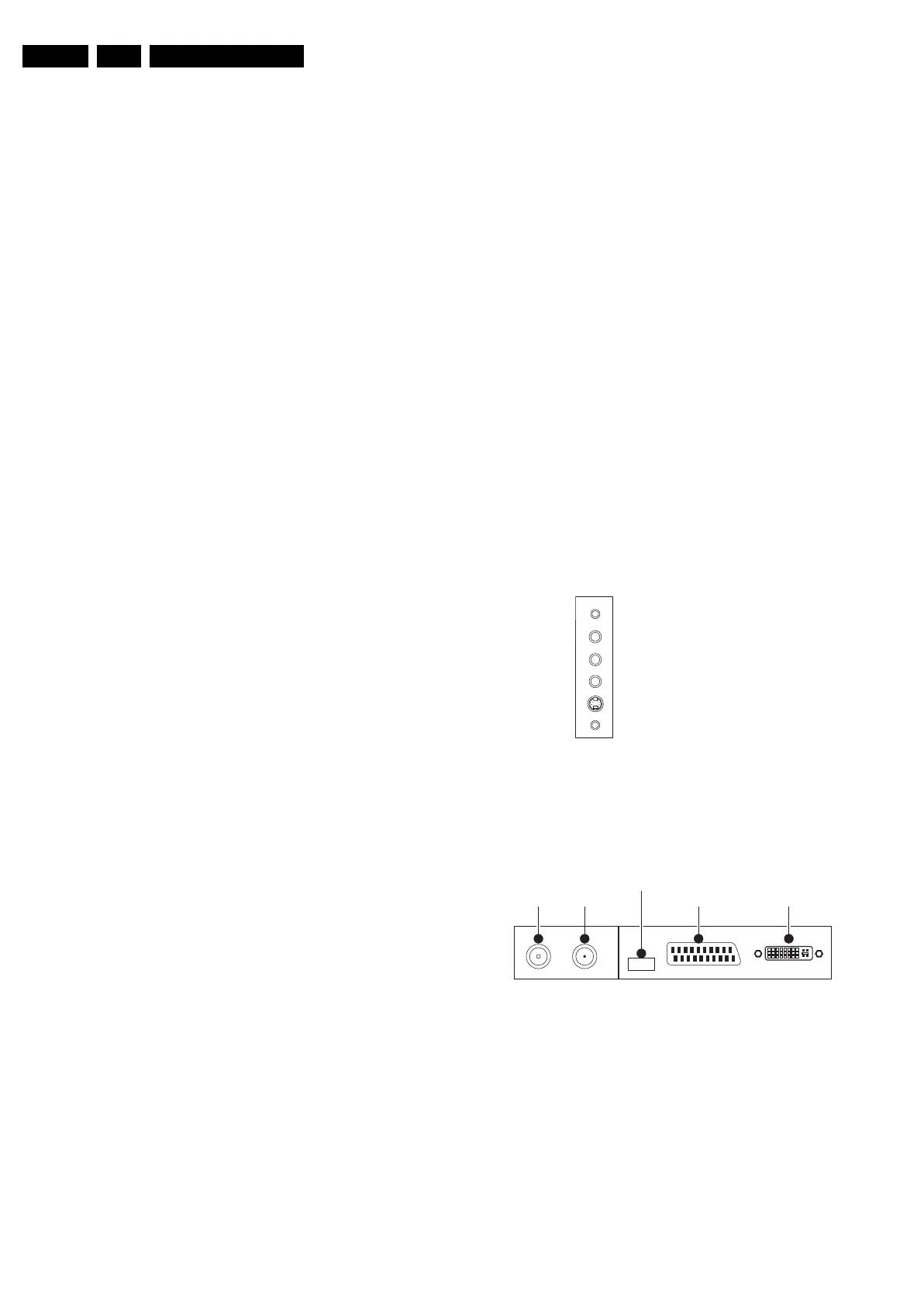

Figure 1-1 Side I/O
1.2.2 Rear Connections
Figure 1-2 Rear I/O
Aerial - In
- - IEC-type (EU) Coax, 75 ohm D
Aerial: FM Radio
- - IEC-type Coax, 75 ohm D
Cinch: Video CVBS - In, Audio - In
Ye - Video CVBS 1 V
PP
/ 75 ohm jq
Wh - Audio L 0.5 V
RMS
/ 10 kohm jq
Rd - Audio R 0.5 V
RMS
/ 10 kohm jq
S-VIDEO
VIDEO IN
AUDIO L IN
F_15310_032.eps
270605
AUDIO R IN
HEADPHONE
DVI
AUDIO IN
FM ANT SCART 1AERIAL IN DVI
ComPair
CONNECTOR
F_15310_031.eps
270605
