Philips MX5800SA - Page 65

8-11
8-11

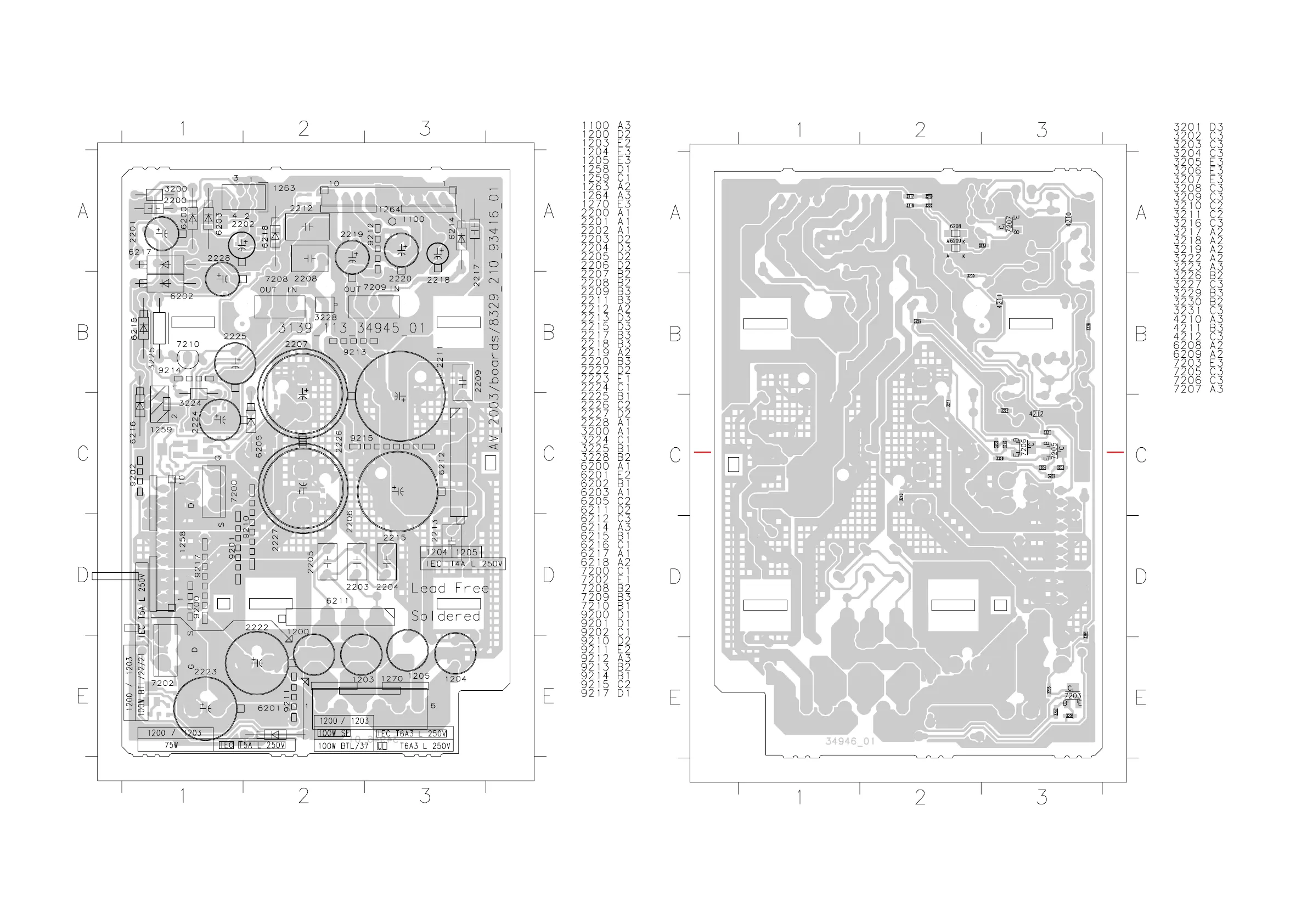

SUPPLY BOARD - COMPONENT LAYOUT SUPPLY BOARD - CHIP LAYOUT
8239 210 93416 .. 3139 113 3494pt6 dd wk0334
This assemby drawing shows a summary of all possible versions. For components used in a specific version
see schematic and respective parts list.
8239 210 93416 .. 3139 113 3494pt6 dd wk0334
This assemby drawing shows a summary of all possible versions. For components used in a specific version
see schematic and respective parts list.
PART A
PART B
