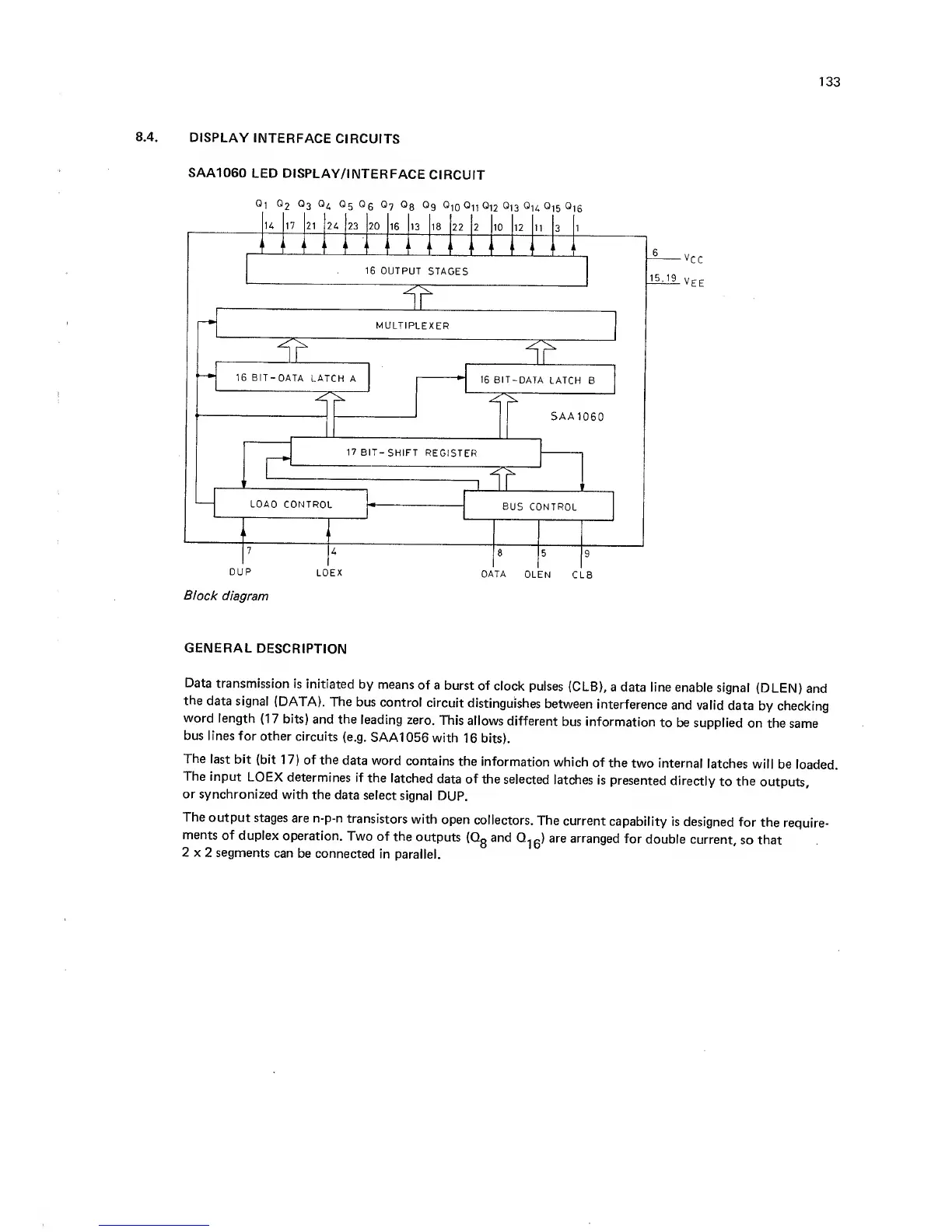

8.4.
DISPLAY
INTERFACE
CIRCUITS
SAA1060
LED
DISPLAY/INTERFACE
CIRCUIT
DUP
LOEX
data
DLEN
CLB
Block
diagram
GENERAL
DESCRIPTION
Data
transmission
is
initiated
by
means
of a
burst of
clock
pulses
(CLB),
a data
line enable
signal
(DLEN)
and
the
data signal
(DATA).
The
bus
control
circuit
distinguishes
between
interference
and
valid
data
by checking
word
iength
(17
bits)
and the
leading
zero.
This
allows
different
bus information
to be
supplied
on the
same
bus
lines for
other
circuits
(e.g.
SAA1056
with
16 bits).
The
last bit
(bit
17)
of the
data
word
contains
the
information
which
of the
two
internal
latches
will
be
loaded.
The
input
LOEX
determines
if
the
latched
data of
the
selected
latches
is
presented
directly
to
the
outputs,
or
synchronized
with the
data
select
signal
DUP.
The
output
stages
are n-p-n
transistors
with
open
collectors.
The
current
capability
is
designed for
the
require-
ments
of
duplex
operation.
Two
of the
outputs
(Qg
and
Q']
0
)
ere arranged
for
double
current,
so that
2 x
2 segments
can
be connected
in
parallel.
