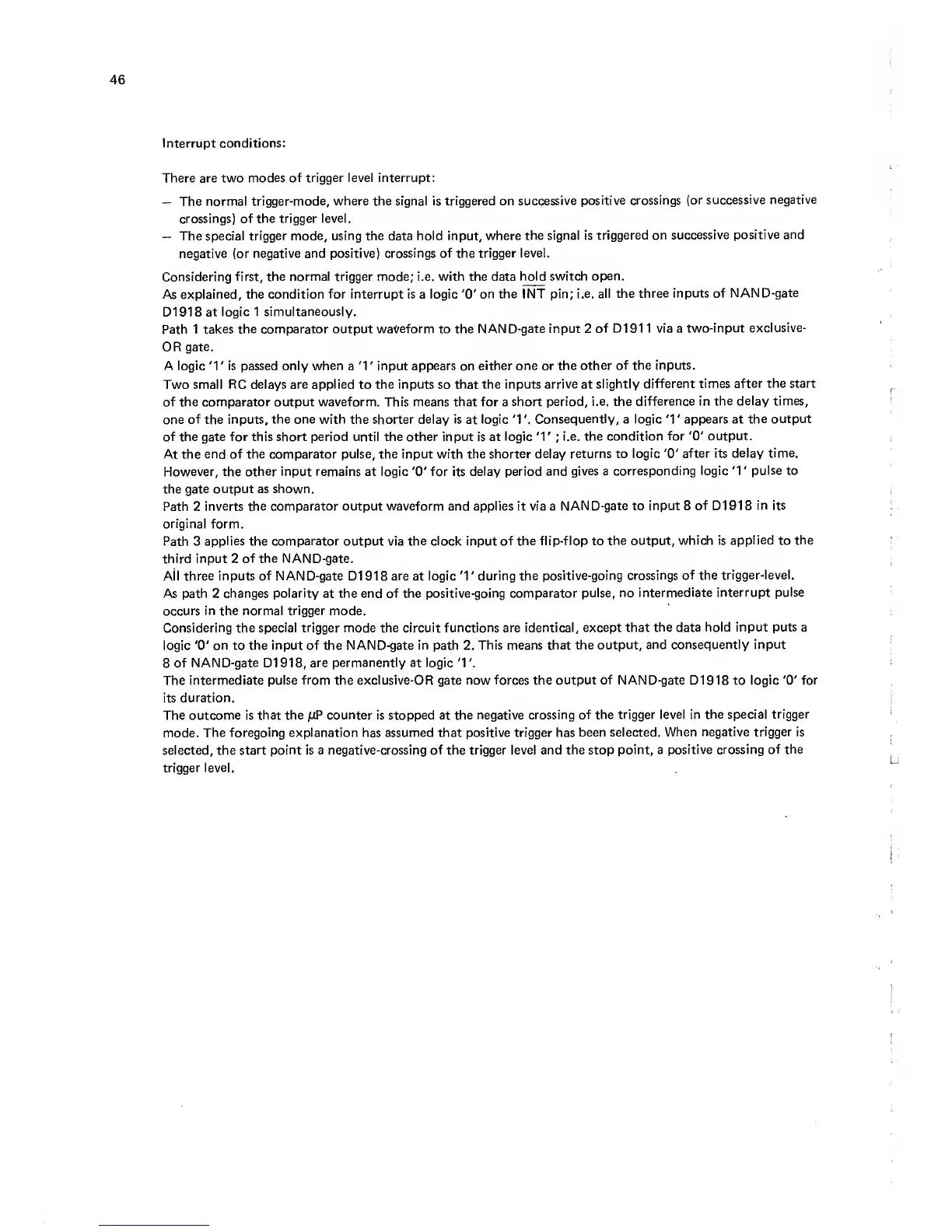

Philips pm2521 - Page 46

interrupt conditions:
There are two
modes of trigger level interrupt:
—
The normal
trigger-mode, where the signal is triggered on
successive
positive crossings
(or successive
negative
crossings)
of the trigger
level.
—
The special
trigger mode, using the data hold input, where
the signal is
triggered on
successive
positive and
negative
(or
negative and positive) crossings
of
the
trigger level.
Considering
first, the normal trigger mode; i.e. with the data
hold switch
open.
As
explained, the condition
for
interrupt is a logic
'0'
on the INT pin;
i.e. all the
three inputs of
NAND-gate
D1918
at logic 1
simultaneously.
Path 1
takes the comparator output
waveform
to the
NAND-gate input 2
of D191 1 via a
two-input
exclusive-
OR
gate.
A
logic
'1
' is passed only
when
a
'1
' input
appears
on
either one or the
other of the inputs.
Two
small
RC
delays are applied
to
the inputs
so
that the inputs
arrive
at
slightly
different times
after the start
of the comparator output waveform. This means that for a
short period,
i.e.
the
difference in
the delay times,
one
of
the inputs,
the one with the
shorter
delay is
at
logic
'1
'.
Consequently,
a logic
'1
' appears at
the output
of
the gate for this short period until the other input is at
logic
'1'
;
i.e.
the condition for
'0'
output.
At the
end of the comparator pulse, the input with the shorter
delay returns to
logic
'0'
after its
delay time.
However, the
other input remains
at logic
'0'
for
its
delay period and
gives
a
corresponding
logic
'1'
pulse to
the
gate output as shown.
Path 2
inverts the comparator output
waveform
and applies it
via
a
NAND-gate to
input
8
of D1918
in
its
original form.
Path 3
applies the comparator output via the clock input of
the flip-flop to the output,
which is applied to
the
third input 2
of the NAND-gate.
Ail three inputs
of
NAND-gate D1918 are at
logic
'1'
during the
positive-going crossings
of the trigger-level.
As
path
2
changes polarity at the end of the positive-going
comparator pulse, no
intermediate interrupt
pulse
occurs in the normal trigger mode.
Considering the special trigger mode the circuit functions are
identical, except that
the
data
hold input puts a
logic
'0'
on to the input of the NAND-gate in path 2.
This
means
that the
output, and consequently
input
8
of
NAND-gate
D1918, are
permanently
at
logic
'1'.
The intermediate pulse from
the
exclusive-OR gate now forces the
output of
NAND-gate D1918 to logic
'0'
for
its
duration.
The outcome is
that the /xP counter is stopped at the negative
crossing of the trigger
level
in
the special trigger
mode.
The foregoing explanation has assumed that positive trigger has
been selected.
When negative trigger is
selected, the start
point
is a
negative-crossing
of
the trigger level and the stop
point,
a
positive crossing
of the
trigger
level.
