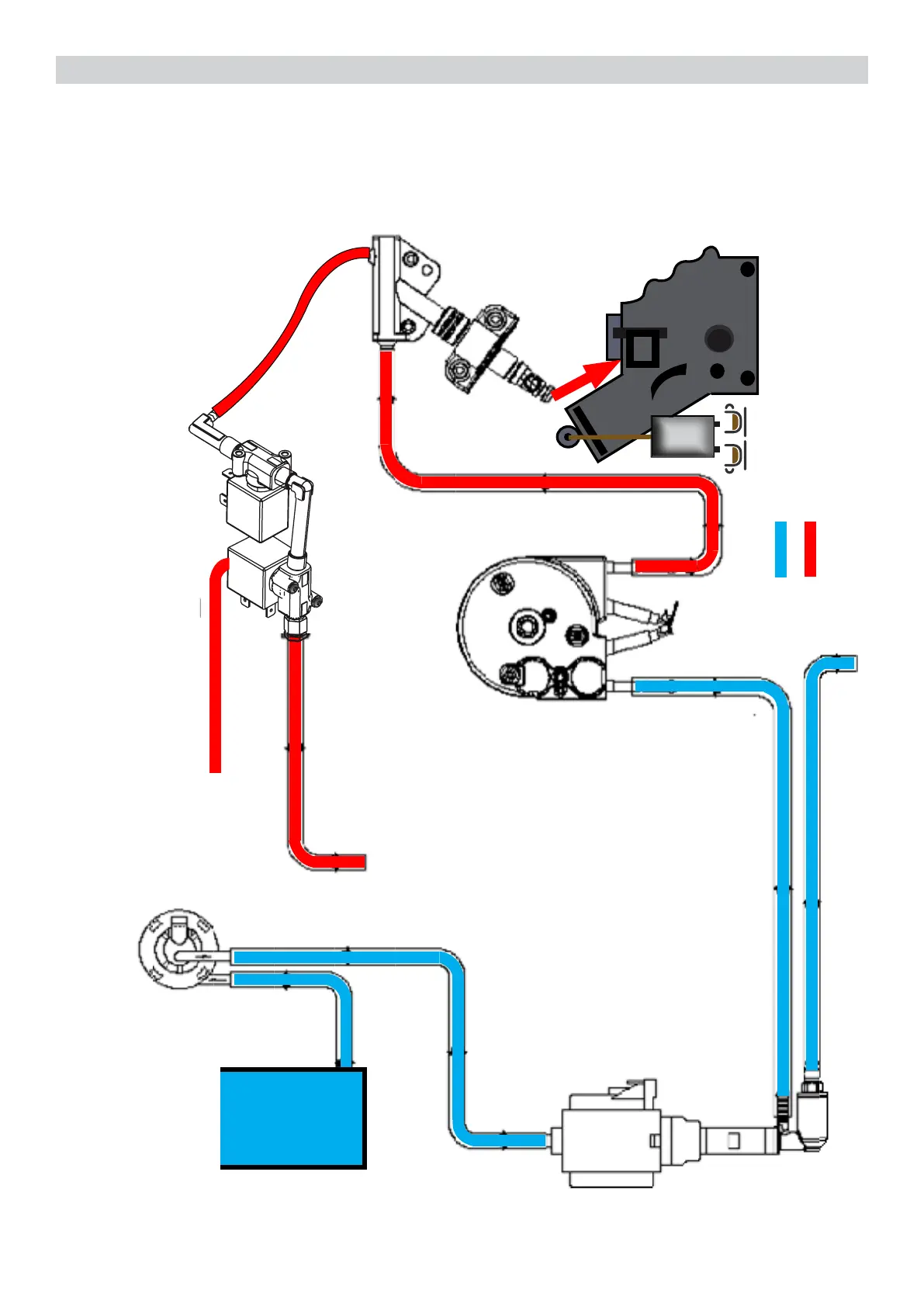

MOLTIO 04 OPERATING LOGIC
1/9
Milk carafe
Compensation valve water outlet
Flow-meter
1900 W boiler
Water
Hot water /steam
Compensation valve water outlet
Pump
Water tank
Three-way solenoid valve
Brewing unit
Three-way
solenoid valve
4.1.1.WatercircuitinMoltioOneTouchMilkCarafe
