1.5 Service POLICY grid as used for coffee machine
Components Assembly use Single components available
COFFEE
GRINDER
Only for OOW repairs
YES, to consult the specic exploded-view of the
machine or of the Coffee Grinder on website
BREWING
UNIT
Only for OOW repairs
YES, to consult the specic exploded-view of the
machine or of the Brewing unit on website
BOILER Only for OOW repairs
YES, to consult the specic exploded-view of the
machine on website
GEAR
MOTOR
Only for OOW repairs
YES, to consult the specic exploded-view of the
machine on website
FILTER
HOLDER
Only for OOW repairs
YES, to consult the specic exploded-view of the
machine on website
MILK
CARAFE
Only for OOW repairs
YES, to consult the specic exploded-view of the
machine on website
THERMAL
CARAFE
Only for OOW repairs
YES, to consult the specic exploded-view of the
Thermal Carafe on website
MILK ISLAND Only for OOW repairs
YES, to consult the specic exploded-view of the
Milk Island on website
List of principal assembly present in all our coffee machines
For IN WARRANTY repairs is raccomanded to use when and where possible the single
components,available in the exploded views of the coffee machines or of the specic components.
If you nd the information “SEE THE EXPLODED VIEW E........” in the assembly description eld, it
means that the single components of the assembly are available in the other pages of the exploded
view. It’s possible to use the assembly only if there is a specic Symptom Cure that include this pos-
sibility or when the single components are not available for the order.

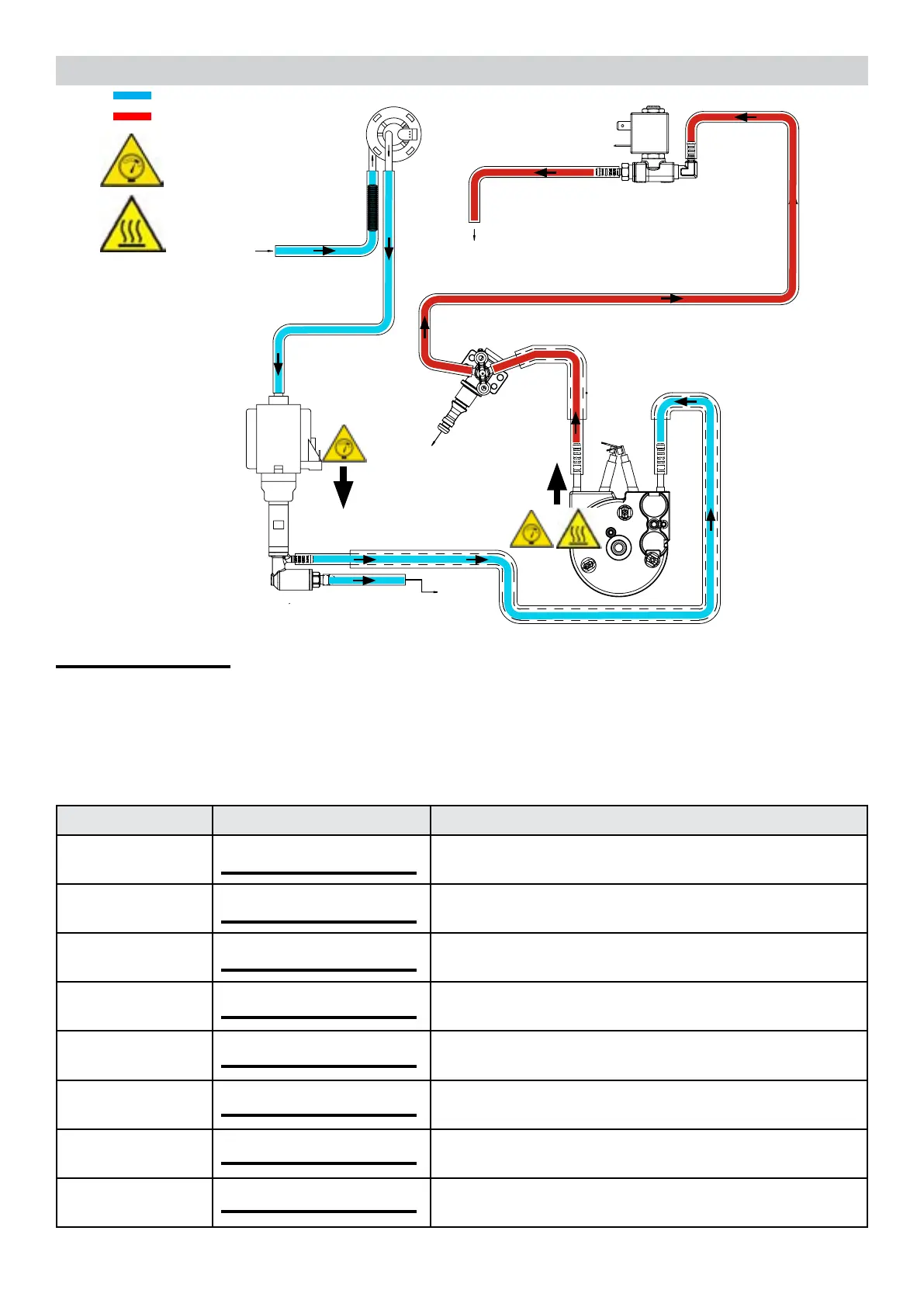

Pump
Safety valve
Water
discharge
Steam pipe
Wa
ter tank
Two-way solenoid valve
Brewing Unit
Flowmeter
Boiler
Water
Hot water /steam
From this point circuit
High temperaure
From this point circuit
in pressure
Flowmeter
Steam and hot water
Two-way solenoid valve
Pump
Brewing Unit
Boiler
Safety valve
Water
discharge
Water tank
