Philips VR550 - Still;Slow Control Frame Advance Timing Chart

1-13-2 HG470TI
Still/Slow Control

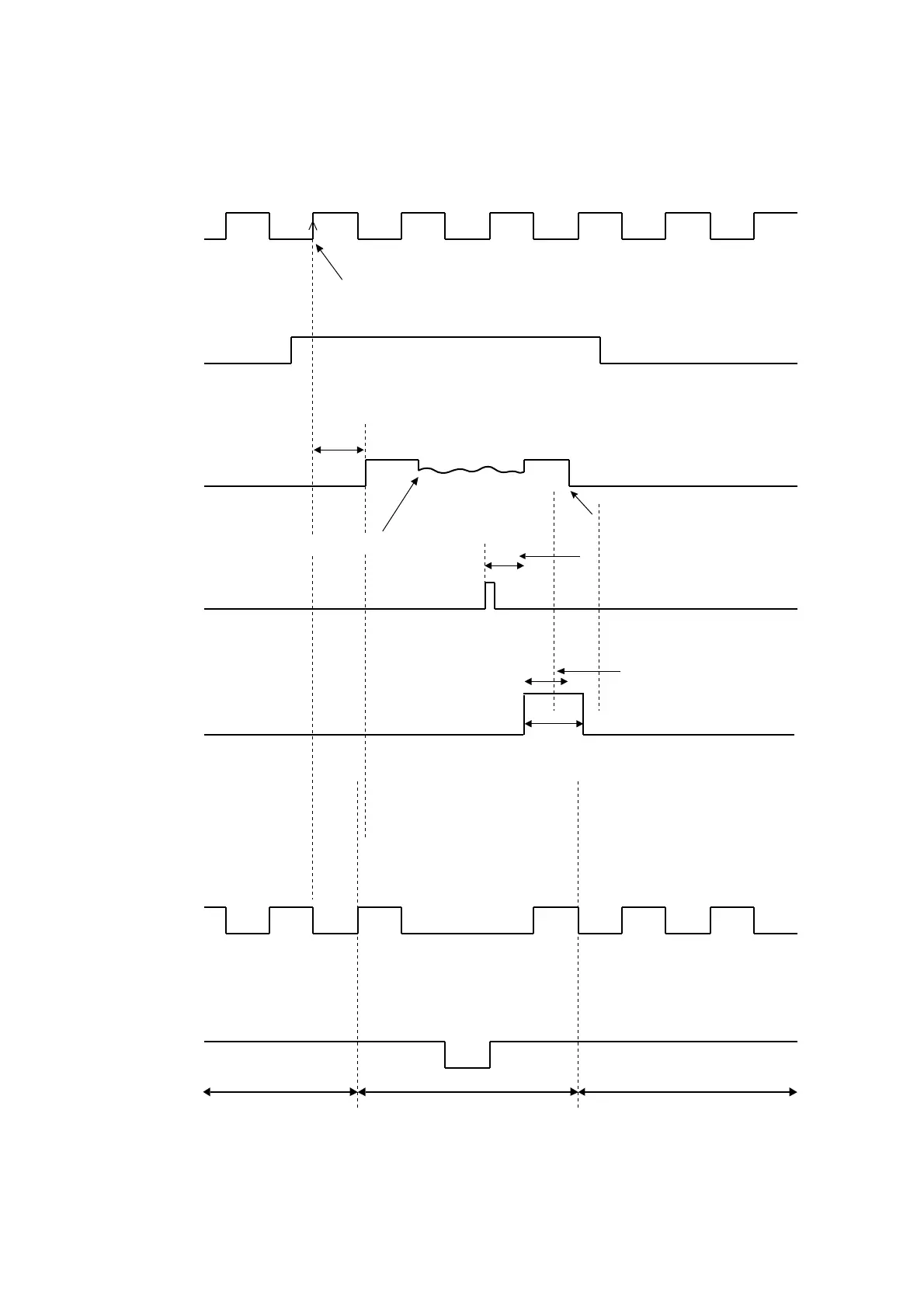

Frame Advance Timing Chart
1) SP Mode
18 RF-SW
F-AD
(Internal Signal)
C-DRIVE
PB CTL
78 C-F/R
16 H-A-SW
15 ROTA
The first rise of RF-SW after a rise in F-AD signal
AT
"H"
"Z"
"H"
"L" "L"
ST
Stop detection (T2)
Slow Tracking Value
Acceleration Detection (T1)
BL
STILL FRAME ADVANCE STILL
Reversal Limit Value
20ms
