2-2-1 U29PFIX_PC

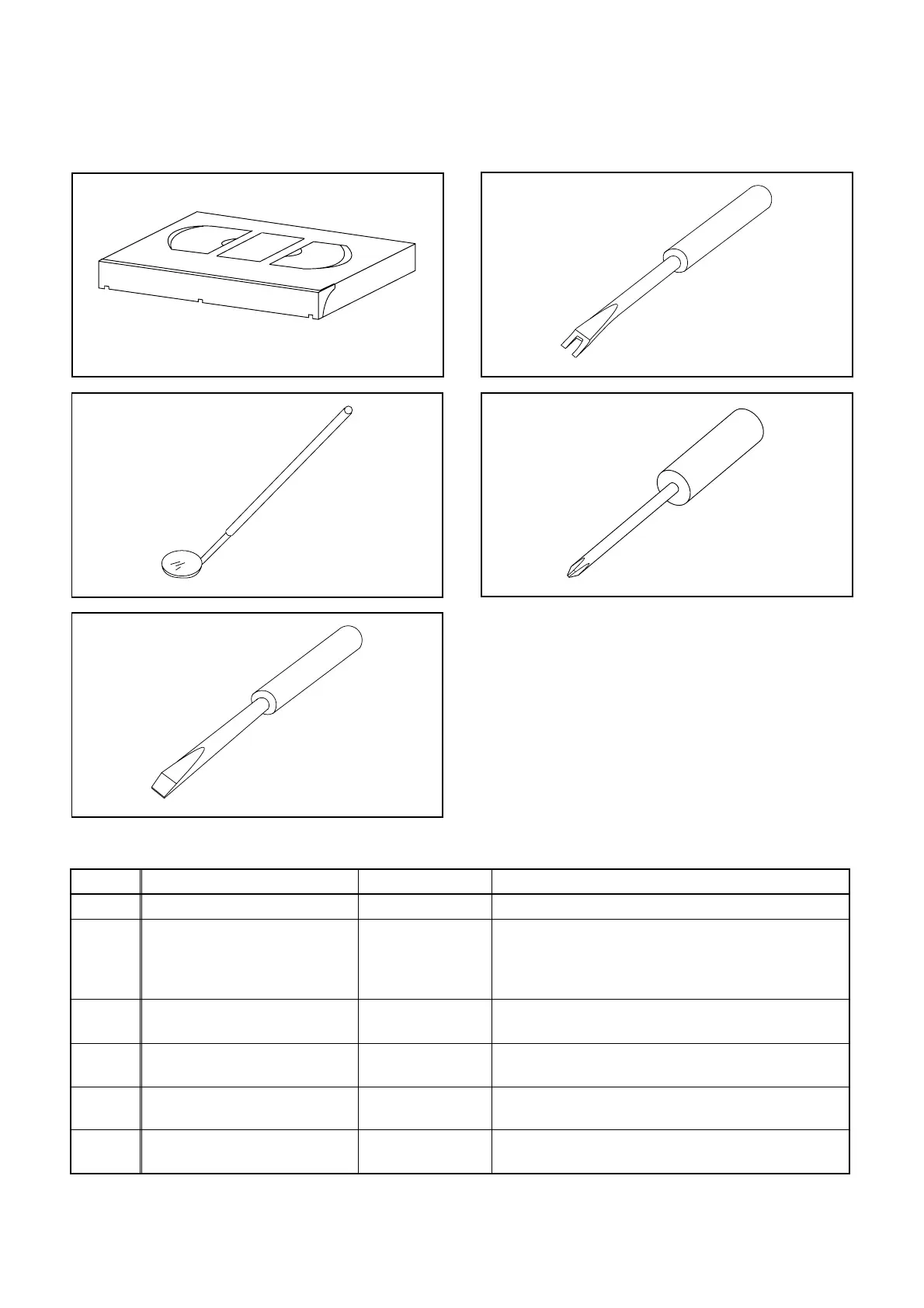

SERVICE FIXTURE AND TOOLS
J-1-1, J-1-2
J-2
J-3
J-4
J-5
Ref. No. Name Part No. Adjustment
J-1-1 Alignment Tape 9965 000 14514 Head Adjustment of ACE Head
J-1-2 Alignment Tape 9965 000 14516
(2 Head model)
9965 000 14515
(4 Head model)
Azimuth and X Value Adjustment of ACE Head /
Adjustment of Envelope Waveform
J-2 Guide Roller Adj. Screwdriver Available
Locally
Guide Roller
J-3 Mirror Available
Locally
Tape Transportation Check
J-4 Azimuth Adj. Screwdriver + Available
Locally
ACE Head Height
J-5 Flat Screwdriver - Available
Locally
X Value
