Philips VR550 - Deck Exploded Views

2-6-1 U29P4HSDEX
DECK EXPLODED VIEWS

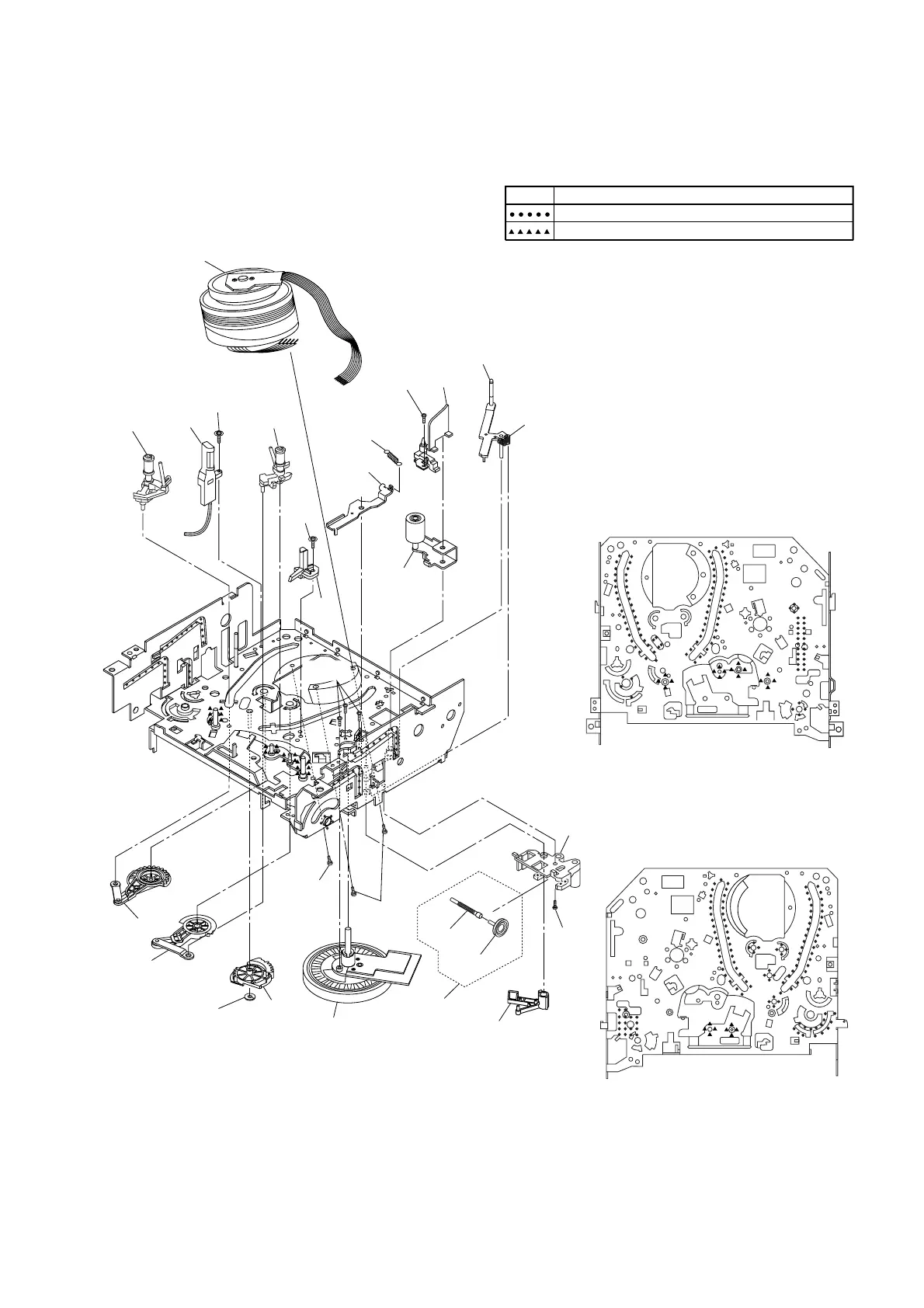

Deck Mechanism View 1
Mark Description
Floil G-684G or Multemp MH-D
(Blue grease)
SLIDUS OIL #150
Some Ref. Numbers are not in sequence.
B12
B492
B11
B571
B37
B126
B8
B121
L1450
L1450
B86
L1466
B501
Chassis Assembly
Top View (Lubricating Point)
Chassis Assembly
Bottom View (Lubricating Point)
L1051
B35
B410
B411
B494
B567
L1053
B74
L1467
B553
B10
L1191
B73
B9
B2
