Philips VR550 - Page 81

2-4-5 U29PHSDA
A
(S-2)
[7]
(L-12)
[49]
[50]

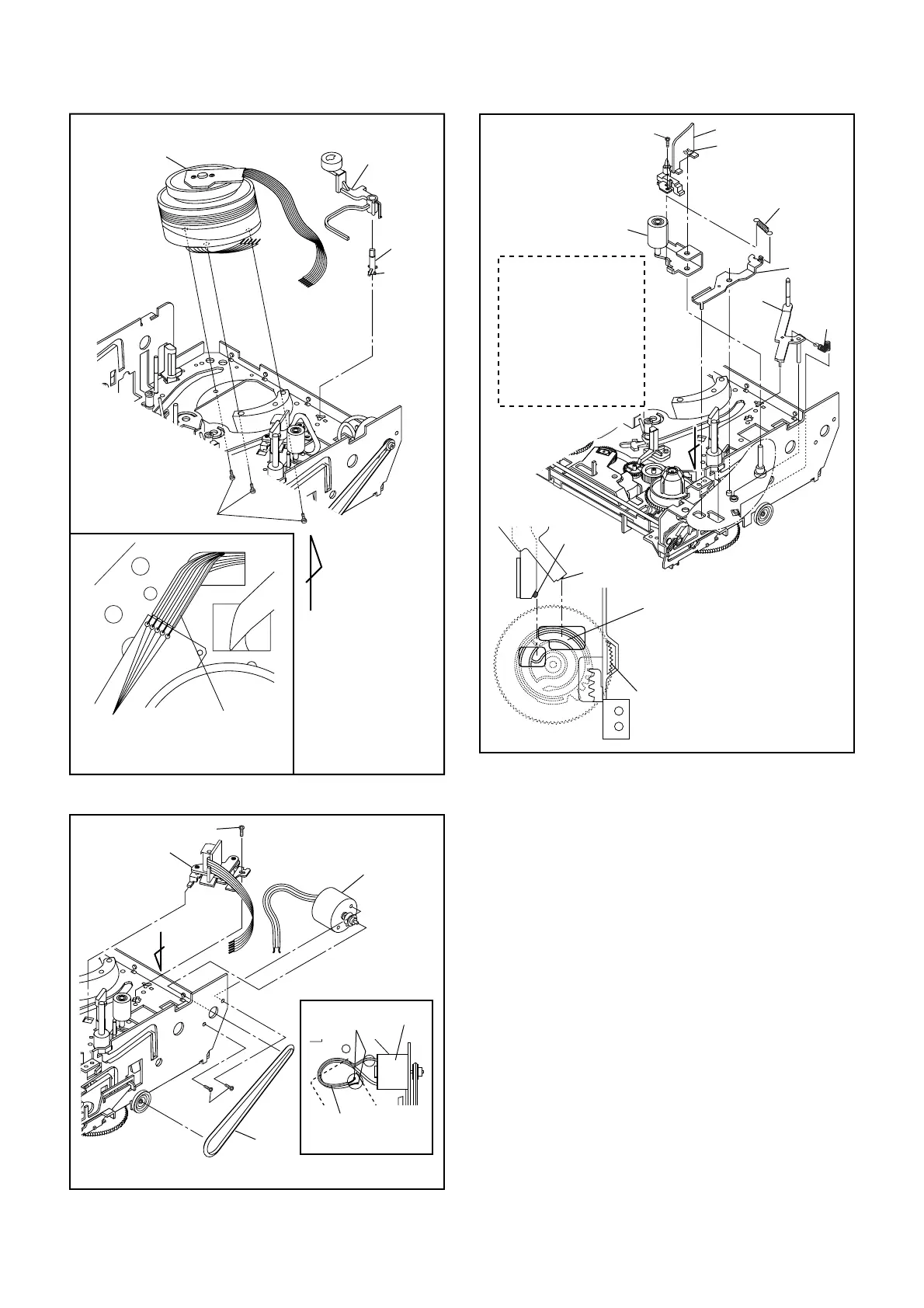

Fig. DM6H
View for A
Desolder
from bottom
Lead with
Red Stripe
[8]
[9]
(S-4)
(S-3)
LDG
Belt
View for A
Desolder
from bottom
Lead with White Stripe
A
[8]
Fig. DM7H
[11]
[13]
[12]
[10]
(L-4)
(P-3)
(P-2)
Fig. DM8H-1
Pin of [12]
Pin of [10]
Groove of [27]
View for A
When reassembling [10] and
[12], confirm that pin of [10]
and pin of [12] are in the
groove of [27] as shown.
[27]
Removal of [11]
1) Remove screw (S-4A).
2) Unhook spring (P-2).
3) Release (L-4) while
holding [12] with a
finger.
4) Loosen a finger
holding [12] and
remove [11].
A
(S-4A)
