www.phocos.com 7 | P a g e

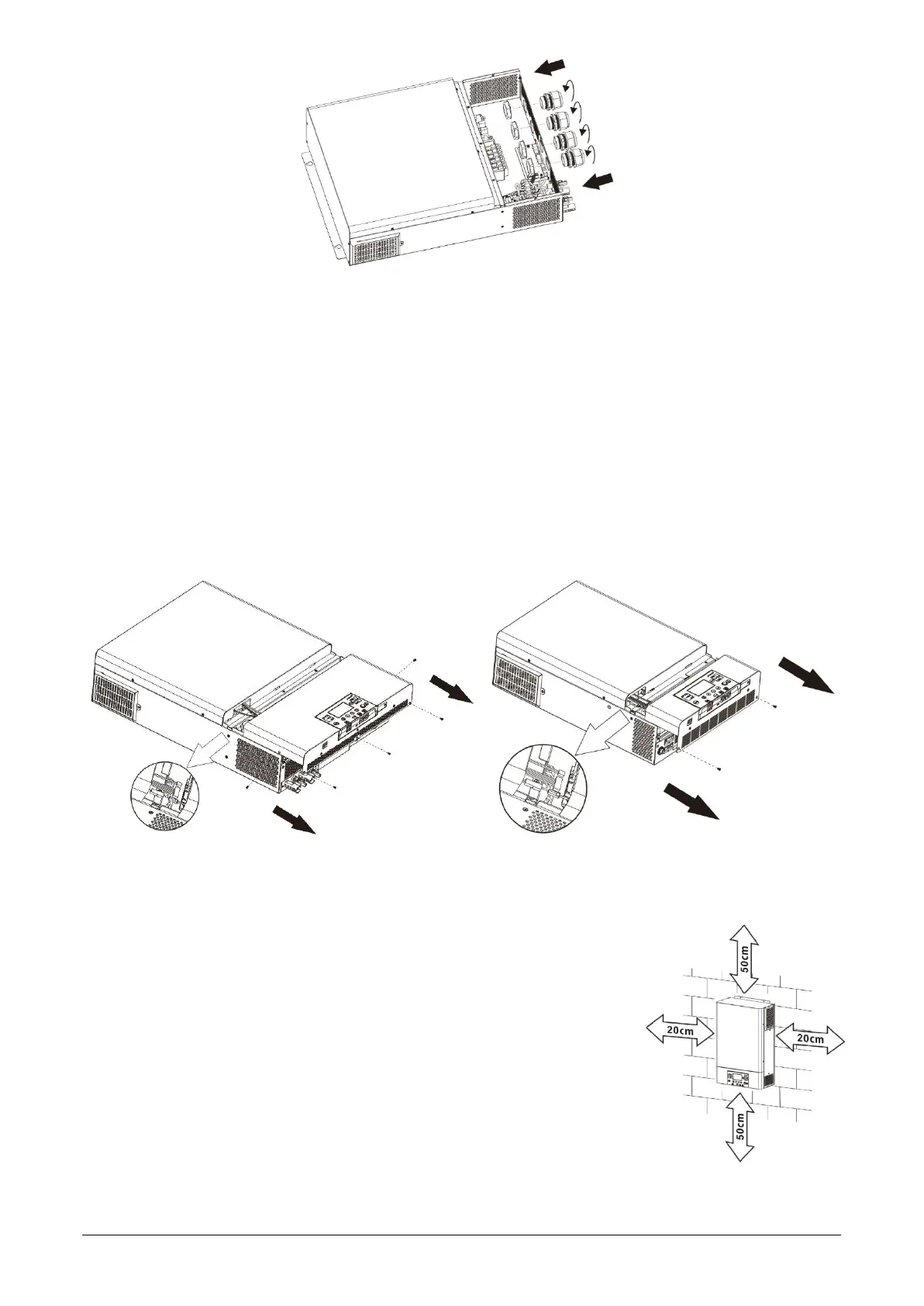

Fig. 3.2: Installation of cable glands (PSW-H-5KW-120/48V and PSW-H-8KW-230/48V)
1. Remove faceplate by removing 4 sc rews (Fig. 3, left).
2. Assemble b attery wiring extension box and mount in place of the faceplate (Fig. 3, right) with sc rews.
3. Install the 5 (PSW-H-3KW-120/24V, Fig. 3.1, right) or 4 ( PSW-H-5KW-120/48V and PSW-H-8KW-230/48V, Fig.
3.2) included cable glands.
5.3 Mounting the Unit
Before connecting all wirings, please take off bottom cover by removing five (PSW-H-5KW-120/48V and PSW-H-
6.5KW-120 /48V) or two (all other models) screws as shown below and carefully sliding the cover down. Before
removing the cover entirely, removethe 3 wire harne sses by t he ir connectors (Fig. 4).
PSW-H-5KW-120/48V, PSW-H-6.5KW-120/48V All other models
and PSW-H-8KW-230/48V
Fig. 4: Removal of bottom cover
WARNING: Only mount this unit on concrete or another solid non-combustible
surface capable of securely holding the weight of the unit.
• Install this inverter at eye level to ensure legibility of t he display
• Ensure the ambient t emperature is between -10 ~ 50 °C, 14 ~ 122 °F at all
times. In order to fulfill UL requirements, invertersmust be operated at an
ambient temperature of -10 ~ 40 °C, 14 ~ 104 °F.
• Avoid excessively dusty environments, direct sunlight, and c orrosive
environments such as salt y air.
• The unit is designed for vertical installationon a solid wall
