www.phocos.com 34 | P a g e

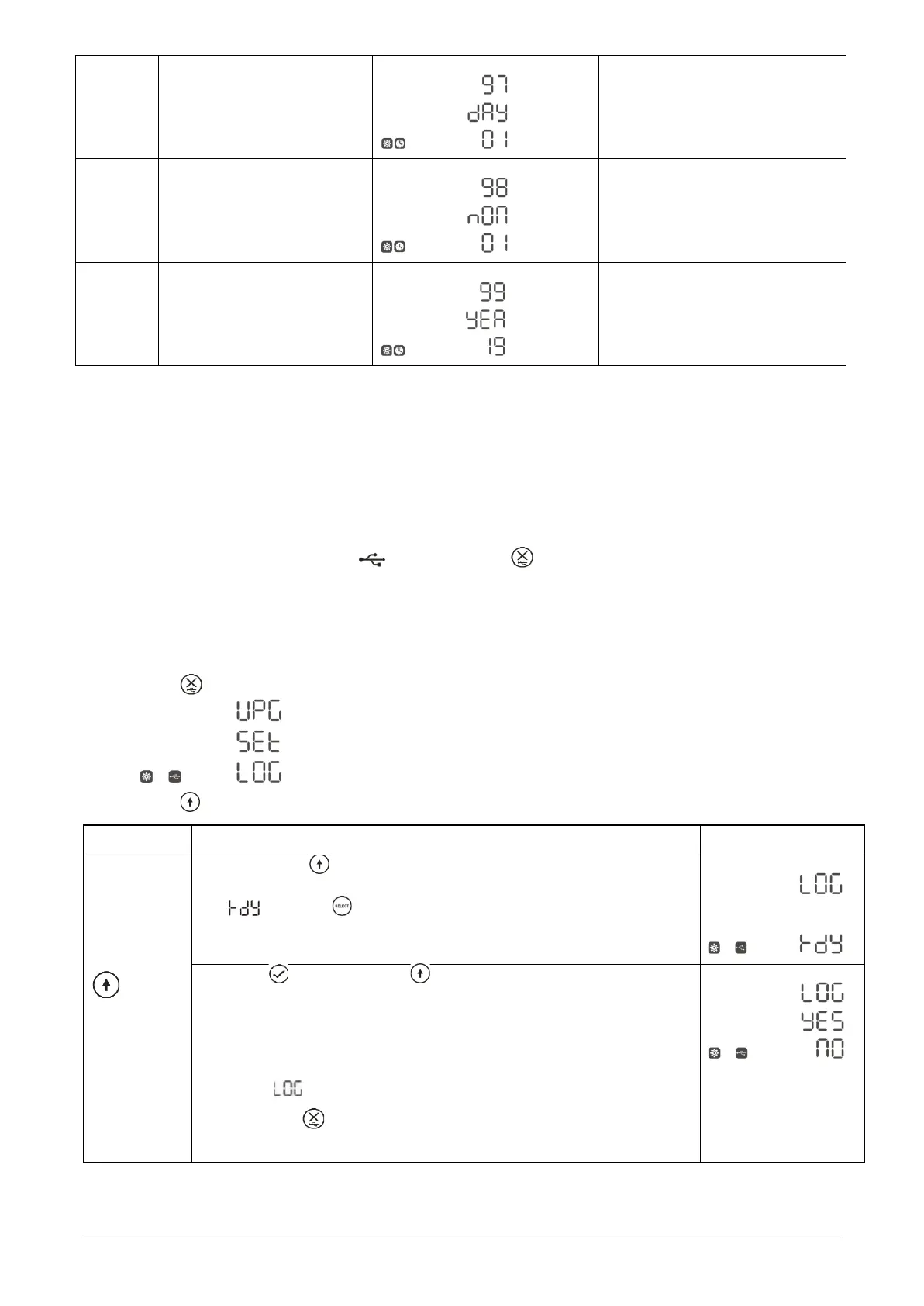

97 Date setting: day of month
Allows setting the current day of
the month.
Available values: day 01 ~ 31.
98 Date setting: mont h
Allows setting the currentmonth.
Available values: month 01 ~ 12.
99 Date setting: year
Allows setting the current year ( last
two digits: ex. 2019 = 19).
Available values: year 17 ~ 99.
8.5 USB and Timer Settings
There are three function keys on the display module to implement functions such as USB OTG, timer settings for the
output source prior ity and timer settings for the battery charger source priority.
USB Functionality
Insert a USB OTG storage device (disk)or a USB disk with a USB OTG microUSB adaptor (Micro-B male to USBType A
female, sold separately) into the USB port (see Fig. 2). Press for 3 seconds to enter USB function mode.
These functions are described in the table below.
Note: If no button is pressed within 1 minut e of starting this procedure, the screen it willautomatically return to the
default main view.
Follow these steps to select the various USB functions:
1. Press for 3 seconds to enter USB functionmode:
2. Press to ent er the following settings program:
Function Description Screen View
Export data
log
1. By pressing the unit prepares to export the internal data log to a
connected USB disk. Once the function is ready, the screen will display
. Press the button to confirm the selection.
2. Press to select “YES”or to return to the main screen wit hout
any change.
3. If“YES”was selected, Source LED 1 (see Fig. 19) will flash once e very
second during the process.
4. Once the data log copy to theUSB disk is complete, the screen will
show: and all LEDs will be lit.
5. Now pre ss to return to main screen. Otherwise, it will return to the
main view aut omatically after 1 minute.
Possible error messages for USB functions:
