Phoenix Contact ELR W3 500AC I Series User Manual

13
Hybrid motor starter with reversing function
ELR W3-.../500AC-...I
1. Short description
3-phase hybrid motor starter with reversing function ELR W3-.../500AC-...I with overload protection
combine four functions in one:
•Right contactor
•Left contactor
• Motor overload protection relay
• Emergency stop contactor up to category 3.
Thanks to the internal interlocking circuit and load wiring, wiring expense is reduced to a minimum.
97 96 95
MAN RES AUT E
Us
R
L
T
T
Err
PWR
L
R
Reset
max.
2,4 A
1/L1 3/L2 5/L3
2/T1 4/T2 6/T3
MAN
RES AUT
97 96 95
R
LU
S
E
ELR W3- 24DC/500AC-2I
0,18
2,4
0,87
1,63

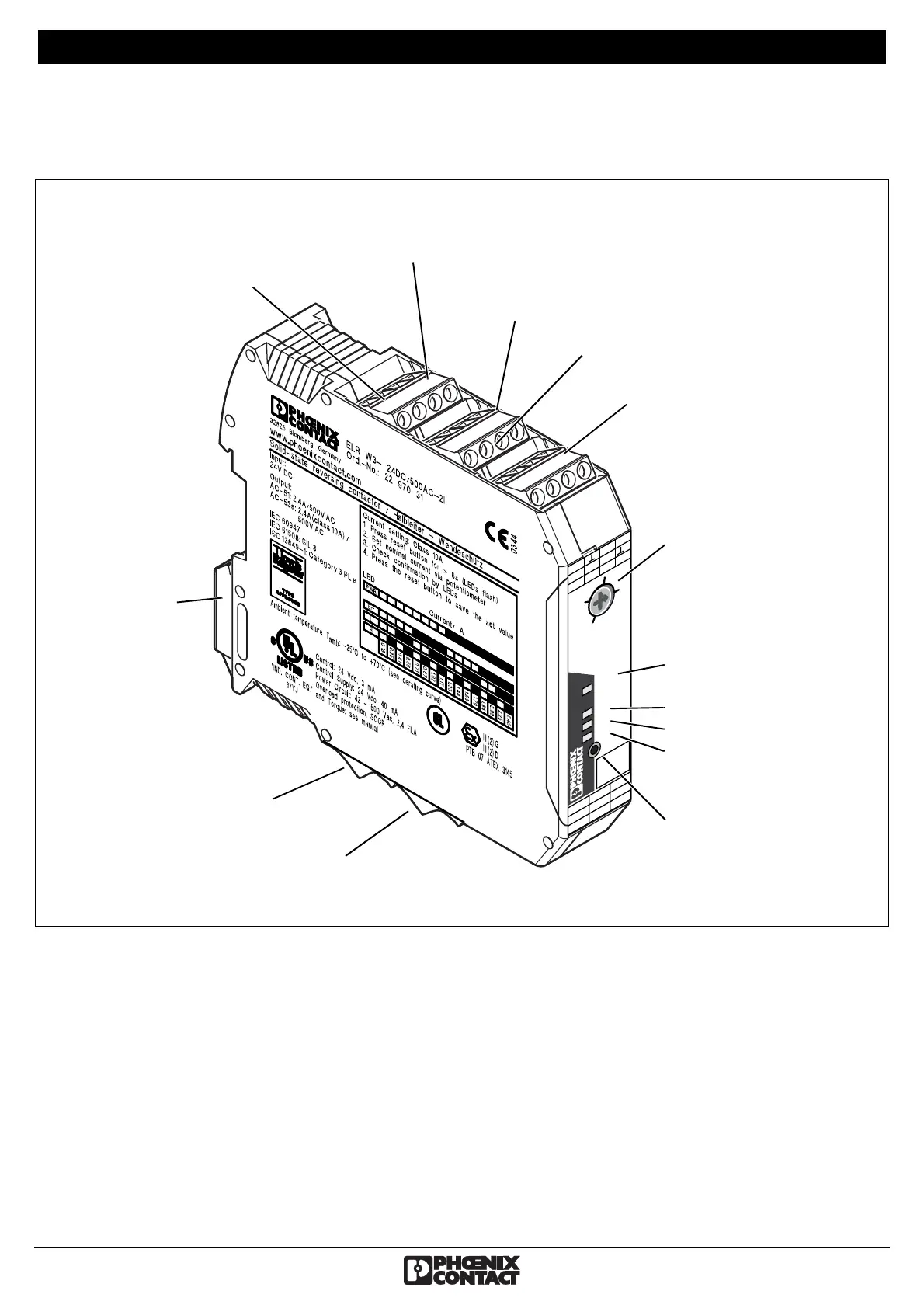

Fig.1
Metal latch for
fixing to the
mounting rail
3-phase
Output voltage
Input:
Control supply voltage
Control input:
Forward running/Reverse running
3-phase
Input voltage
E: Reference point
Forward running/Reverse running
T
Acknowledgment inputs
MAN, RES, AUT
Feedback
Reset button
Potentiometer for the
nominal current
parameterization
LEDs:
PWR Control supply
voltage
ERR Message/Error
L Reverse running
R Reverse running
ENGLISH

Phoenix Contact ELR W3 500AC I Series Specifications

General

Type	Solid-state relay
Rated Control Supply Voltage	24 V DC
Connection Method	Screw connection
Width	22.5 mm
Operating frequency	50/60 Hz
Protection class	IP20
Rated Operating Voltage	48 V AC ... 500 V AC
Operating temperature range	-25 °C to 60 °C
Storage temperature range	-40 °C to +85 °C
Relative humidity	95% (non-condensing)
Standards	IEC 60947-4-3
Input voltage	24 V DC
Output voltage	48 V AC ... 500 V AC
Output current	0.15 A ... 50 A (See derating curve)
Input voltage range	19.2 - 30 V DC
Input frequency range	47 - 63 Hz
Switching Mode	Zero voltage switch
