Manual Control
Joystick control accessories:
C-819.20 Analog Joystick
C-819.20Y Cable to connect one Joystick to two current-production
Mercury™ Class controllers. Each controller sees only one
axis and the states of that axis’ buttons

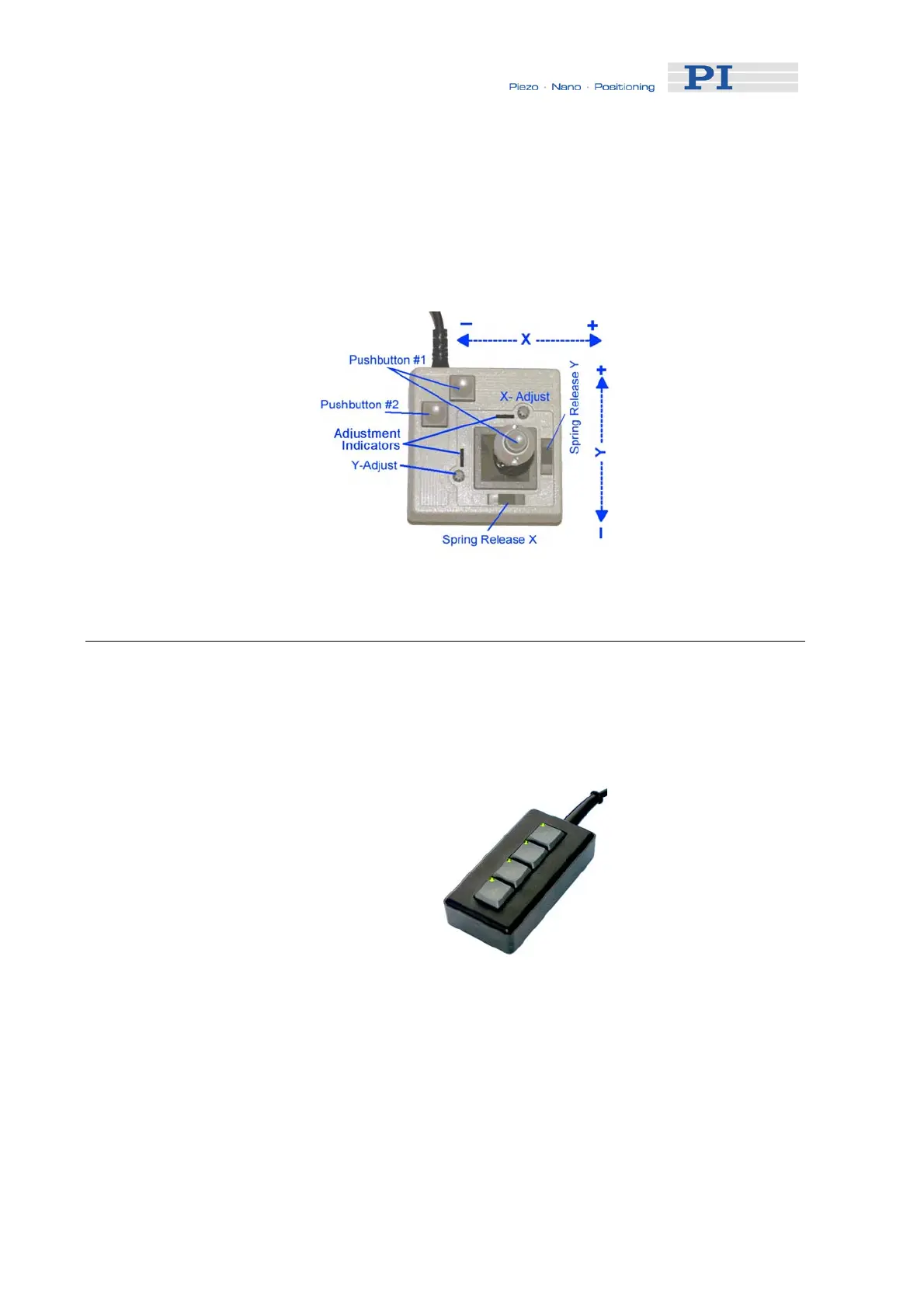

Fig. 11: C-819.20 Joystick for Mercury™ Controllers
4.2 Pushbuttons
The C-170.PB pushbutton box connects to the Mercury™ I/O connector. It allows
applying TTL signals to the input lines and displays the state of the output lines on
LEDs.
Fig. 12: C-170.PB Pushbutton box with LEDs for Mercury™ Controllers
www.pi.ws C-863 MS173E Release 1.2.7 Page 28
