Technical Data

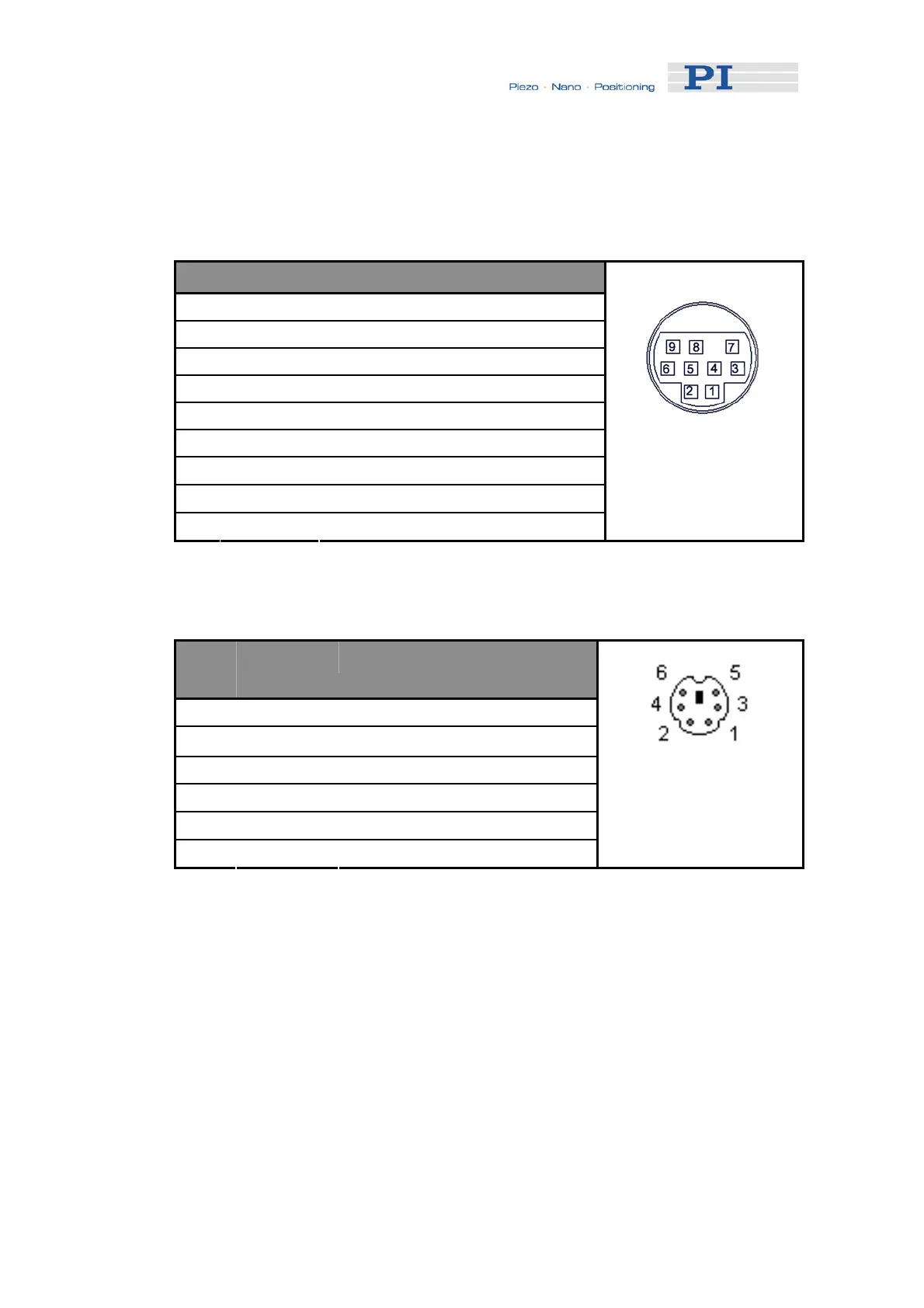

7.3.2 I/O Connector

Pin Signal Function

1 input Input 1 (analog 0 to +5V / digital, TTL)

2 input Input 2 (analog 0 to +5V / digital, TTL)

3 input Input 3 (analog 0 to +5V / digital, TTL)

4 input Input 4 (analog 0 to +5V / digital, TTL)

5 output Output 1 (digital, TTL)

6 output Output 2 (digital, TTL)

7 output Output 3 (digital, TTL)

8 output Output 4 (digital, TTL)

9 output Vcc (+5V)

Fig. 15: Mini DIN 9-pin I/O

connector

7.3.3 Joystick Connector

Signal

direction

Function

1 GND

2 n.c.

3 output Vcc (3.3 V)

4 input Input: Joystick analog 0 to 3.3 V

5 n.c.

6 input Input: Joystick Button #1

Fig. 16: Mini DIN 6-pin (PS2-

style) joystick connector

www.pi.ws C-863 MS173E Release 1.2.7 Page 36
