Technical Data

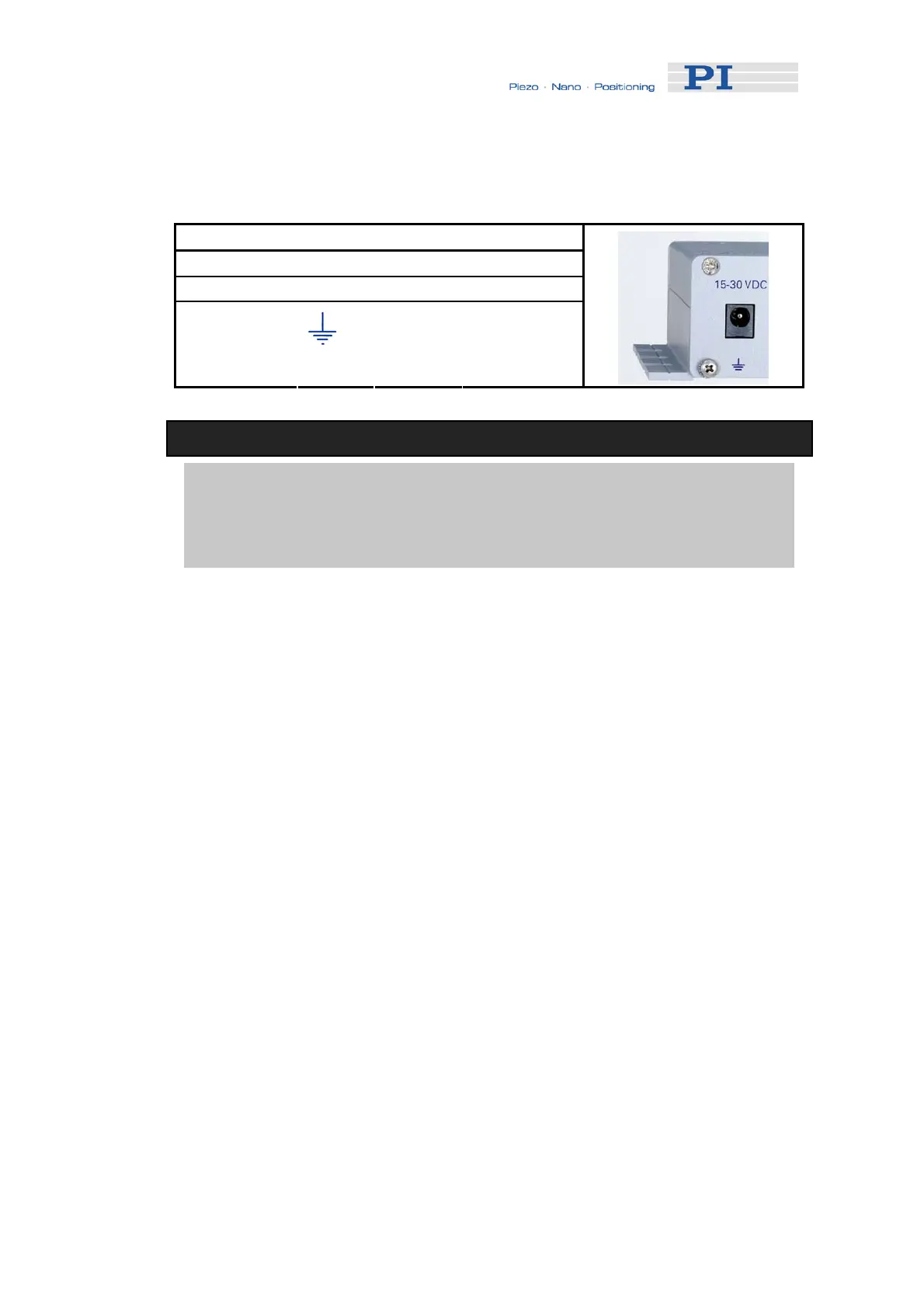

7.3.7 Power Connector & Grounding Screw
Power and protective ground connections are on the rear panel:
Connector Direction Function
Barrel connector: Center input 15 to 30 V DC
Barrel connector: Outside input Power GND
Grounding screw
(lower left)
- Protective ground
!
CAUTION—Maintain Compliance
Because the unit is not grounded over the power supply, a grounding screw is
provided at the lower left corner of the rear panel for connecting the metal
case to a protective ground. Connection to a protective ground is required for
compliance with applicable directives.
www.pi.ws C-863 MS173E Release 1.2.7 Page 39
