Fuel injection
9 - 85
9

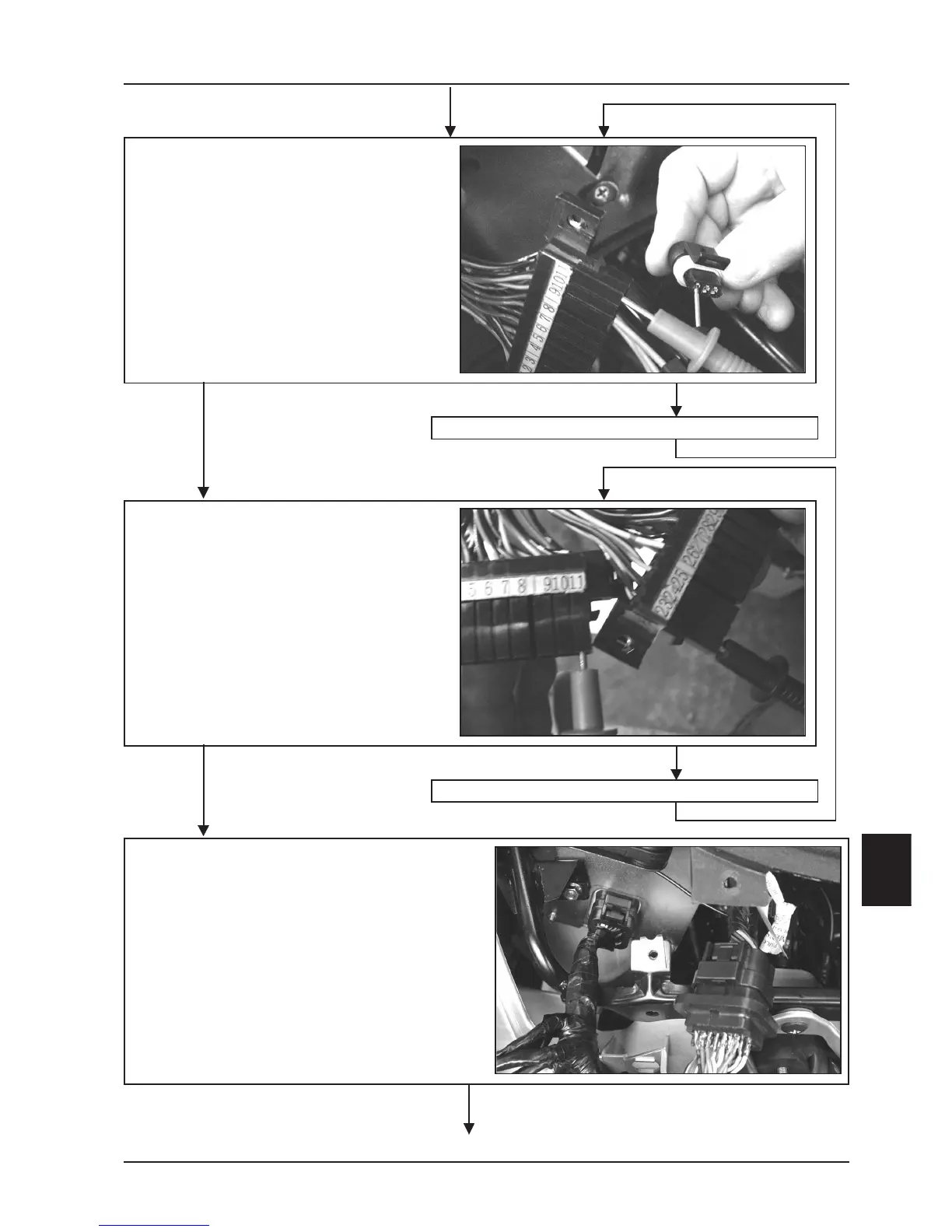

Disconnect the TPS connector.
Check the continuity between the connector
terminals and related pins on
the control unit side.
Light blue-green-22 = 0 Ω (continuity)
Brown-yellow-1 = 0 Ω (continuity)
Orange-light blue-11 = 0 Ω (continuity)
Reset or replace the fuel injection harness.
NO
YES
Check the earthing isolation of the
three circuit wires.
22-23 = Ω infinity (>1MΩ)
1-23 = Ω infinity (>1MΩ)
11-23 = Ω infinity (>1MΩ)
Reset or replace the fuel injection harness.
NO
YES
Connect the special tool 020481Y to
the control unit.
Set ignition to "ON" with switch in position "RUN"
and side stand raised.
To Next Page
