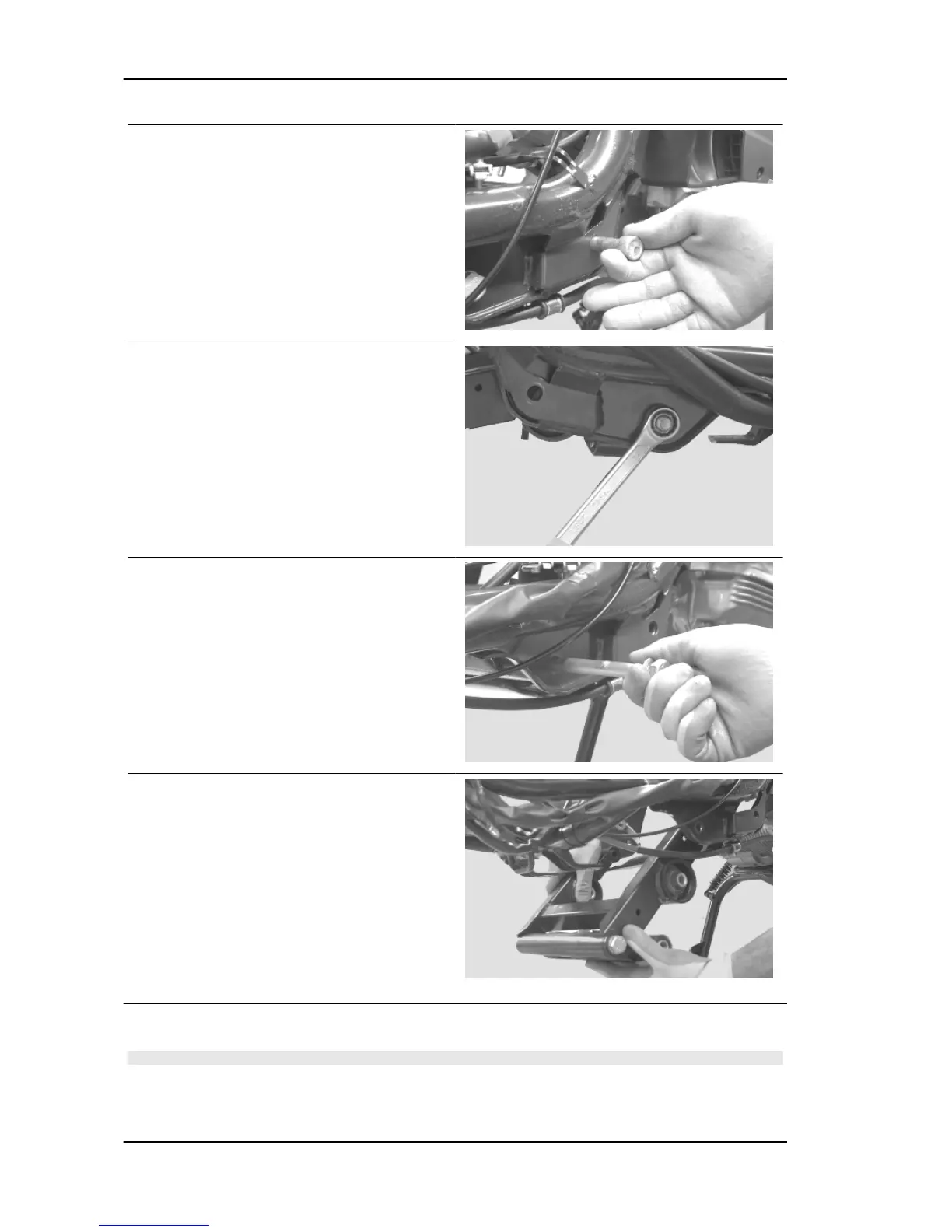

- Remove the pin from the silent bloc.
- Once the swinging arm on the engine side is re-
leased, release the swinging arm on the frame
side, operating on both sides.
- Loosen the nut and collect the washer.
- Remove the pin connecting the swinging arm to
the frame.
- Remove the swinging arm by pulling it forwards.
Overhaul
WARNING
THE SWINGING ARM CLEARANCE MUST BE CHECKED WITH THE ARM MOUNTED IN RIDING
CONDITIONS.
Suspensions Carnaby 125 - 200
SUSP - 210
