- Remove the side spoilers.
- Remove the footrest.

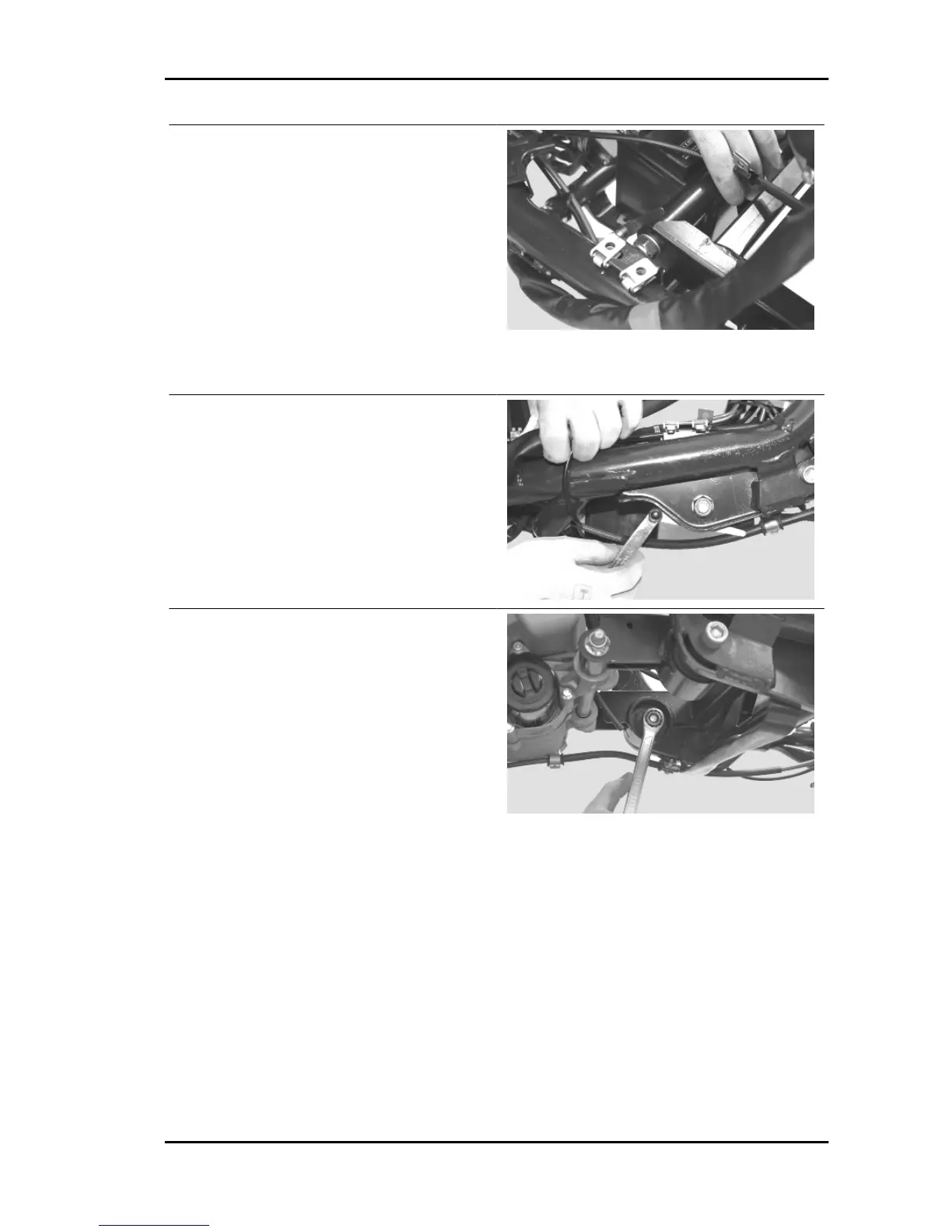

- Check the axial clearance between the two
swinging arms using a thickness gauge.
- If non-conforming values are detected, remove
the swinging arm and replace the Teflon spacer
bushings.
Characteristic
Axial clearance between the two swinging
arms
Min 0.6 Max 1.2 mm
- Check clearances between the arm on the frame
side and the frame using a thickness gauge.
- If non-conforming values are detected, remove
the swinging arm and replace the Teflon spacer
bushings.
Characteristic
Clearance between the bushing and the plates
Min 0.6 Max 1.2 mm
- To check the silent bloc, loosen the nut from the
inside, undo the screw and remove the silent bloc.
- Make sure it is not broken. If it does, replace it.
- To remove the roller casings, take out the Teflon spacer bushing and the internal spacer «A».
- Using an appropriate pin, remove the roller casings «B».
- Using an appropriate tool, set new roller casings, being careful to place the bearings with the O-rings
facing outwards.
- Once fitted, lubricate the ball cages with the recommended product.
Specific tooling
020115Y Ø 18 punch
020244Y 15 mm diameter punch
Recommended products
AGIP GREASE PV2 Grease for control levers on the engine
White anhydrous-calcium based grease to protect roller bearings; temperature range between -20 °C
and +120 °C; NLGI 2; ISO-L-XBCIB2
Carnaby 125 - 200 Suspensions
SUSP - 211
