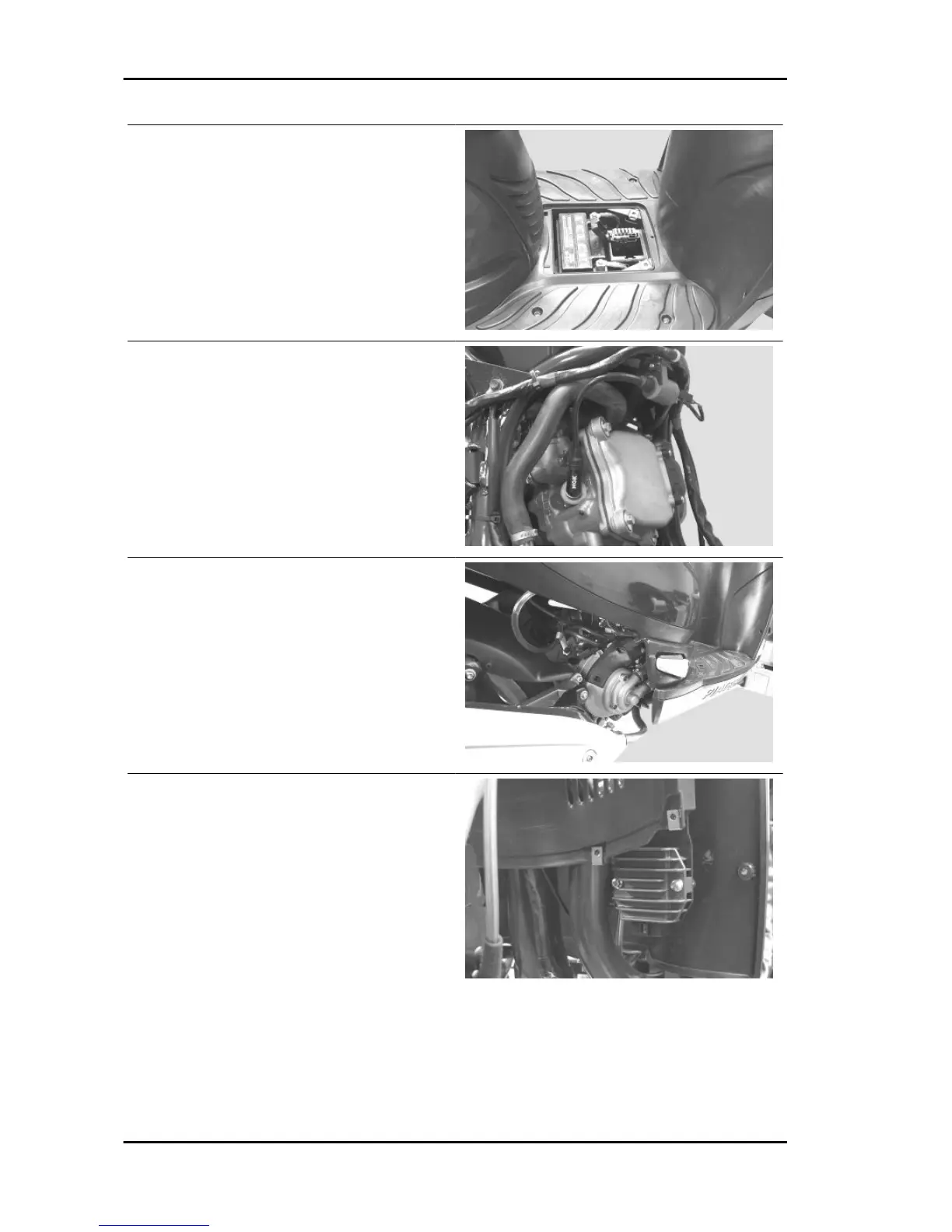

1.Battery - 2. Fuse terminal block: To get access
to these components, unscrew the flap on the foot-
rest and reach the battery compartment.
3. Spark plug - 4. Coil: Remove the inspection
cover to reach the spark plug and the coil.
5. Pick-up: To get access to the pick-up, operate
from the right side.
6. Voltage regulator: To get access to the voltage
regulator, remove the lower part of the wheel hous-
ing.
Electrical system Carnaby 125 - 200
