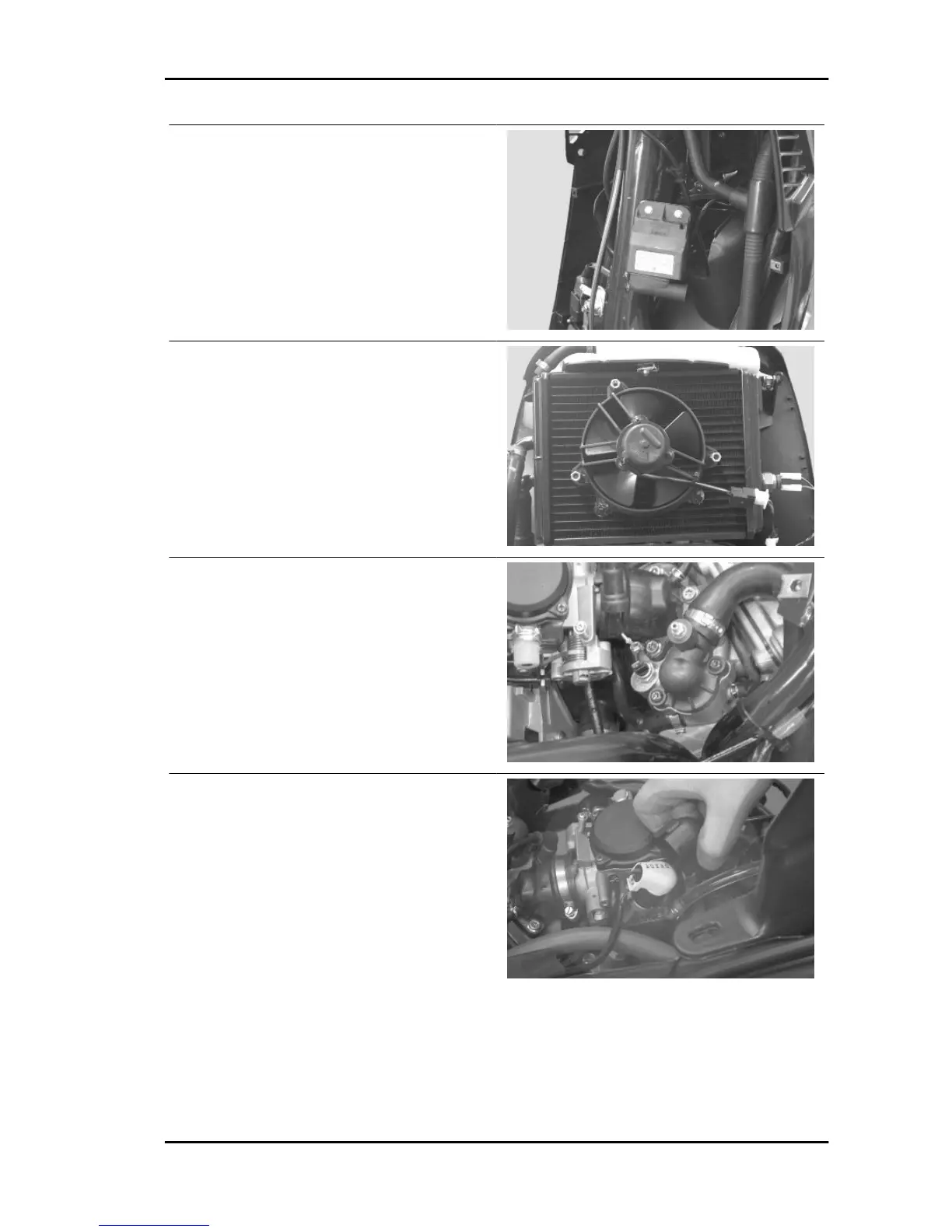

7. Control unit: To get access to the control unit,
remove the shield back plate.
8. Electric fan - 9. Thermoswitch: To get access
to the electric fan, remove the front shield.
10. Thermistor: To get access to the thermistor,
remove the helmet compartment.
11. Starter: To get access to the starter, remove
the helmet compartment.
