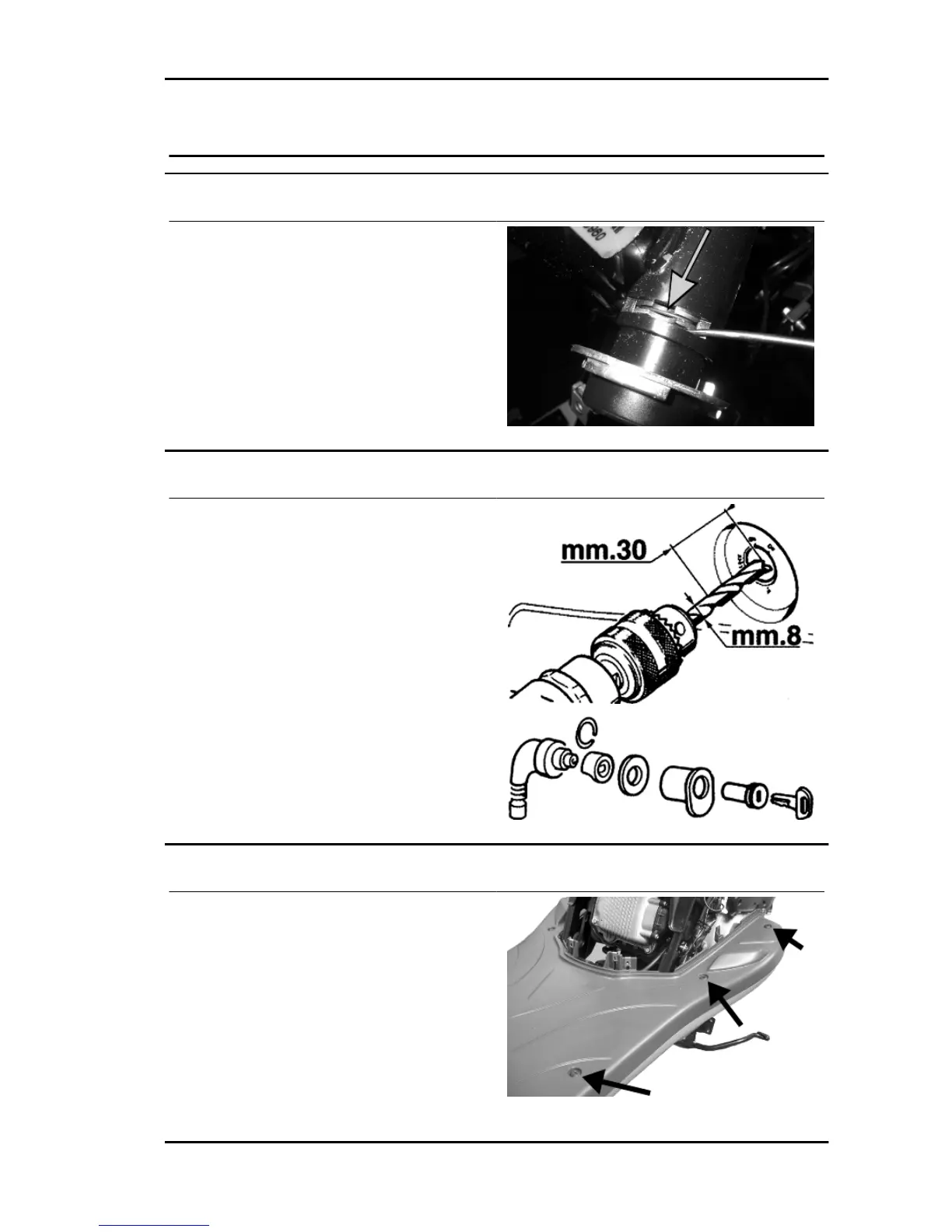

Removing the ignition key-switch when on *off*
• Remove the shield back plate
• Push the lock body until the stop spring does not
show grooves.
• Keep the lock body blocked with a screwdriver
and remove the spring with a pair of pliers.
• Take out the lock block.
Removing the ignition key-switch when on *lock*
Remove the shield.
- Remove the switch of the key switch.
- Make a hole on the block using a drill as shown
in the figure.
- Insert the wheel cylinder with the key and with the
anchoring tab facing down halfway on the lock
body taking care that the insertion phase of the key
is oriented matching "ON" (the only position that
enables the cylinder to get into the lock body); now
turn the key leftwards to "OFF" and at the same
time press until the cylinder is completely in.
Footrest
- Remove the side fairings
- Remove the shield back plate
- Remove the 6 screws shown in the photograph
Fly Chassis
CHAS - 107
