Gasket
Locking torques (N*m)
hub cap screws 24 - 26
Flywheel cover
Cooling hood

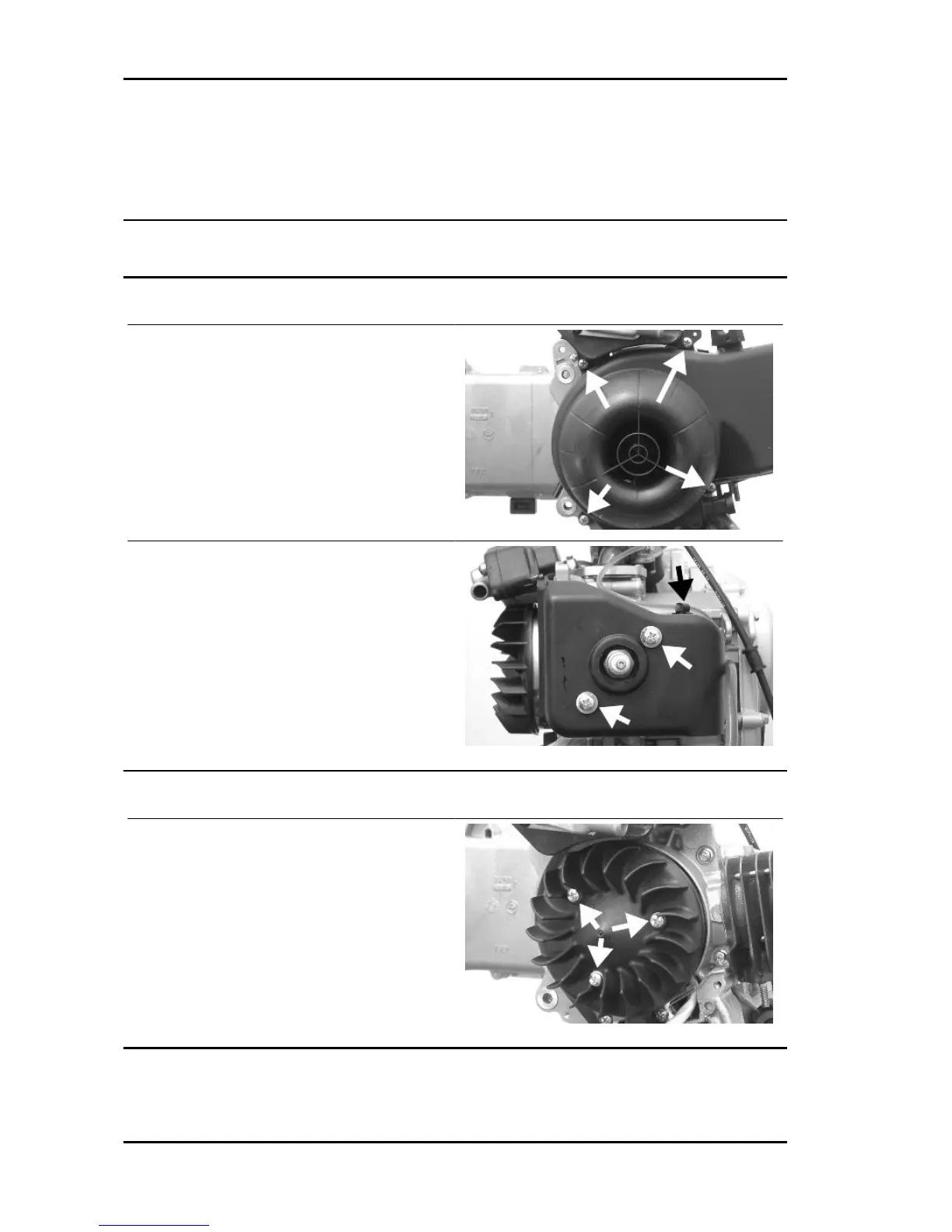

- Remove the four fixings shown in the figure.
- Remove the fan cover
- Remove the oil piping retention band from the
hood
- Remove the 2 screws shown in the figure
Cooling fan
- Remove the cooling fan by acting on the three
fixings indicated in the figure.
Engine Fly
ENG - 76
