- Remove the upper screw (2).
- Add 30 cc ±1 "Fork PG" oil (SAE 20W oil for
forks).
- Refit all components.
Locking torques (N*m)
Upper screw tightening torque 20 to 25 Nm Lower
screw tightening torque: 20 to 25 Nm

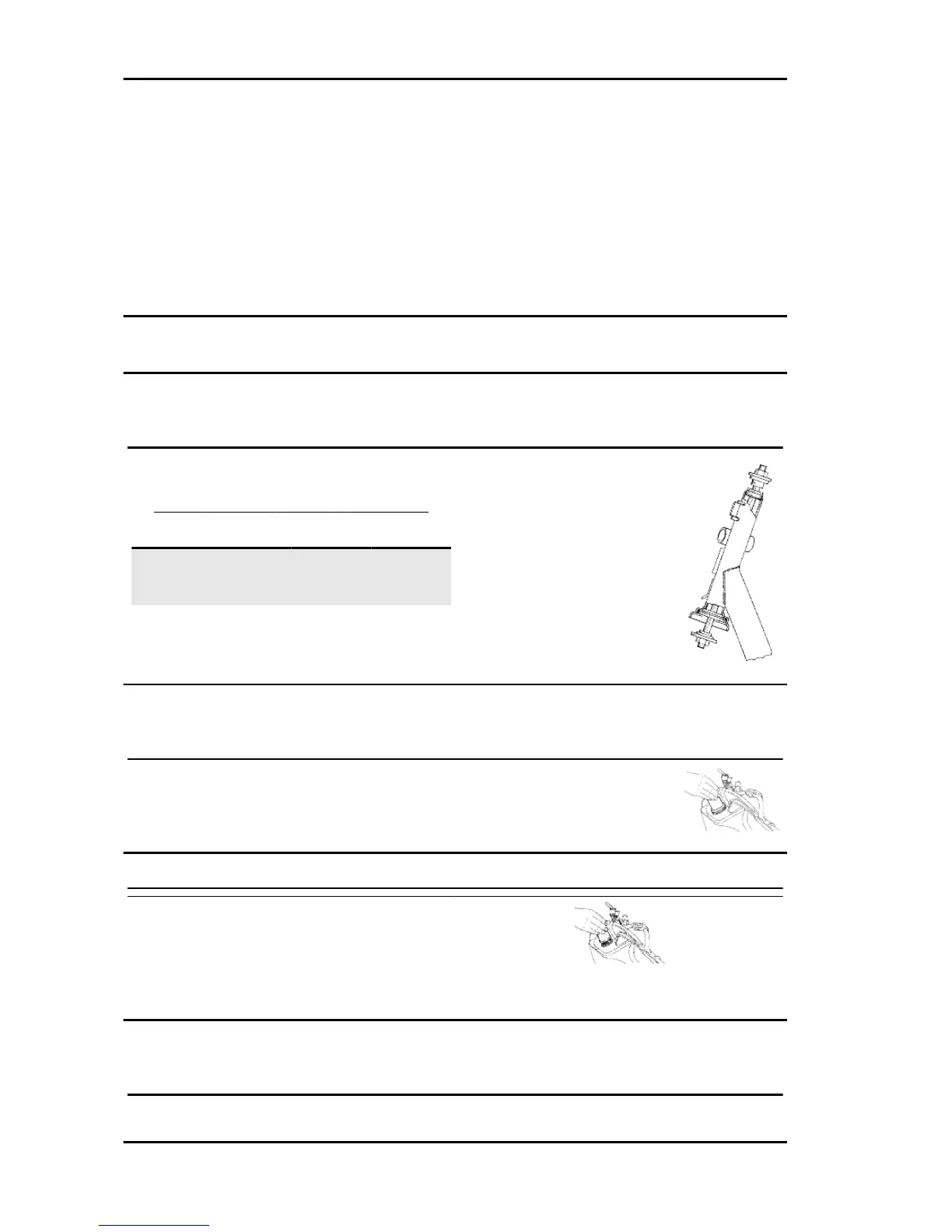

Steering column
Refitting
Lower and upper bearing races to frame
Lower and upper seating on the chassis
LOWER AND UPPER SEATING ON THE CHASSIS
Titolo Durata/
Valore
Testo Breve
(< 4000 car.)
Indirizzo
Immagine
Lower and
upper seating
on the chas-
sis
Steering bearing
Steering locking ring nut
Steering lock ring nut
Top washer and upper bearing housing
- Lubricate race and balls with Z2 grease.
- Tighten to the specified torque and then rotate
the tool through 80° - 90° in an anticlockwise di-
rection.
Removal
Lower and upper races from frame
Suspensions Fly
SUSP - 96

PIAGGIO Fly Specifications

General

Transmission	Automatic CVT
Front Brake	Disc
Rear Brake	Drum
Starter	Electric and kick
Engine Type	Single cylinder, 4-stroke
Cooling System	Air-cooled
Front Suspension	Telescopic fork
Front Tire	120/70-12
Fuel System	Carburetor
