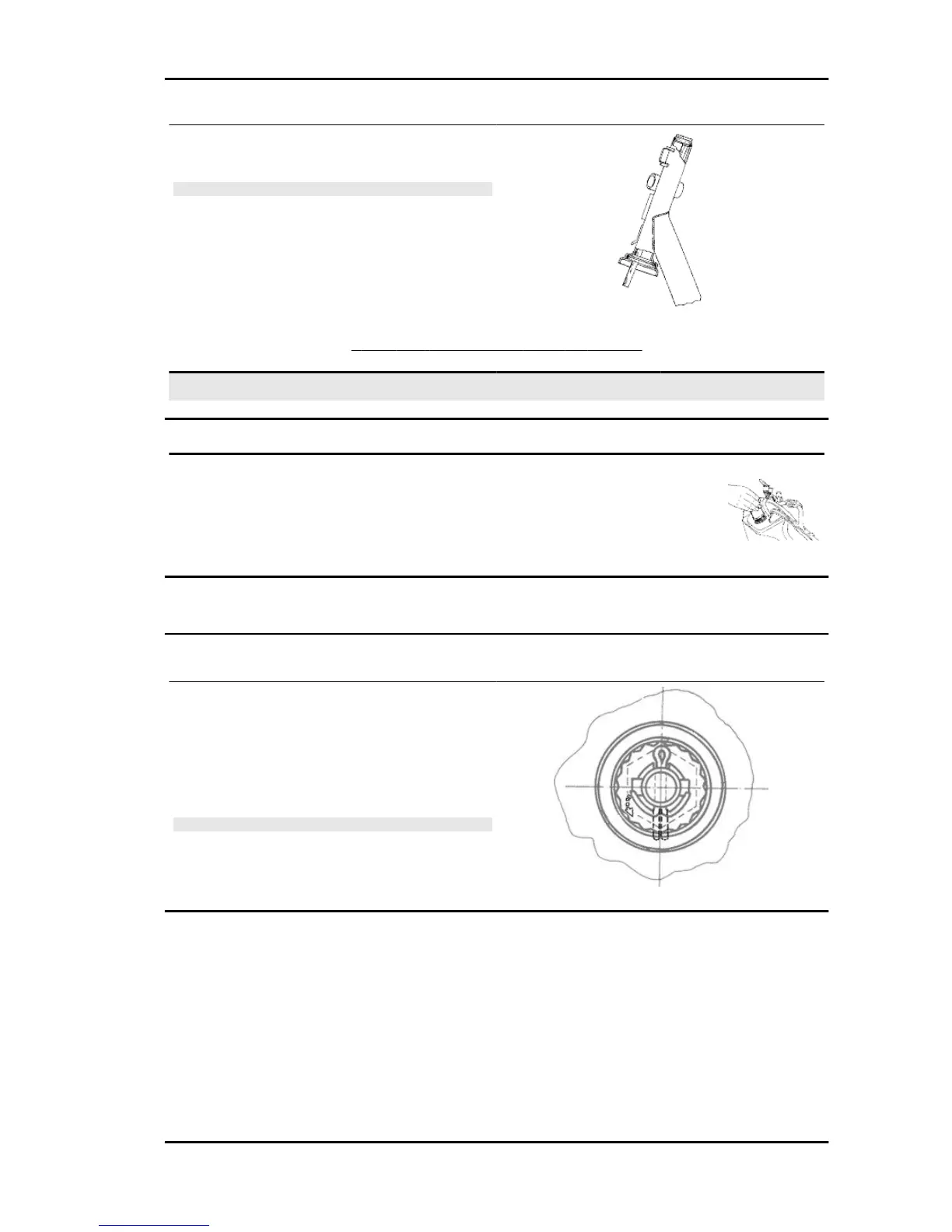

To remove the bearing seats from the chassis, use
the appropriate tool as shown in the figure.
N.B.
To remove the lower seating of the lower bearing just use a
screwdriver as a lever between the seating and the shell.
LOWER AND UPPER SEATING FROM THE CHASSIS
Titolo Durata/Valore Testo Breve (< 4000 car.) Indirizzo Immagine
Lower and upper seating from
the chassis
Top washer and upper bearing housing
After removing the upper seating, tilt the vehicle to
a side and take out the steering tube making sure
mudflaps have been removed and the calliper dis-
connected.
Rear
Removing the rear wheel
- Use a screwdriver as a lever between the drum
and the cover.
-Straighten the split pin and remove the cap.
-Remove the wheel acting on the central fixing
point.
WARNING
-ALWAYS USE NEW SPLIT PINS FOR REFITTING.
Fly Suspensions
SUSP - 97
