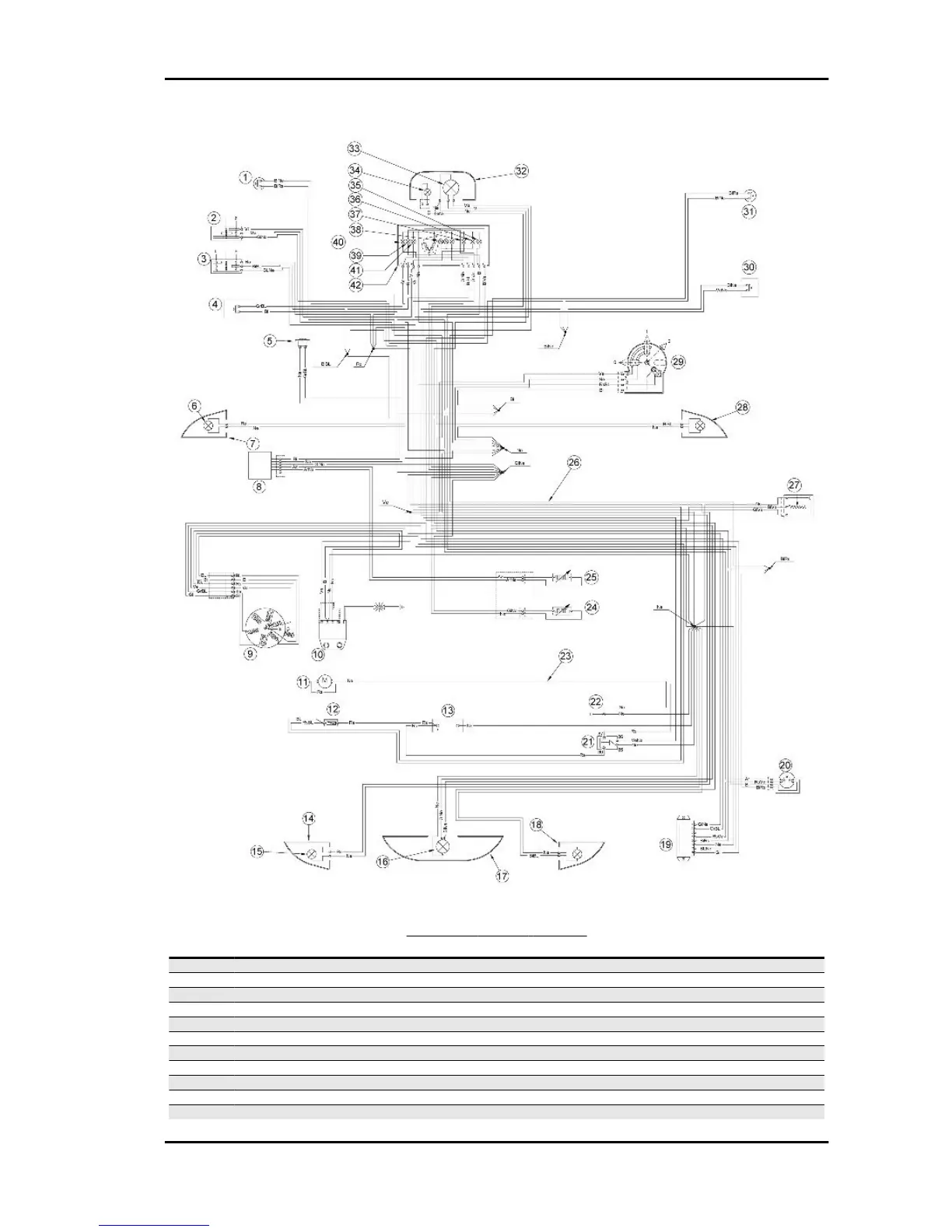

ELECTRICAL SYSTEM DIAGRAM
Specification
Desc./Quantity
1 Stop button on rear brake
2 Light switch
3 Turn indicator switch
4 Horn button
5 Horn
6 Front turn indicator bulbs Front turn indicator bulbs 12V-10W x 2
7 Front left turn indicator
8 Heater control device
9 Magneto flywheel
10 Electronic ignition device
11 Starter motor
Fly Electrical system
ELE SYS - 43

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the PIAGGIO Fly and is the answer not in the manual?

PIAGGIO Fly Specifications

General IconGeneral
TransmissionAutomatic CVT
Front BrakeDisc
Rear BrakeDrum
StarterElectric and kick
Engine TypeSingle cylinder, 4-stroke
Cooling SystemAir-cooled
Front SuspensionTelescopic fork
Front Tire120/70-12
Fuel SystemCarburetor
